V-Mount Weigh Module Assembly Kit

Whether for building industry tanks, coal bunkers or tanks for liquids and gases, the V-Mount weigh module has the specific properties required and is available for all applications.

All the weighing modules, whether galvanized or made of stainless steel, are fitted with integrated stay rods to absorb the horizontal forces, such as typically occurring with wind loads. Anti-liftoff devices are included in the design as an accessory and can be easily fitted by the user when required.

Load cell Options:

Laumas COK

• NICKEL-PLATED STEEL CONSTRUCTION
• COMBINED ERROR < +/- 0.02 %
• PROTECTION RATING IP68
• ACCURACY CLASS C3 (OIML R60)

Laumas COL

• STAINLESS STEEL CONSTRUCTION
• COMBINED ERROR < +/- 0.017% (0.013% C4)
• PROTECTION RATING IP68
• ACCURACY CLASS C4 (OIML R60)

Berman BRP

• STAINLESS STEEL CONSTRUCTION
• COMBINED ERROR < +/- 0.03 %
• PROTECTION RATING IP68
• ACCURACY CLASS C3 (OIML R60)

Max Powercell MP-RP

• STAINLESS STEEL CONSTRUCTION
• COMBINED ERROR < +/- 0.03 %

• PROTECTION RATING IP68
• ACCURACY CLASS C3 (OIML R60)

Max Powercell MP-LCQ

• ALLOY STEEL CONSTRUCTION
• COMBINED ERROR < +/- 0.03 %
• PROTECTION RATING IP68
• ACCURACY CLASS C3 (OIML R60)

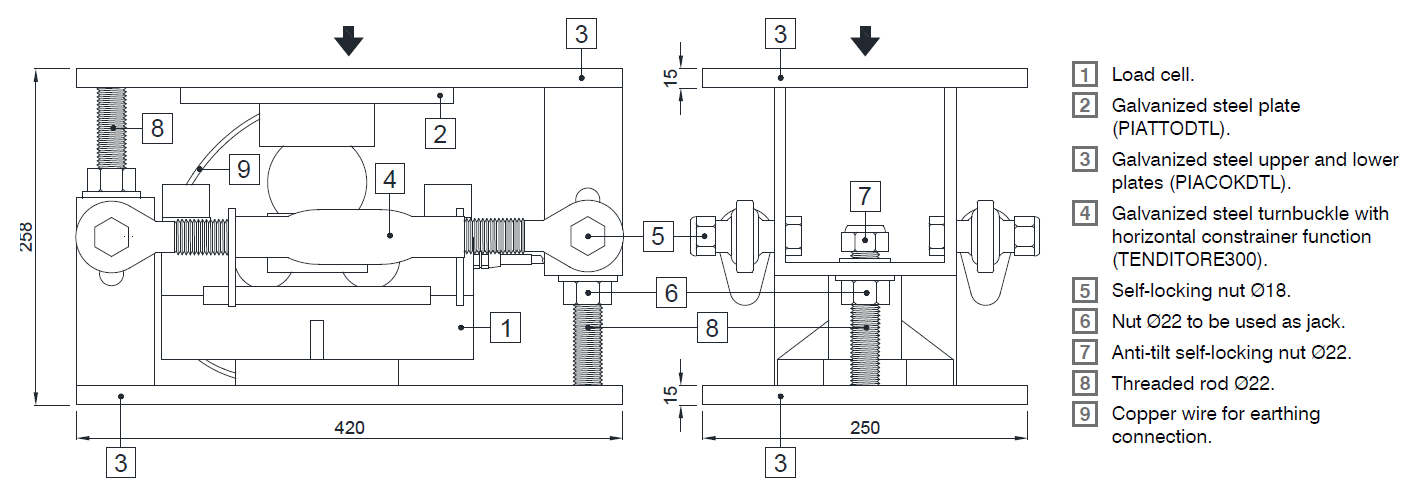

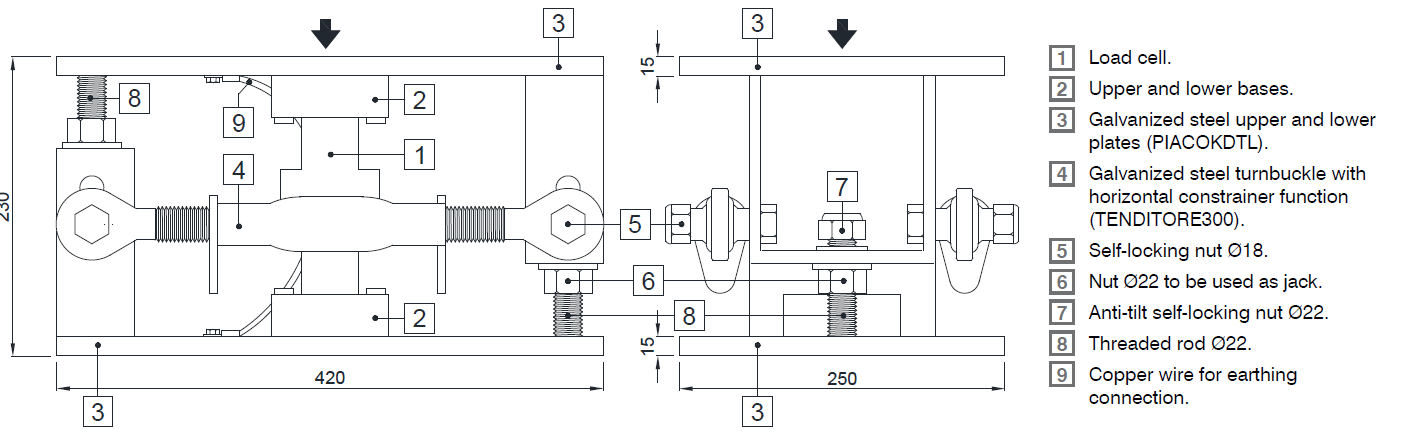

Rocker Column Module Dimensions (mm)
