WTBT-BR Weighing TransmitterWeightech WTBT-BR Complete Bluetooth Weighing Transmitter for Livestock, IP65, 2 RS232 Ports
- Description
- Additional Information
- 01 / 05Weightech WTBT-BR Complete
Bluetooth weighing transmitter with battery, ear-tag reader port and display port.
The Weightech WTBT-BR Complete (SKU wtbt, factory code 504335) reads up to four load cells and sends the weight by Bluetooth to an Android phone running the free calibration and weighing apps. It has a built-in rechargeable battery, a cattle weighing function and two RS232 serial ports for an ear-tag reader and a remote display.
4Load cells connectedIP65Polycarbonate housing2× RS232Ear-tag reader and remote display4400mAhInternal 12 VDC battery02 / 05FeaturesWhat the transmitter does.
01Two RS232 serial ports
Serial 1 connects an ear-tag reader. Serial 2 connects the DRWT-75, DRWT-125 and DRWT-200 remote displays and the WT-Display.
02Cattle weighing function
A cattle scale function for livestock weighing, with auto-zero and adjustable digital filters.
03Three status LEDs
Three LEDs indicate low charge (battery), Bluetooth connection and calibration.
04Free Android apps
Calibrate and configure the transmitter with the free WT-BT-BR Cal and Android apps.
03 / 05Which model is this?Complete model, 504335.
This SKU is the WTBT-BR Complete (code 504335), with an internal rechargeable 12 VDC 4400 mAh battery and a charger (100–240 VAC input, 12.6 VDC 1 A output). The WTBT-BR Compact (code 506071) is a different, smaller model powered from an 8–13 VDC supply and is not this product.
01Typical use

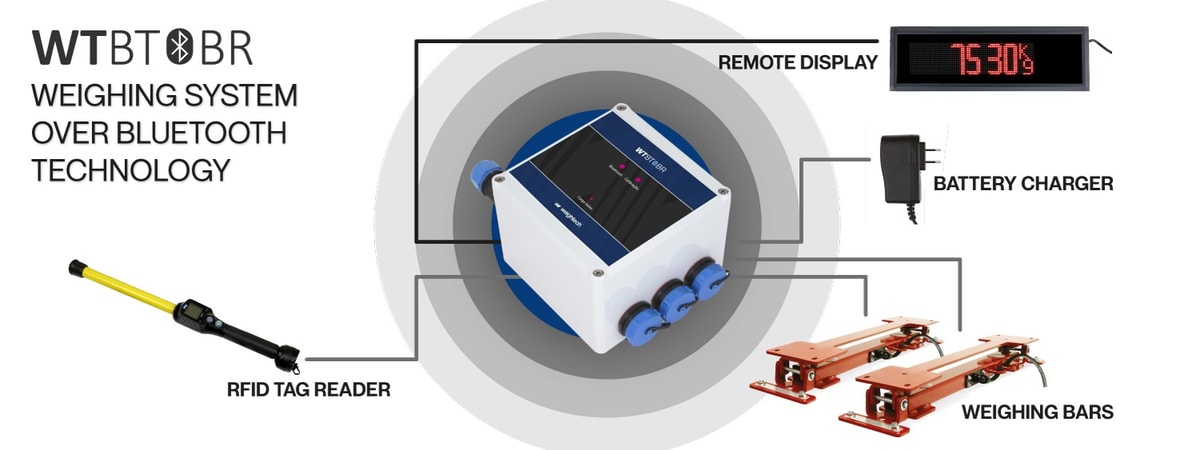

Cattle scales with an RFID ear-tag reader and a remote display, with the weight also sent over Bluetooth to a phone, as in the datasheet's application example. Also used where cabling between load cells and the data device is difficult, such as farms, road yards and on-board weighing.
04 / 05Technical dataWTBT-BR Complete specifications.
Brand / model Weightech WTBT-BR Complete SKU / factory code wtbt / 504335 Load cells Up to 4 Load cell connector 7-pin female: I+, I-, E-, S-, S+, E+, BLD A/D input range -0.1 to 4.0 mV/V Excitation voltage 5 VDC Conversion rate 30 to 480 samples per second Internal resolution 1/1,000,000 Serial ports 2 x RS232: Serial 1 (ear-tag reader), Serial 2 (remote displays), 4-pin RX/TX/GND Wireless Bluetooth, to Android apps Internal battery Rechargeable, 12 VDC 4400 mAh Charger Input 100-240 VAC, output 12.6 VDC 1 A, 7-pin connector Internal electronics supply 8-13 VDC Indicators 3 LEDs: low charge, Bluetooth connection, calibration Operating temperature -10 to +40 C Protection IP65 Housing material Polycarbonate Dimensions 120 x 122 x 88 mm (4.7 x 4.8 x 3.4 in); 152 mm over cable glands Mounting holes 90 x 110 mm 05 / 05Part number and FAQOrder code.
Product Order code Weightech WTBT-BR Complete Bluetooth weighing transmitter (factory code 504335) wtbt What do the LEDs show?
Low charge (battery), Bluetooth connection and calibration.
Does it have a battery?
Yes. The Complete model has an internal rechargeable 12 VDC 4400 mAh battery and comes with a charger.
What can I connect to the serial ports?
Serial 1 takes an ear-tag reader; Serial 2 takes remote displays such as the DRWT-75, DRWT-125, DRWT-200 and WT-Display.

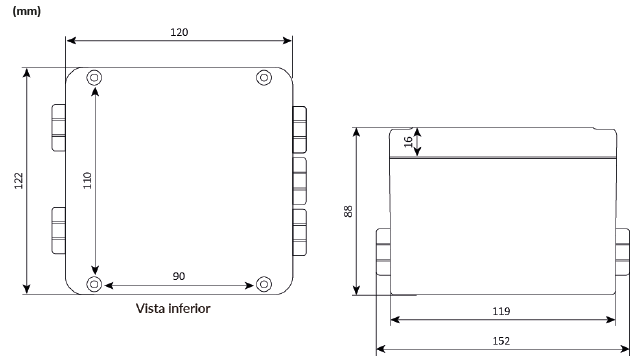

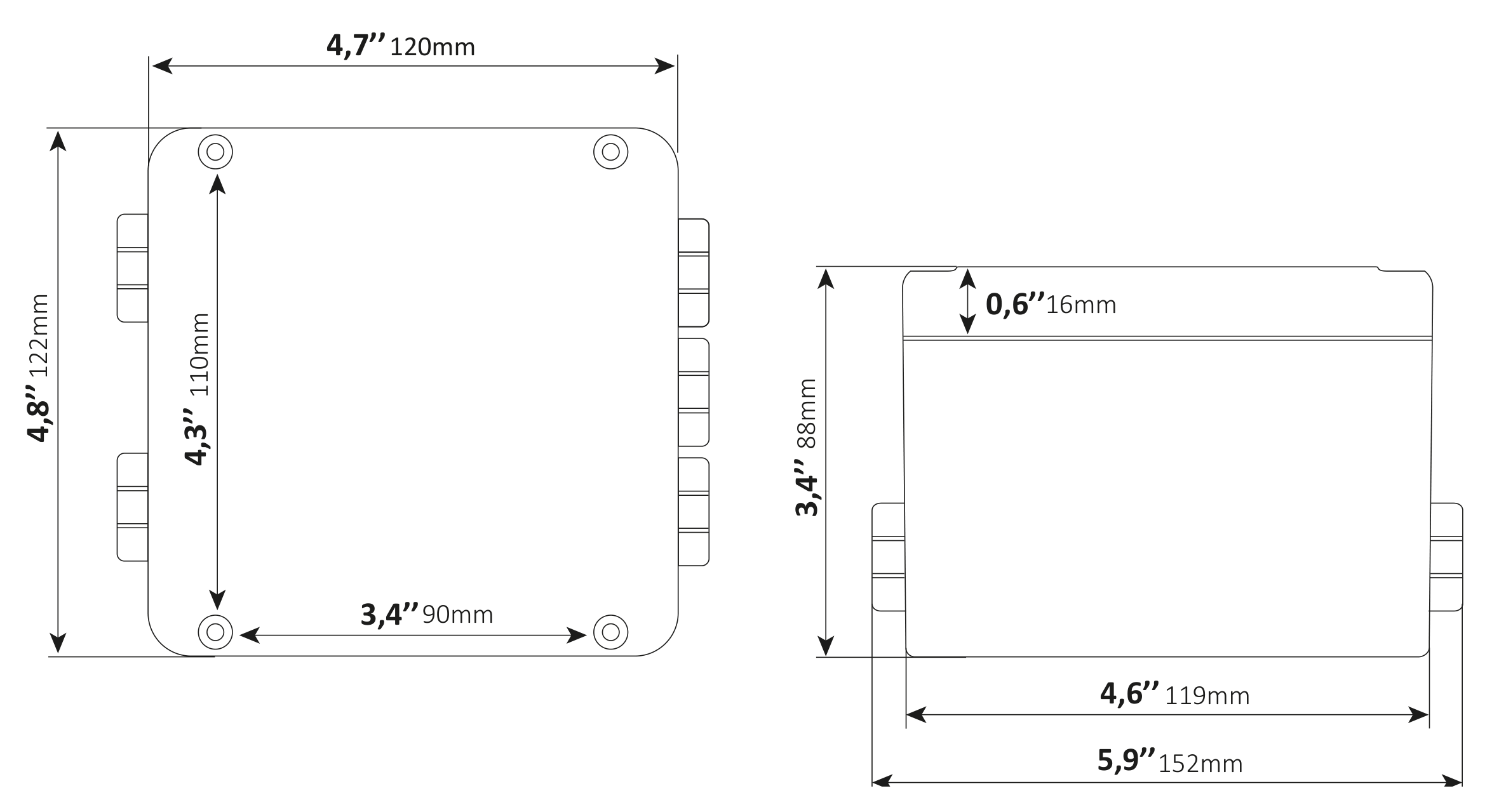

DIMENSIONSOutline dimensions.
