Dinamica Generale 969-0219 Axle Weigh Bar 2.875" to 1.749"

SKU
22219
$746.00
  • Rated Mobile Load: 13228 Lbs. / 6000 Kg @ 0.57 mV/V
  • Cable length: 29.5 ft. / 9 m
  • Capacity: 20879 KG @ 2mV/V
  • Cable Connector: Standard Wires
  • Replacement load cell for Weigh-Tronix 21960-0079 load cell
  • Overall Diameter: 2.875" necked down to 1.749"
  • Overall Length: 22.25"
  • Application: Spindle, Axle, Mobile
OR
  • Description
  • Additional Information

  • Mixer and Feeder Mobile Axle Load Cell DG 969-0219

    • High-quality alloy steel: Dinamica Generale's special thermal treatment makes it stable for years
    • PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
    • Aluminum protection: strain gauge protected against impact (mobile models)
    • Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
    • Temperature compensation as an option
    • Custom mechanical design available on request
    • IP68 Protection rate
    • Replacement load cell for Weigh-Tronix 21960-0079 load cell

    Applications

    Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.

    DG 969-0219 PDF Data Sheet

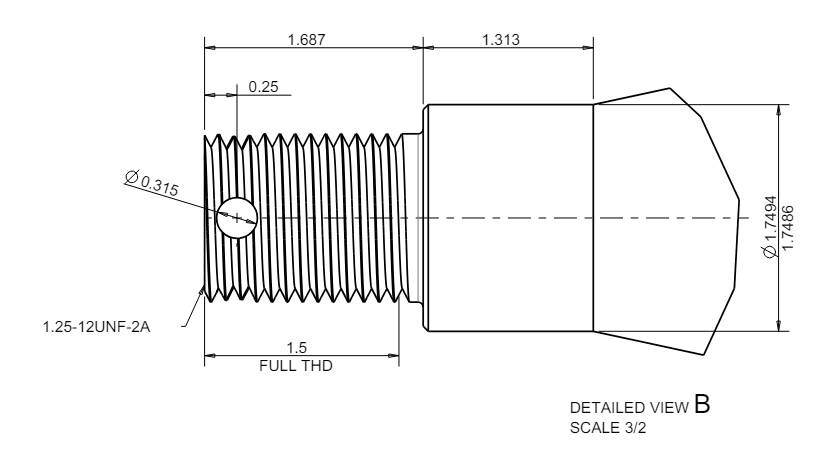

    969-0547-measurements

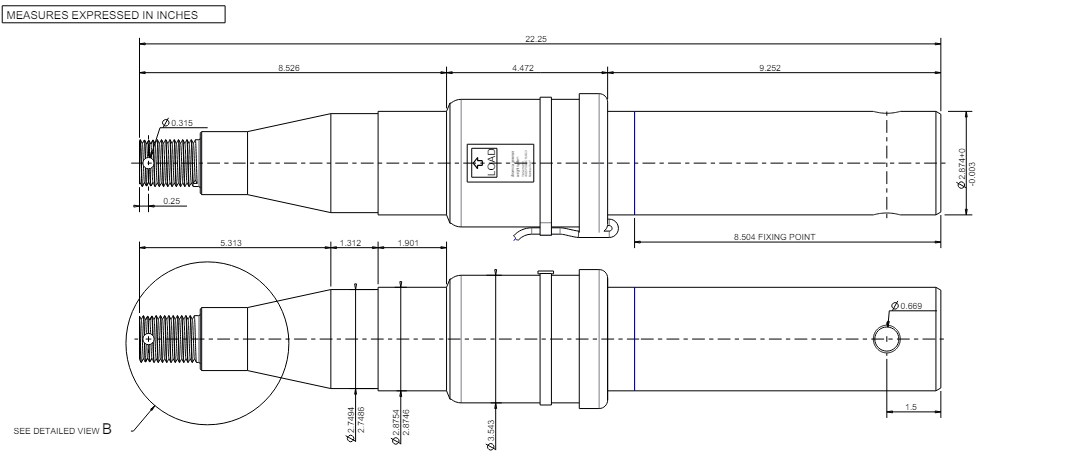

    969-0547-measurements

    connections-23416-23434
