YOUR STORE FOR LOAD CELLS, SCALE, WEIGHT INDICATORS.
Weight control from the aggregate bin to the truck.
Concrete batch plant weighing for the whole operation: load cells under the aggregate and cement weigh hoppers for recipe batching, silo load cells for inventory, water and admixture dosing, and truck scales at the gate. We supply plant manufacturers, integrators and ready-mix operators, and ship from stock in Davie, FL.
Concrete batch plant weighing solutions
From the aggregate hopper to the truck scale at the gate, we add weight control, automation and integration to the plant you already run. Pick a solution to see where it fits and what it includes.
One supplier for every weigh point
Every orange part on the drawing is something we supply: cells under the aggregate hopper and the silo, S-type cells on the cement batcher, single-point cells under the water and admixture tanks, the truck scale at the gate, and the indicators that read them. Pick a solution above, or tap a ring on the drawing.
Recipe batching
Load cells under the aggregate and cement weigh hoppers, read by one batching controller, weigh every ingredient against the mix design. Sand, stone, cement, water and admixture go in by weight, so every load matches the recipe and leaves a batch record.
- Double-ended beam cellsUnder the aggregate weigh hopper
- Compression canister cellsFor heavy aggregate batchers
- Load cell mountsMounting hardware for each cell
- Dosage and batching indicatorsRun the recipe and hold each tolerance window
Silo inventory by weight

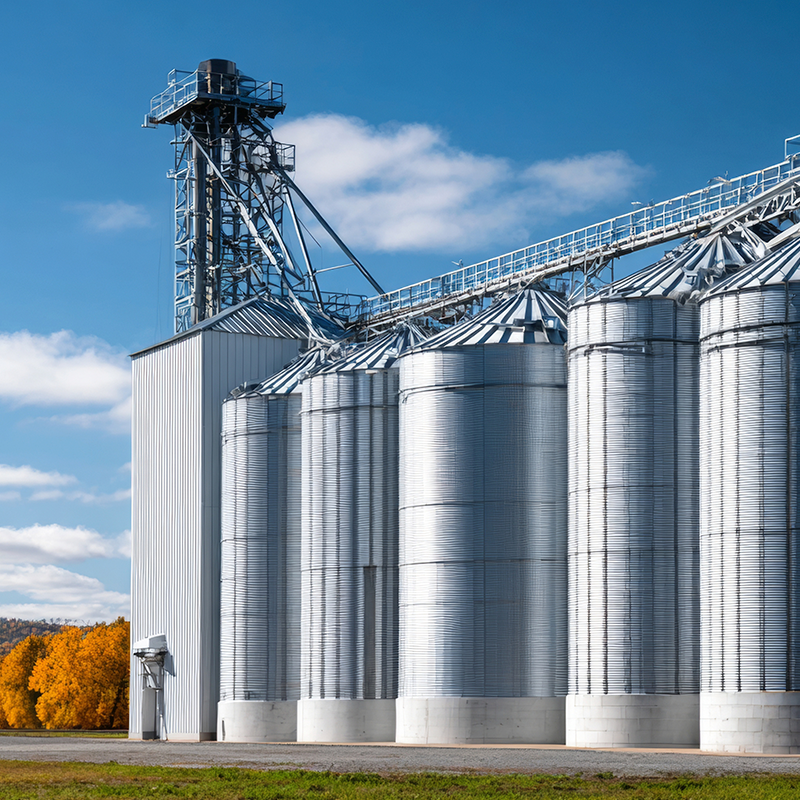

Compression cells under each leg, or S-type tension cells on a suspended silo, weigh the cement, fly ash and additive silos directly. A transmitter sends the weight to your plant control system, so inventory and reorders run on real numbers instead of level guesses.
- Compression canister cellsOne under each silo leg
- S-type load cellsFor suspended silos and the cement batcher
- Weigh modulesCell and mounting hardware in one assembly
- Weight transmittersSend the silo weight to your control system
- Junction boxesSum the legs into one reading
Water and admixture dosing
Single-point cells under the water and admixture tanks, with a dedicated batching controller, dose each liquid by weight. Small doses get the same control as the aggregate, so the water-cement ratio and admixture rate stay where the mix design puts them.
- Single point load cellsUnder the water and admixture tanks
- Dosage and batching indicatorsRun each dose against its target
- Programmable indicatorsWhen the sequence needs custom logic
Truck weighing at the gate
A truck scale at the plant gate weighs incoming aggregate and cement deliveries and the trucks going out. Paired with ticketing software, it prints customer tickets, keeps vehicle records and flags overloads, so every load through the gate has a weight and a ticket.
- Truck scale kitsFor new builds, retrofits and upgrades, with ticketing software options
- Double-ended beam cellsUnder the scale deck
- Truck and vehicle indicatorsRead the scale in the scale house
- Remote displaysShow the weight to the driver
Retrofit and upgrades
Replacement load cells and indicators for the plant you already run. Output and mounting envelopes are industry-common, so most cells swap without changing the hopper; send the nameplate and we confirm electrical and mechanical fit before quoting.
- Load cellsMatched to the cell you are replacing
- Indicators and controllersUpgrade the readout in the control room
- Junction boxesReplace a worn or flooded box
- CablesReplace a damaged cable run
One controller, every scale in the batch
A multi-scale batching controller runs the aggregate, cement, water and admixture weighments in one recipe sequence. Recipes are saved, each ingredient is held to its tolerance window, and every load leaves a batch record.
- Saved recipes
- Store each mix design by name with a target weight for every ingredient.
- One sequence, every scale
- Aggregate, cement, water and admixture weighments run in one recipe sequence from one programmable indicator.
- Tolerance windows
- Each ingredient is checked against its window, with over and under flagged before the batch discharges.
- Batch records
- Target and actual weights for every ingredient, kept for every load.
- Silo inventory
- Silos on load cells report what is left by weight, so cement and fly ash orders follow real use.
- Sealed for the plant
- IP68 stainless cells built for outdoor service, dust and washdown.
| Ingredient | Scale | Target lb | Actual lb | Difference |
|---|---|---|---|---|
| Sand | Aggregate | 10,400 | 10,420 | +20 |
| Coarse stone | Aggregate | 14,400 | 14,380 | −20 |
| Cement | Cement | 4,720 | 4,725 | +5 |
| Water | Water | 2,080 | 2,078 | −2 |
| Admixture | Admixture | 13 | 13 | 0 |
Built for the batch plant
Upgrading a plant? Send the nameplate or the sketch.
Send a photo of the load cell nameplate, the controller you run today, or a sketch of the plant. We come back with a complete parts list, sourcing path, lead time and an integration note, usually within one business day.
From plant sketch to a commissioned plant
Discovery
Under 1 business dayYou share the plant layout, batch size, recipes and the controller you run today. We confirm voltage, environment and the mounting envelope at each weigh point.
Match and quote
1 to 3 business daysYou get a complete parts list with model numbers, capacities, mounting hardware, junction-box wiring and lead time per line item.
Supply
Same day to 6 weeksMost parts ship same day from Davie, FL. Less common items take 1 to 6 weeks depending on the manufacturer. Kitted and labeled per your project number.
Commission
On requestPhone, video or on-site support during commissioning, a calibration walk-through with your integrator, and documentation at handoff.
Brands we stock
- HBM
- High-precision load cells
- Vishay
- Strain-gauge load cells
- Berman
- Heavy-duty industrial cells and truck scale kits
- Zemic
- Beam and canister cells
- Laumas
- Indicators, transmitters and junction boxes
- Schenck and QLAR
- Process weighing
- BLH Nobel
- Process and silo weighing
- WeightechUSA
- Our own WT-series indicators
Questions buyers ask
How accurate will my batching be?
It depends on the plant more than the parts: cell capacity matched to the hopper, mounting, vibration from belts and gates, and calibration. Tell us the hopper size, batch size and the cells you run today, and we sanity-check the setup before quoting.
Can one controller run the whole batch?
Yes, with a multi-scale batching controller. One programmable indicator runs the aggregate, cement, water and admixture weighments in a single recipe sequence, saves recipes and holds each ingredient to its tolerance window. Tell us how many scales the plant has and we match the controller.
Are these cells interchangeable with our existing ones?
Most likely, yes. Output in mV/V and standard mounting envelopes are industry-common. Send a photo of the nameplate or the spec sheet for the cell you are replacing, and we confirm electrical and mechanical compatibility before quoting.
Can you weigh our cement and fly ash silos for inventory?
Yes. Silos are mounted on compression canister cells or S-type tension cells, depending on how the silo is supported, and the cells are IP68 stainless for outdoor service. A weight transmitter sends the silo weight to your plant control system.
Do you offer OEM and dealer pricing?
Yes. Plant manufacturers and authorized integrators get tiered pricing on standard cells, indicators and accessory kits. Send your business details, expected annual volume and project portfolio, and we route you to the dealer program.
What are typical lead times?
Davie, FL stock ships same day, and common cells, indicators and WT-series controllers are stocked. Specialty configurations, such as custom mounting or oversized capacity, usually take 1 to 6 weeks depending on the manufacturer. Exact dates come with the quote.
