WT3 Weight Indicator Washdown IP69K

SKU
WT3-WeightIndicator
$1,900.00
  • WT3 IP69K stainless weight indicator platform
  • 5″ color TFT display, 800 x 480 px
  • Built-in BASIC, belt scale, COUNT, TRUCK, FILL, CHECK, and ONLINE applications
  • One or two analog scales, or one digital-load-cell scale
  • Two SIM sockets plus PIM and ASM archive options
OR
  • Description
  • Additional Information
  • 01 / 06WT3 platform overview

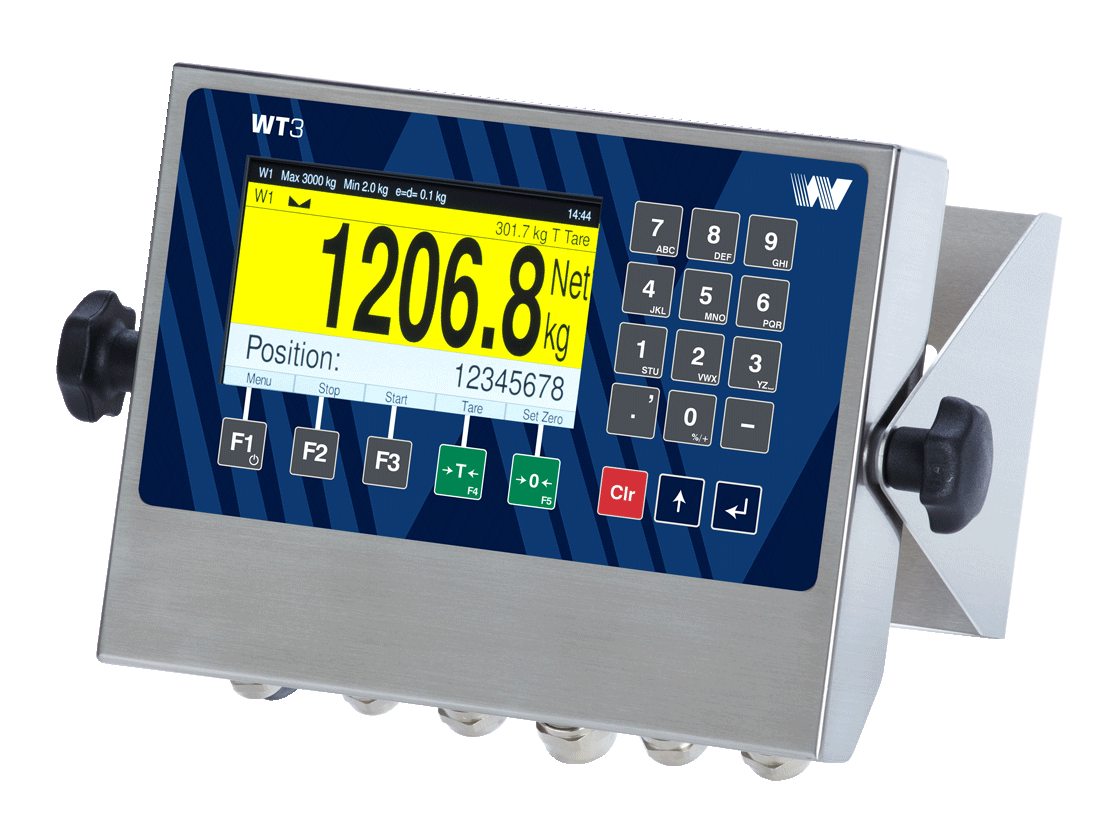

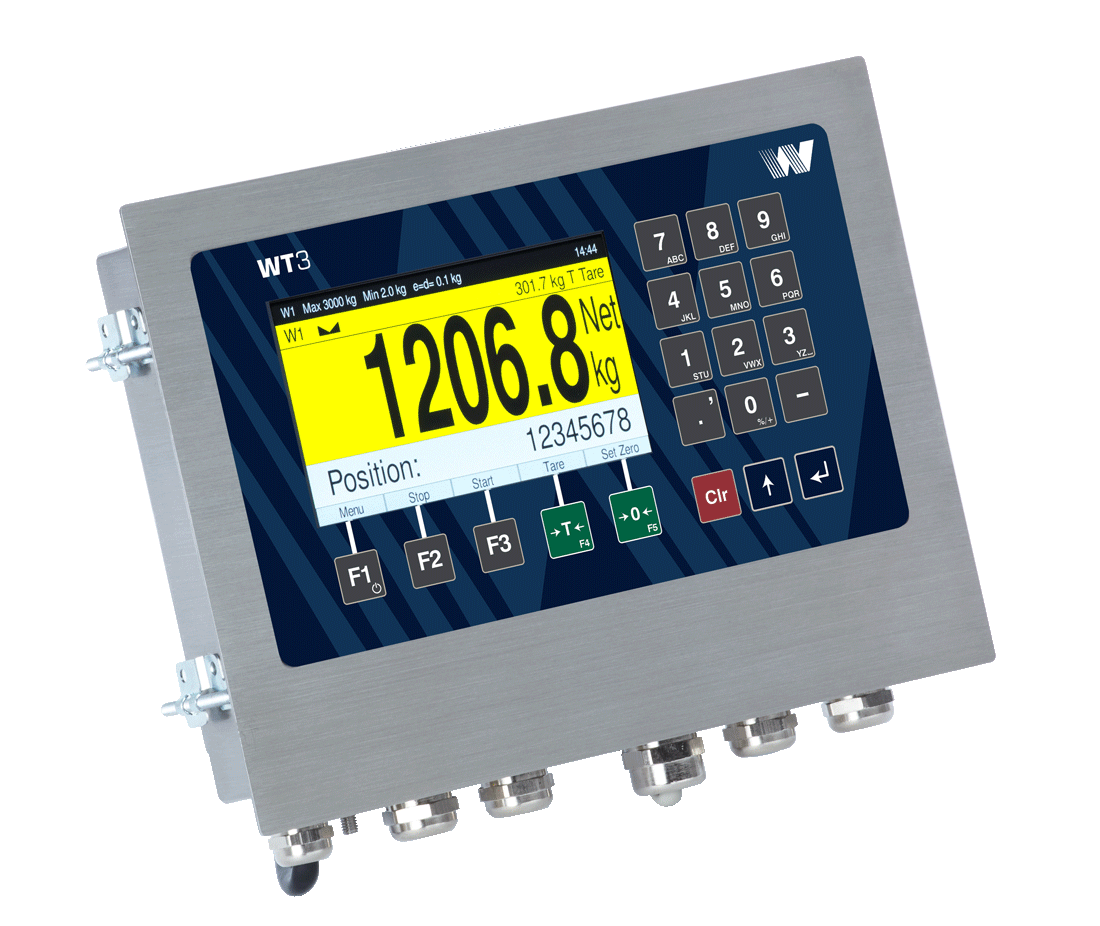

    IP69K stainless indicator platform for multi-application scale stations.

    The WT3 is the step-up washdown indicator platform for installations that need a 5″ display, numeric keypad, built-in industrial applications, and more communication room than the smaller WT1.

    Use WT3 for plant-floor scale stations, truck-scale ticketing, filling/dosing, parts counting, checkweighing, belt-scale applications, and PC-controlled weighing where the same terminal may need different module combinations by installation.

    5″
    Color TFT, 800 x 480 px
    2
    Analog scale inputs max
    2
    SIM communication sockets
    IP69K
    Washdown stainless platform
    02 / 06Application fit

    One WT3 platform, several scale workflows.

    01

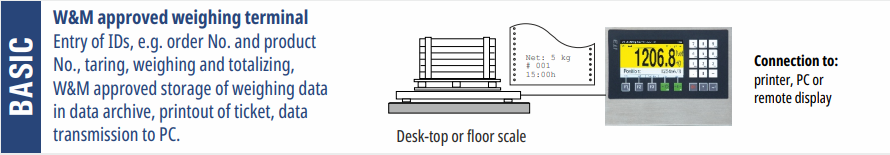

    General weighing

    BASIC mode handles common weigh/print/monitor stations with threshold monitoring.

    BASIC
    02

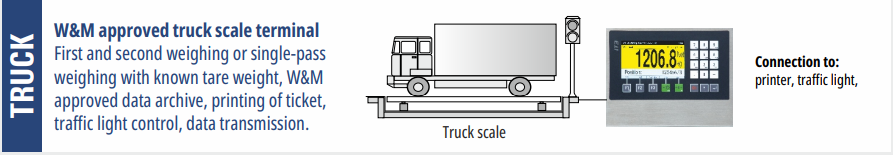

    Truck scales

    TRUCK mode supports in/out weighing and first-weight memory for local weighbridge workflows.

    TRUCK
    03

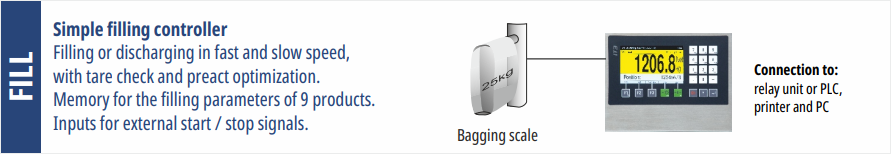

    Filling and dosing

    FILL mode pairs with I/O modules for controlled filling signals and product parameters.

    FILL
    04

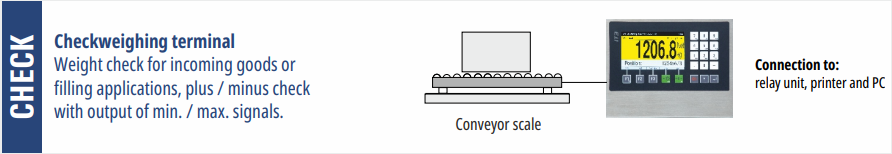

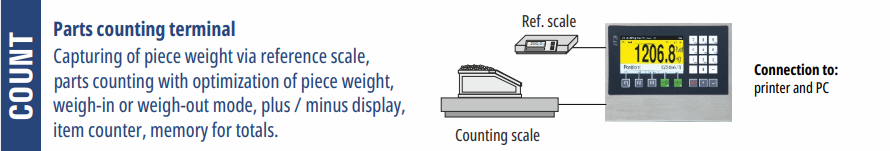

    Counting and checking

    COUNT and CHECK modes support parts counting, reference weights, and high/ok/low inspection.

    COUNT / CHECK
    05

    Belt scale

    WT3 includes a belt-scale application option for continuous weighing workflows.

    BELT
    06

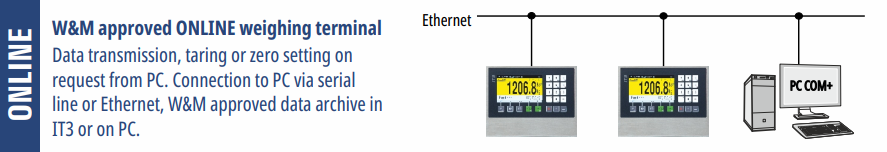

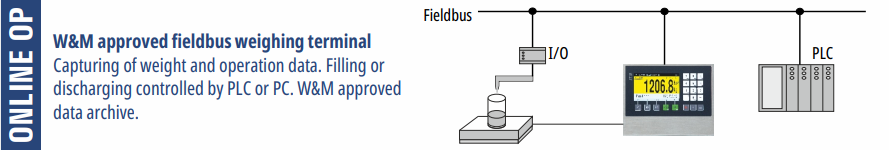

    Online control

    ONLINE mode lets a PC or host system drive weighing operations while WT3 handles weight capture.

    ONLINE
    03 / 06Hardware platform

    Built like a washdown terminal, configured like a modular controller.

    DISPLAY

    Display and keyboard

    5″ color TFT with 800 x 480 px resolution, large weight indication, prompt line, numeric keyboard, and 5 softkeys.

    SCALE

    Scale input

    Connect one or two analog strain-gauge scales, or one digital-load-cell scale.

    MEMORY

    Memories

    Scale error log, first-weight memory for 99 records, 9 tare values, product parameters, and reference weight values.

    WEB

    Remote setup

    Integrated web server plus power-fail-safe date and time.

    04 / 06Modules

    Two SIM sockets make WT3 stronger for connected installations.

    WT3 is the right family when the weighing terminal needs communication, I/O, analog output, or approved archive options without changing the core platform.

    • Two SIM sockets for serial, Ethernet TCP/IP, USB, incremental sensor, or I/O options
    • PIM socket for I/O module or DAU15 analog output
    • ASM socket for W&M-approved data archive up to 1,000,000 weighing results
    • Desktop/wall and panel-mount versions
    • 110-240 VAC and 12-30 VDC configurations
    05 / 06Technical data

    WT3 platform specifications.

    Display5″ color TFT, 800 x 480 px
    KeyboardNumeric keyboard with 5 softkeys
    Scale connectionOne or two analog strain-gauge scales, or one digital-load-cell scale
    Power110-240 VAC or 12-30 VDC variants
    ApplicationsBASIC, belt scale, COUNT, TRUCK, FILL, CHECK, ONLINE
    Expansion2 SIM sockets, 1 PIM socket, 1 ASM archive socket
    ProtectionIP69K washdown platform
    DataScale error log, 99 first-weight records, 9 tare values, product and reference values
    06 / 06Part number reference

    WT3 ordering overview.

    ProductOrder code
    WT3 Desktop, 110-240 VAC20302
    WT3 Desktop, 12-30 VDC20303
    WT3 Desktop, 110-240 VAC, with RS23220304
    WT3 Desktop, 12-30 VDC, with RS23220305
    WT3 Desktop, 12-30 VDC, with USB20307
    WT3 Desktop, 12-30 VDC, with Ethernet20309
    WT3 Desktop, 12-30 VDC, with RS48520311
    WT3 Desktop, 110-240 VAC, with Analog Output20312
    WT3 Desktop, 12-30 VDC, with Analog Output20313
    WT3 Desktop, 110-240 VAC, with I/O Module20314
    WT3 Desktop, 12-30 VDC, with I/O Module20315
    WT3 Desktop, 110-240 VAC, with Memory Module20316
    WT3 Desktop, 12-30 VDC, with Memory Module20317
    WT3 Panel-mount, 110-240 VAC20402
    WT3 Panel-mount, 12-30 VDC20403
    WT3 Panel-mount, 110-240 VAC, with RS23220404
    WT3 Panel-mount, 12-30 VDC, with RS23220405

    Is WT3 available in both desktop and panel-mount formats?

    Yes. WT3 has desktop/wall and panel-mount configurations with AC and DC power options.

    Which module should I choose for PLC or network integration?

    Use RS232/RS485 for serial devices, Ethernet TCP/IP for LAN or host connection, and PIM/DAU15 options for I/O or analog signals.

    Can WeightechUSA configure the right WT3 before shipment?

    Yes. Send the scale count, power source, enclosure format, printer/host/PLC requirements, and any I/O list.
