3 S-Type Load Cell - Tension Assembly Kit

SKU
3-s-type-load-cell-tension-assembly-kit
$1,750.00

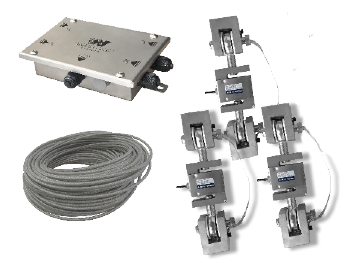

3 S-Type Load Cell Mount Kit that includes:

  • 3 S-Type Zemic H3G Load Cell (Revere 363 available) 500 lb to 20,000 lb Alloy Steel.
  • 3 Pair of Clevis.
  • 6 Rod End Alloy Steel PTFE + 6 Jam Nut.
  • 1 Stainless Steel Junction Box 4 Channels.
  • 30 ft cable, 4 wires.
OR
  • Add to Wishlist
  • | Add to Compare
  • Description
  • Additional Information

  • 3 S-Type Load Cell - Tension Assembly Kit

    This kit uses the Zemic H3G S-type Load cell, it is a multi-purpose kit that can be used in tension or compression applications. This product is suitable for a wide range of hybrid scales, overhead track scales, belt scales, suspended Hoppers and Tanks, Mechanical scale conversions and process weighing applications.

    Obs: This kit does not come assembled.

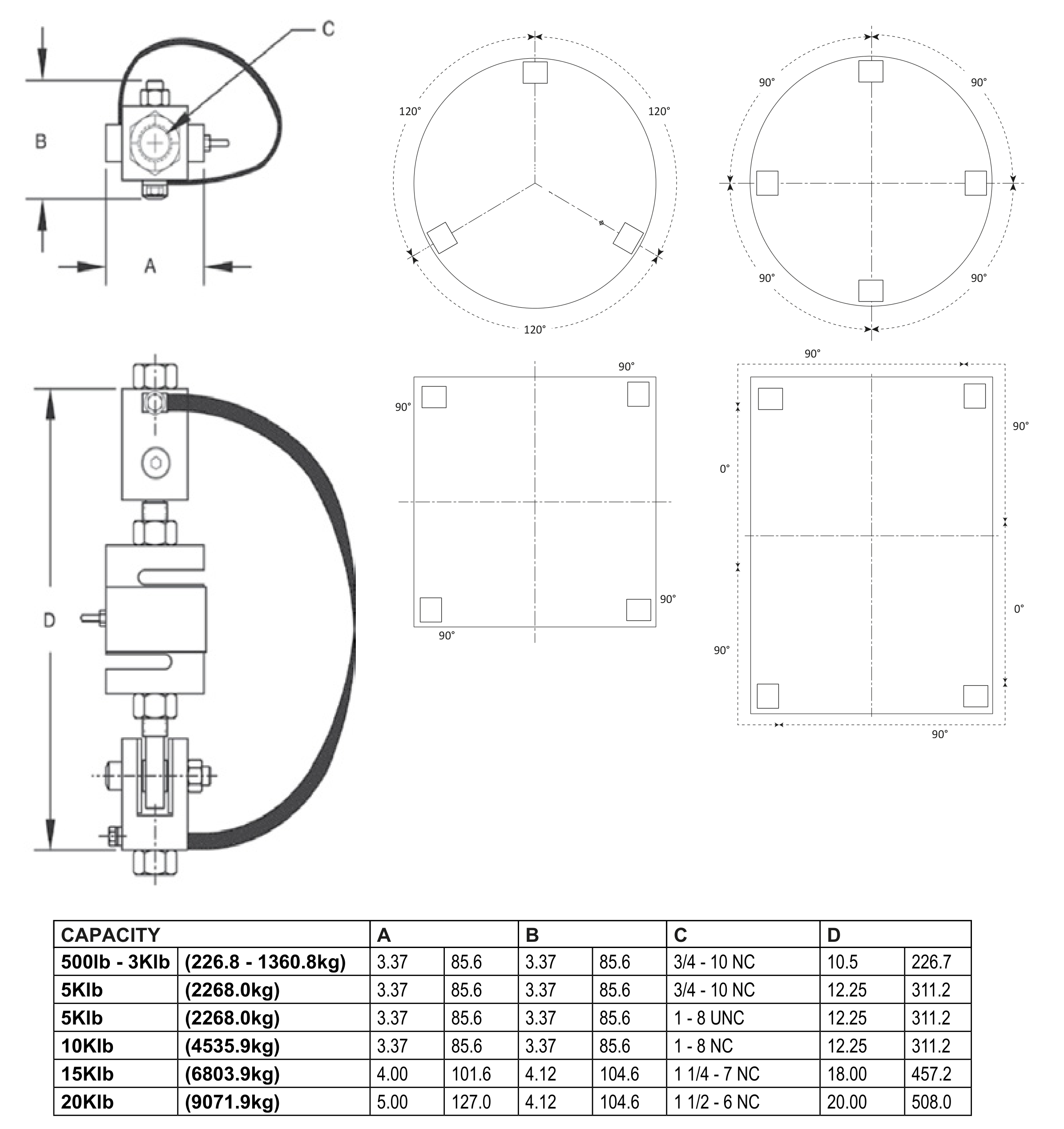

    Capacity lb (kg)Part #Thread
    500 (226.8)300015/8 - 11 UNC
    500 (226.8)300293/4 - 10 UNC
    1,000 (453.6)300025/8 - 11 UNC
    1,000 (453.6)300313/4 - 10 UNC
    1,500 (680.4)300035/8 - 11 UNC
    1,500 (680.4)300323/4 - 10 UNC
    2,500 (1,134.0)300045/8 - 11 UNC
    2,500 (1,134.0)
    		300343/4 - 10 UNC
    3,000 (1,360.8)300353/4 - 10 UNC
    5,000 (2,268.0)300363/4 - 10 UNC
    5,000 (2,268.0)300401 - 8 UNC
    10,000 (4,535.9)300371 - 8 UNC
    15,000 (6,803.9)300381 1/4-7 UNC
    20,000 (9,071.9)300391 1/2-6 UNC
