ASC2 Compression Load Cell · 30 t · 0ASC2-030T-31-00XRevere ASC2-30t Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Revere ASC2-30t Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 30t. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Revere and the model / part number as 11040.
30tRated capacityStainless steel, welded sealMaterialIP66 / IP68 (100 hr at 1 m) / IP69KProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 30t against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP66 / IP68 (100 hr at 1 m) / IP69K. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel, welded seal Protection IP66 / IP68 (100 hr at 1 m) / IP69K Signal Analog Cable length 60ft - 15m Cable type Polyurethane jacket Manufacturer Vishay-Revere Capacity weight 30 t Approval OIML R60 C3 (to C5.5) · NTEP Class IIIL/10000 Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS (range 5–15) Maximum excitation 15VDC Input impedance 1160 ± 60 Ω Output impedance 1011.5 ± 11.5 Ω Insulation resistance > 2000 MΩ Combined error ≤ ±0.020 %RO (C3) Creep error ≤ ±0.025 % / 30 min (C3) Safe overload 150 %RC Ultimate overload 300 %RC Operating temperature −30 to +70 °C Number of wires 4 Output sensitivity 2.0 mV/V Zero balance ± 0.02 mV/V Compensated temperature −10 to +40 °C Storage temperature −40 to +90 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Revere ASC2-30t Compression Load Cell 11040 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

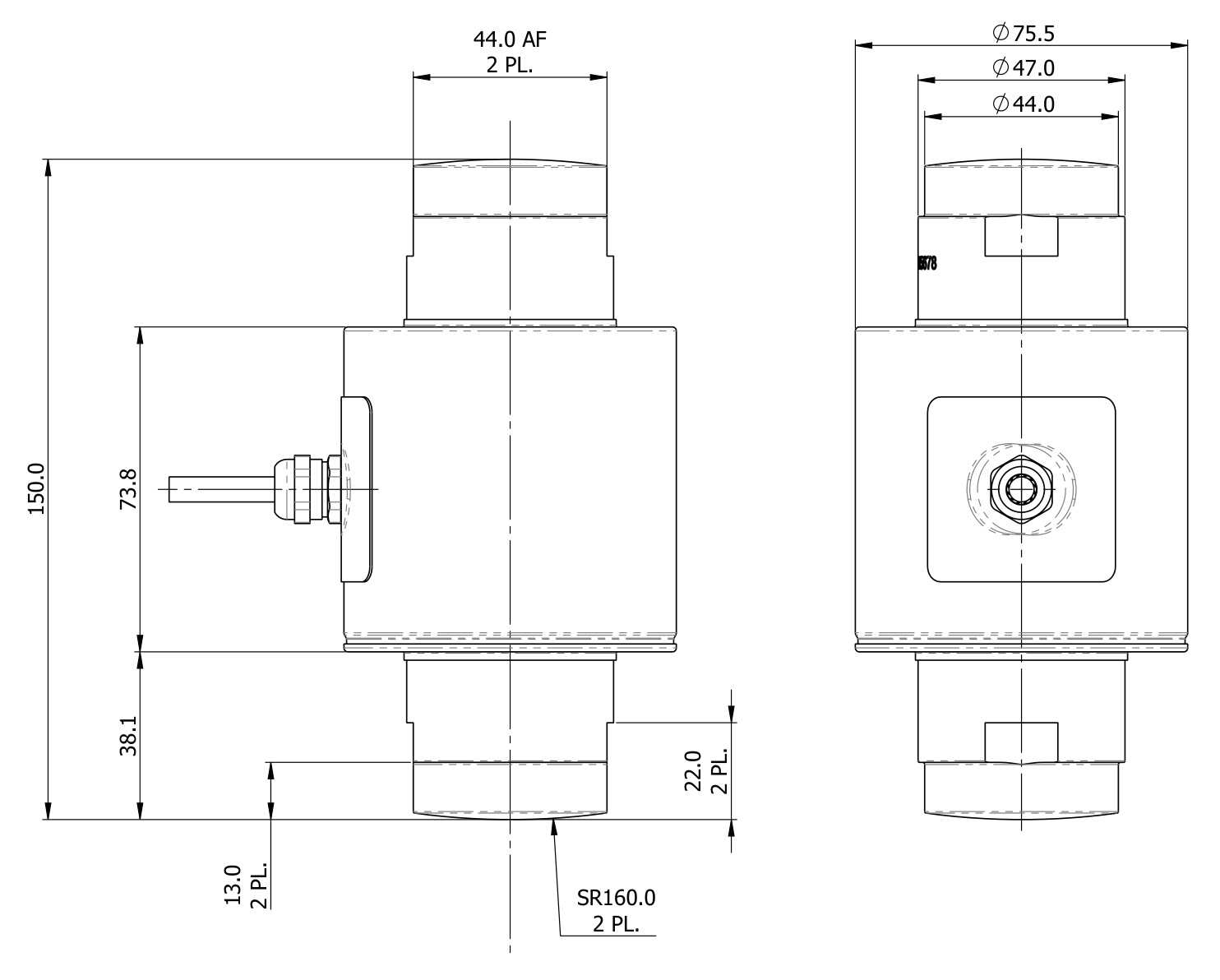

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 11040 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP69K Material Stainless Steel Combined error ≤ ±0.020 %RO (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.025 % / 30 min (C3) Input impedance 1160 ± 60 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15VDC Maximum safe overload 150 %RC Operating temp range −30 to +70 °C Output impedance 1011.5 ± 11.5 Ω Rated capacity 30 t Rated output 2.0 mV/V Rated output tolerance ± 0.02 mV/V Recommended excitation 10 VDC / VAC RMS (range 5–15) Sensitivity 2.0mV/V Storage temp range −40 to +90 °C Ultimate central overload 300 %RC Zero balance ± 0.02 mV/V Manufacturer Vishay-Revere Cable type Polyurethane jacket Cable length 60ft - 15m Number of Wires 4 wires Manufacturer's Part Number 0ASC2-030T-31-00X Approval OIML R60 C3 Short name ASC2 Compression Load Cell · 30 t · 0ASC2-030T-31-00X Hero chips IP69K; Stainless Steel; Analog signal; OIML R60 C3; 2.0mV/V
