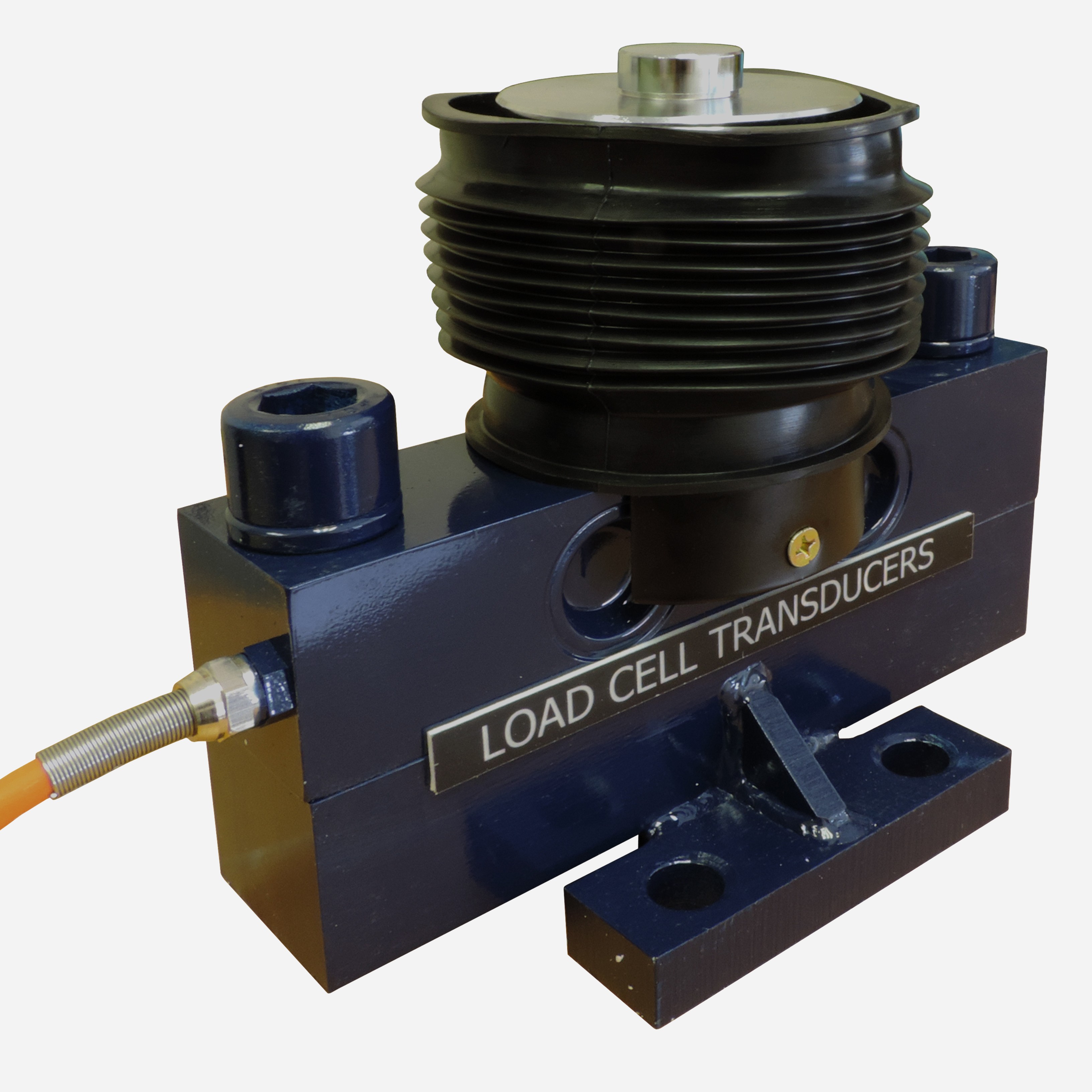

BLCQ Double-Ended Beam Load Cell · 30 t · BLCQ-30TBerman BLCQ-30t Double-Ended Beam Load Cell
- Description
- Additional Information
- 01 / 06Double-ended beam and weighbridge load cells
Double-ended beam and weighbridge load cells for confirmed-fit replacement and scale builds.
The Berman BLCQ-30t Double-Ended Beam Load Cell is a double-ended beam load cell rated 30t. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Berman Weighing Technology and the model / part number as 10561.
30tRated capacityAlloy steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Double-ended beam cells are commonly used in truck scales, rail scales, hoppers, and other heavy multi-cell systems.
01Truck and rail scales
A strong fit for weighbridges and vehicle-scale load points.
weighbridge02Heavy vessels
Works in silo, hopper, and tank weighing when the mount controls load introduction.
vessel03Service replacement
Confirm cups, links, mounts, and cable exit before ordering.
retrofit03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 30t against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Alloy steel Protection IP68 Signal Analog Manufacturer Berman Weighing Technology Capacity weight 30 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Maximum excitation 15 VDC Input impedance 750 ± 10 Ω Output impedance 703 ± 2 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.03 %FS Creep error ≤ ±0.02 % / 30 min Safe overload 150 %FS Operating temperature −30 to +70 °C Number of wires 4 Output sensitivity 2.0 ± 0.002 mV/V Zero balance ± 1 %FS Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Berman BLCQ-30t Double-Ended Beam Load Cell 10561 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10561 is the right fit.

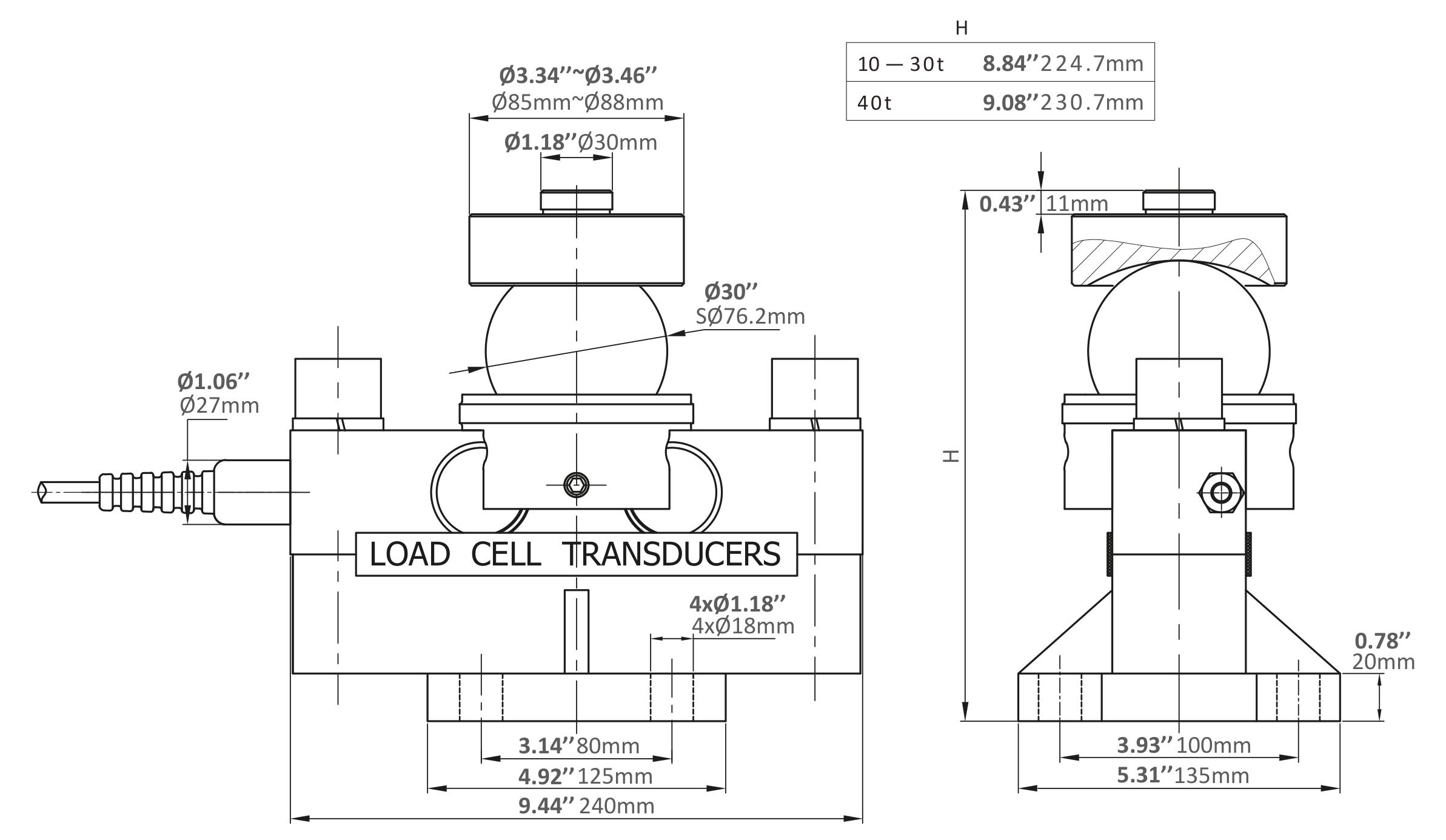

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Berman BLCQ datasheet (WeightechUSA) Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.03 %FS Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.02 % / 30 min Input impedance 750 ± 10 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150 %FS Operating temp range −30 to +70 °C Output impedance 703 ± 2 Ω Rated capacity 30 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Zero balance ± 1 %FS Manufacturer Berman Weighing Technology Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BLCQ-30T Short name BLCQ Double-Ended Beam Load Cell · 30 t · BLCQ-30T Hero chips IP68; Alloy Steel; Analog signal; 4 wires
