BLX Shear Beam Load Cell · 500 kg · BLX-500kgBerman BLX-500kg 500 kg Shear Beam Load Cell
SKU 30205
IP67; Stainless Steel; Analog signal; 2,0 ± 0.003 mV/V
272.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Berman BLX-500kg is a 500 kg capacity variation of the Berman BLX shear beam load cell family, manufactured in stainless steel with IP67 / IP68 ingress protection.
500 kgRated capacityStainless steelMaterialIP67 / IP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Berman Manufacturer part number BLX-500kg Capacity 500 kg Rated output 2.0 ± 0.003 mV/V Dimensions 130 x 32 mm Material Stainless steel Signal Analog Insulation resistance ≥ 5000 MΩ Zero balance ± 1 %FS Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Recommended excitation 5 ~ 12 VDC Maximum excitation 15 VDC Total error ± 0.05 %FS Creep (30 min) ± 0.03 %FS Temperature effect on zero ± 0.02 %FS / 10 °C Temperature effect on span ± 0.02 %FS / 10 °C Safe overload 150 %FS Cable 5 m, Ø5 mm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Berman BLX-500kg 500 kg Shear Beam Load Cell 30205 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

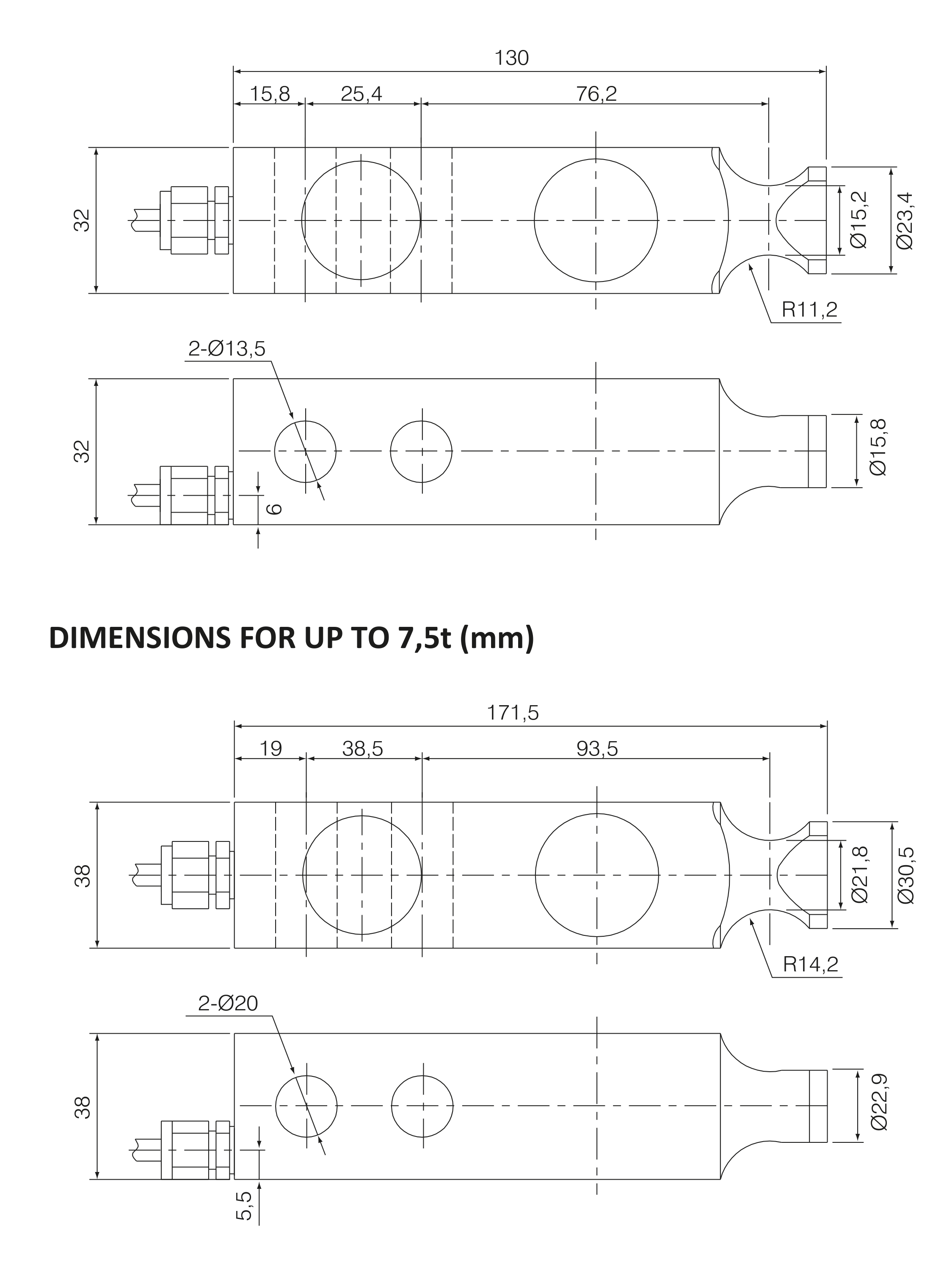

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Berman BLX datasheet (WeightechUSA) Signal Analog Protection class IP67 Material Stainless Steel Creep error 30 mins ± 0,03% F.S. Input impedance 400 ±10 Ω Internal Battery -- Maximum safe overload 150 %FS Nominal temp range -30°C ~ +70°C Output impedance 352 ± 2 Ω Rated capacity 500 kg Rated output 2.0 ± 0.003 mV/V Recommended excitation 10~12 VDC Sensitivity 2,0 ± 0.003 mV/V Ultimate central overload 200 %FS Manufacturer Berman Weighing Technology Cable type 6 wires; 5m length; Ø5mm Manufacturer's Part Number BLX-500kg Short name BLX Shear Beam Load Cell · 500 kg · BLX-500kg Hero chips IP67; Stainless Steel; Analog signal; 2,0 ± 0.003 mV/V
