Dinamica Generale 969-0248 Mobile Weigh Bar 2.125"

SKU

22248

$378.00

Rated Mobile Load: 9039 Lbs. / 4100 Kg
Rated Static Load: 13559 Lbs. / 6150 Kg
Capacity: 8500KG @ 2mV/V
Cable length: 21.3 ft / 6.5 m
Cable Connector: Standard Wires
Replacement load cell for Weigh-Tronix 21594-0420 load cell

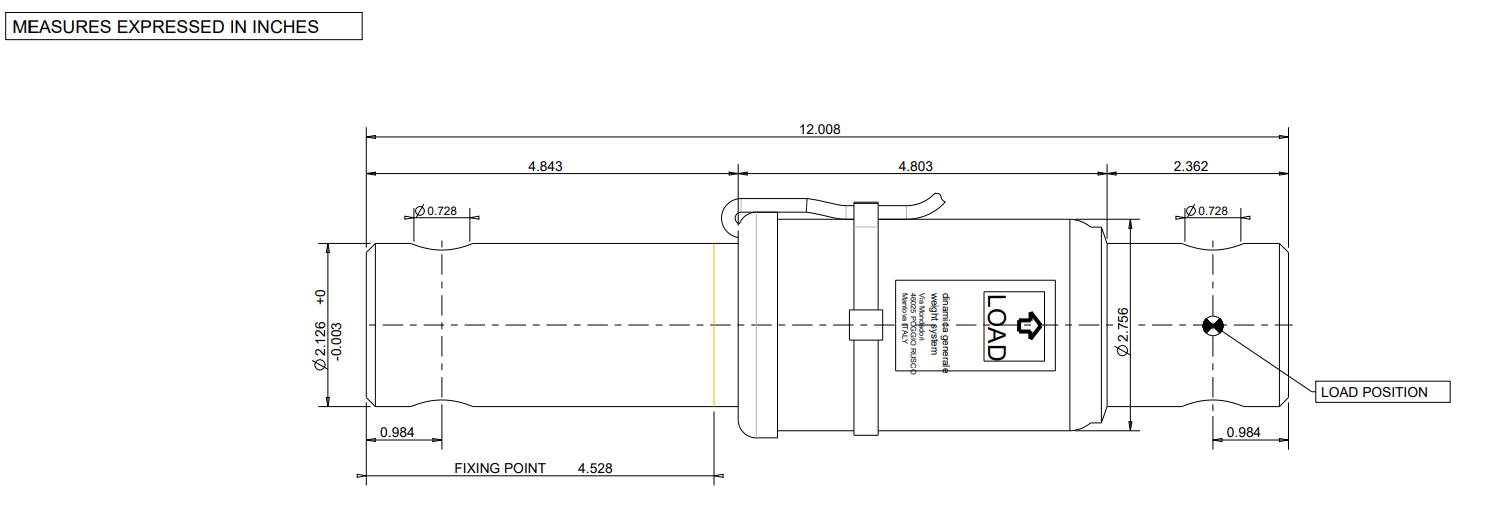

Overall Diameter: 2.125"
Overall Length: 12"
Application: Mobile and Hitch
Replacement for 969-0044

Qty

OR

Description
Additional Information

Mixer and Feeder Mobile Load Cell DG 969-0248
High-quality alloy steel: Dinamica Generale's special thermal treatment makes it stable for years
PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
High resistant coating (480h salt spray testing)
Aluminum protection: strain gauge protected against impact (mobile models)
Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
Temperature compensation as an option
Custom mechanical design available on request
IP68 Protection rate
Replacement load cell for Weigh-Tronix 21594-0420 load cell
Applications
Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.

DG 969-0248 PDF Data Sheet

Material	Alloy Steel, Coated as configured:
Internal Battery	No as configured:
Rated output	Static: 1.45 mV/V \| Mobile: 0.96 mV/V as configured:
Manufacturer	Dinamica Generale as configured:
Cable type	Standard Wires as configured:
Cable length	21.3 ft / 6.5 m as configured:
Mobile Rated capacity	9039 Lbs. / 4100 Kg as configured:
Static Rated Capacity	13559 Lbs. / 6150 Kg as configured:
Interchangeable Brand	Avery Weigh-Tronix as configured:
Interchangeable	21594-0420 as configured:
Load Point Diameter	2.125 in. as configured:
Fixing Point Diameter	2.125 in. as configured:
Bar Length	12 in. as configured:
