Dinamica Generale 969-0549 Weigh Bar 2.125" to 1.752"
SKU
22549
- Description
- Additional Information
Mixer and Feeder Mobile Load Cell DG 969-0549
- High-quality alloy steel: Dinamica Generale's special thermal treatment makes it stable for years
- PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
- High resistant coating (480h salt spray testing)
- Aluminum protection: strain gauge protected against impact (mobile models)
- Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
- Temperature compensation as an option
- Custom mechanical design available on request
- IP68 Protection rate
- Replacement load cell for Digi-Star 409062 load cell
Applications
Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.

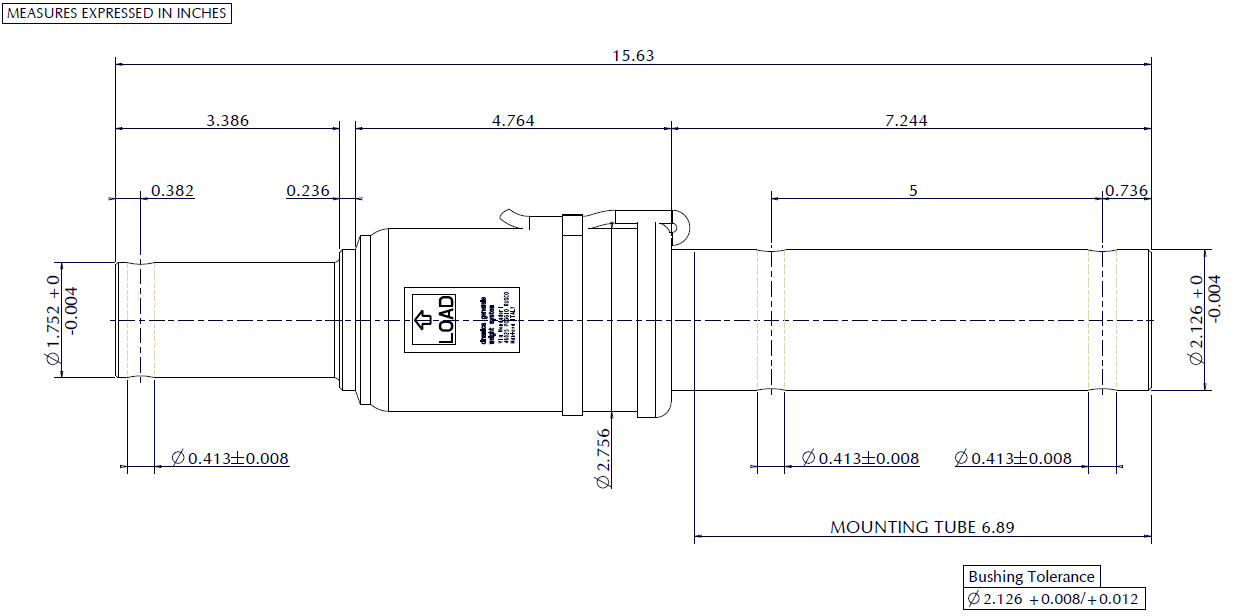

Material Alloy Steel, Coated Internal Battery -- Rated output Static: 0.68 mV/V | Mobile: 0.45 mV/V Manufacturer Dinamica Generale Cable type SPM Cable length 16.4 ft. / 5 m Mobile Rated capacity 9039 Lbs. / 4100 Kg Static Rated Capacity 13559 Lbs. / 6150 Kg Interchangeable Brand Digi-Star Interchangeable 409062 Load Point Diameter 1.752 in. Fixing Point Diameter 2.125 in. Bar Length 15.63 in.
