Dinamica Generale 969-0217 Load Cell Bar 2.125"

SKU
22217
$402.50
  • Rated Load: 8818 Lbs. / 4000 Kg
  • Capacity: 14575 KG @ 2mV/V
  • Cable length: 21.3 ft / 6.5m
  • Cable Connector: SPM
  • Overall Diameter: 2.125"
  • Overall Length: 14.05"
  • Replacement part for Avery Weigh-tronix 21594-0263
  • Application: Mobile and Hitch
OR
  • Description
  • Additional Information
  • Mixer and Feeder Mobile Load Cell DG 969-0217

    • High-quality alloy steel: Dinamica Generale special thermal treatment makes it stable for years
    • PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
    • High resistant coating (480h salt spray testing)
    • Aluminum protection: strain gauge protected against impact (mobile models)
    • Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
    • Temperature compensation as an option
    • Custom mechanical design available on request
    • IP68 Protection rate
    • Replacement part for Avery Weigh-tronix 21594-0263, 21594-0404


    Applications

    Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.

    DG 969-0217 PDF Data Sheet

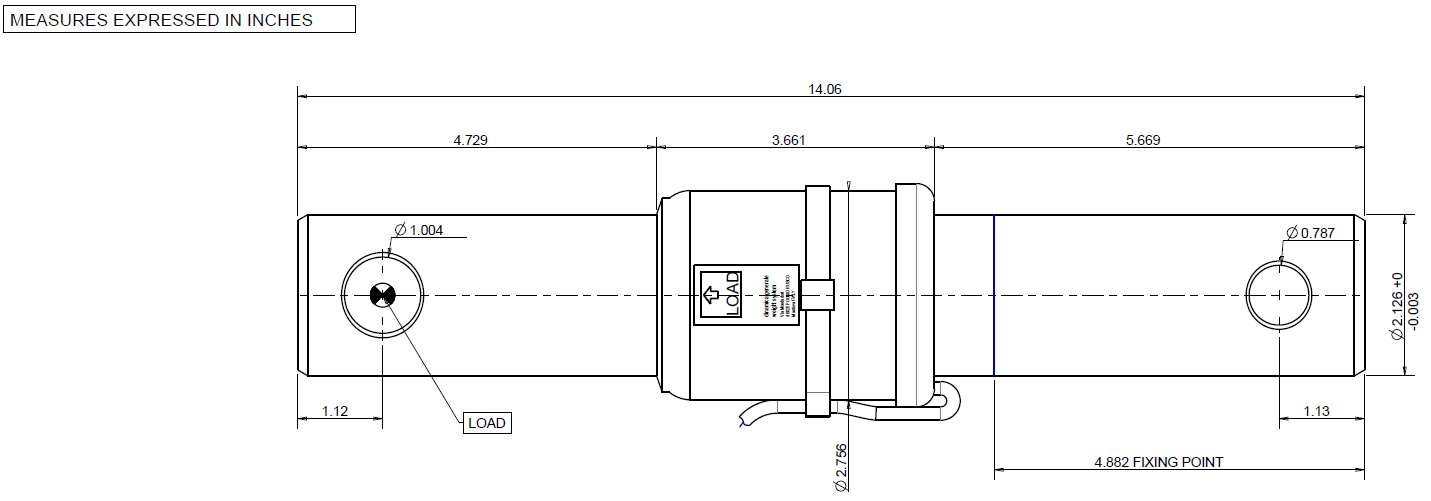

    969-0217-measurements

    connections-23416-23434
