Schenck Process Ring Torsion Load Cell C3 RTN-1 t
SKU
15381
- Description
- Additional Information

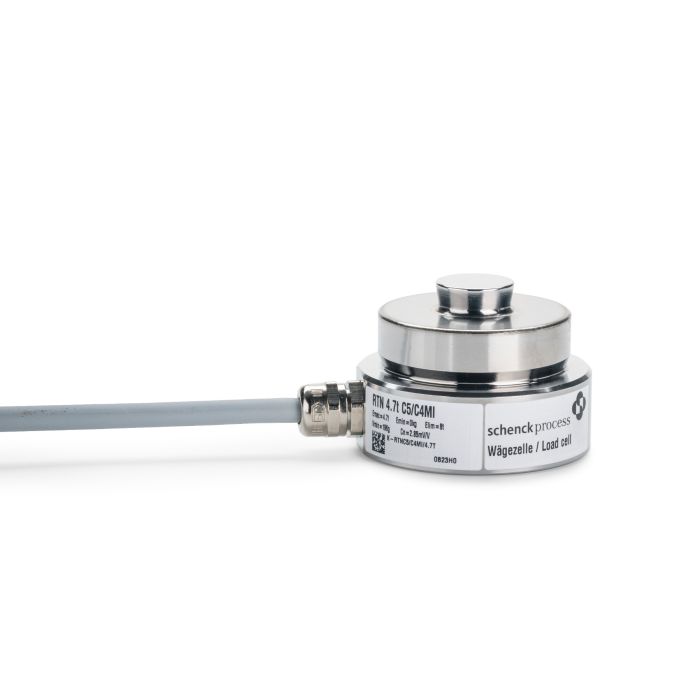

Schenck Process RTN C3 Compression Load Cell
The RTN C3 is a high-precision stainless steel compression load cell engineered for industrial and legal-for-trade applications requiring reliable and repeatable weight measurement.
Designed for Industrial Performance
- OIML C3 accuracy class for commercial weighing systems
- High long-term stability and excellent repeatability
- Low sensitivity to lateral forces and off-center loading
- High resistance to vibration, impact, and dynamic loads
Robust Stainless Steel Construction
- Hermetically sealed using advanced welding technology
- IP68 protection for wet, dusty, and harsh environments
- Corrosion-resistant stainless steel body
Applications
The RTN C3 load cell is commonly used in:
- Truck scales
- Silo and tank weighing systems
- Industrial platform scales
- Process and batching systems

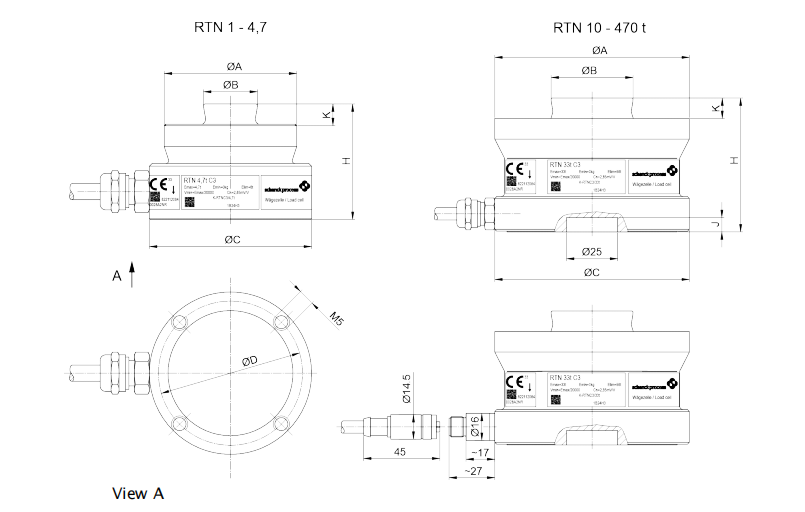

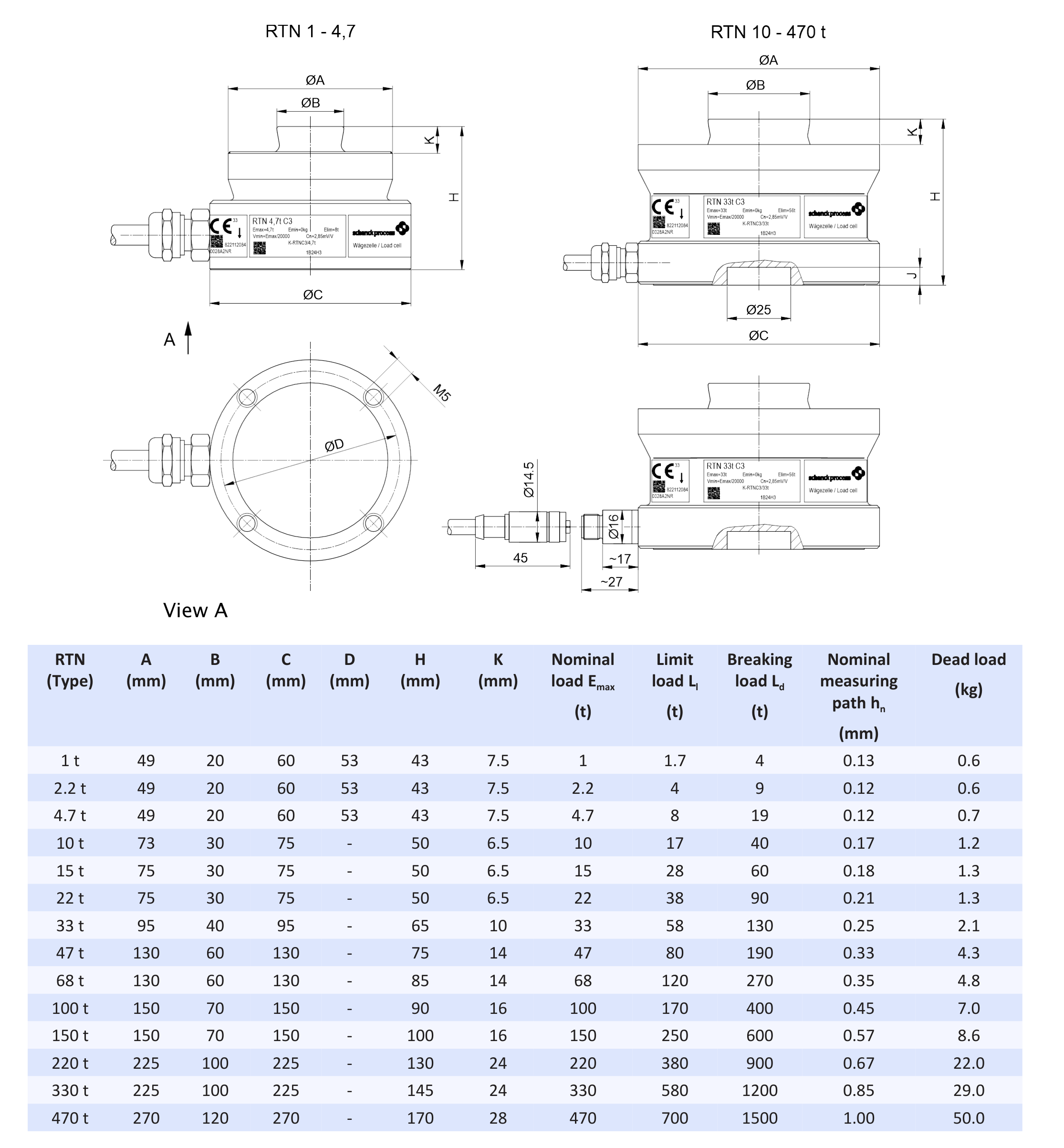

Dimensions
RTN (Type) A (mm) B (mm) C (mm) D (mm) H (mm) K (mm) Nominal Load Emax (t) Limit Load Ll (t) Breaking Load Ld (t) Nominal Measuring Path hn (mm) Dead Load (kg) 1 t 49 20 60 53 43 7.5 1 1.7 4 0.13 0.6 2.2 t 49 20 60 53 43 7.5 2.2 4 9 0.12 0.6 4.7 t 49 20 60 53 43 7.5 4.7 8 19 0.12 0.7 10 t 73 30 75 - 50 6.5 10 17 40 0.17 1.2 15 t 75 30 75 - 50 6.5 15 28 60 0.18 1.3 22 t 75 30 75 - 50 6.5 22 38 90 0.21 1.3 33 t 95 40 95 - 65 10 33 58 130 0.25 2.1 47 t 130 60 130 - 75 14 47 80 190 0.33 4.3 68 t 130 60 130 - 85 14 68 120 270 0.35 4.8 100 t 150 70 150 - 90 16 100 170 400 0.45 7.0 150 t 150 70 150 - 100 16 150 250 600 0.57 8.6 220 t 225 100 225 - 130 24 220 380 900 0.67 22.0 330 t 225 100 225 - 145 24 330 580 1200 0.85 29.0 470 t 270 120 270 - 170 28 470 700 1500 1.00 50.0 Keywords: RTN load cell, compression load cell, C3 load cell, OIML C3, stainless steel load cell, IP68 load cell.
Signal Analog Protection class IP68 Material Stainless Steel Combined error 0.02% Compensated temp range -10°C to +40°C Creep error 20mins ±0.024 % Hysteresis error ±0.02 % Input impedance 4450 Ω ±100 Ω Internal Battery -- Load cell connection Input+: black; Input-: blue; Output+: red; Output-: white; Shield: yellow Maximum excitation 60 V Maximum number of intervals 3000 Maximum safe overload 1.7 t NTEP/OIML OIML R60 Operating temp range -40°C to +80°C Output impedance 4010 Ω ±0.5 Ω Rated capacity 1 t Rated output 2.85 mV/V Rated output tolerance ±2.85 µV/V Recommended excitation 5–12 V Storage temp range -50°C to +85°C Temp effect on output ±0.008 %/10K Temp effect on zero ±0.007 %/10K Ultimate central overload 4 t Manufacturer Schenck Process Cable type 4-wire cable Cable length 5 m Accuracy C3 Manufacturer's Part Number D726173.02
