Systec IT6000 BAG Fill Control for Automatic Bagging Systems

SKU
it6000-bag

Regular Price: $5,113.00

Sale Price $4,057.00

  • WT6000/IT6000 IP69K Weight Indicator
  • Single bags or batches can be filled in semi or fully automatic operation
  • Maximum throughput through fast signal processing with efficient digital filtering
  • Accurate fill control through fast acting trend-sensing preact adjustment and weight tolerance control
  • Digital interfaces / Modbus TCP
  • Analog output (option)
  • High operational security through extensive monitoring functions and simple operator control
  • Recording of all data of single bags or batches with optional hardcopy printout and/or data transfer.
  • Relay module, 8I/O-RS485-HS-24VDC
  • 8 x relay output, 8 x optoisolated input 24 V DC, installation on DIN rail, external power supply unit 24 V DC required (not included).

OR
  • Description
  • Additional Information
  • Systec IT6000E BAG – Advanced Filling Control for Automatic Bagging Systems

    The IT6000E BAG is a highly precise and efficient filling controller designed for automatic bagging systems. It offers advanced control over filling processes for both single bags and batches, with options for semi or fully automatic operations. Whether you're filling bags by weight in gross or net mode, the IT6000E ensures the highest accuracy by constantly monitoring and adjusting the fill process through fast signal processing and preact optimization.

    This controller can handle a variety of materials using different types of feeders, such as screw feeders, sliding gates, or vibratory feeders. It can also control additional equipment like bag clamps and the movement of bags on and off the scale, providing flexibility for diverse bagging applications.

    The IT6000E BAG is incredibly user-friendly, with a clear, high-contrast color display and easy-to-follow prompts that guide the operator through each step. Its simple interface minimizes the need for extensive training while ensuring fast and error-free operation. The controller also comes with a stainless steel enclosure, offering IP69K and NEMA 4X protection, making it highly durable and suitable for harsh environments.

    For seamless integration with your existing systems, the IT6000E BAG includes multiple communication options such as Modbus TCP, Ethernet, and USB interfaces, allowing for easy connection to printers, PCs, or PLCs. Additionally, the system supports the connection of various types of scales and load cells, ensuring compatibility with a wide range of bagging equipment.

    Typical Bag Filling Cycle:

    • Product selection – Input target weight and bag count.
    • Ready status – System waits for filling to begin, either manually or via external signal.
    • Tare check – Automatically sets scale to zero before filling.
    • Start filling – Single or dual-speed filling with continuous monitoring.
    • Weight tolerance check – Automatic preact adjustments ensure precise fills.
    • Capture of statistical data – Option to print or transfer weights and relevant data.
    • End of sequence – System prepares for the next filling cycle.

    The IT6000E BAG is perfect for industries requiring reliable, high-speed filling, such as food processing, pharmaceuticals, chemicals, and bulk materials. Its fast signal processing, high-precision weight control, and seamless integration capabilities make it the go-to solution for companies looking to improve the efficiency and accuracy of their bagging operations. With features like real-time data logging, automatic tare checks, and password protection, it’s designed to meet the demands of modern industrial applications.

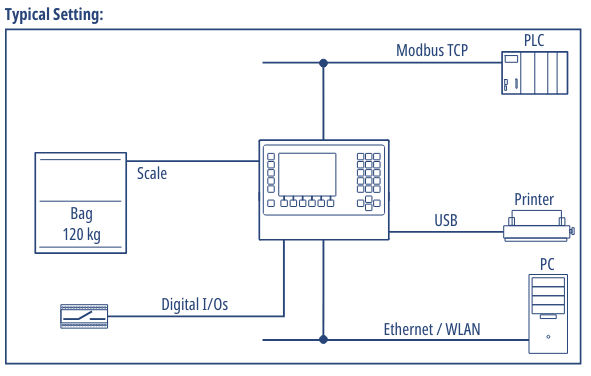

    wt6000-settings

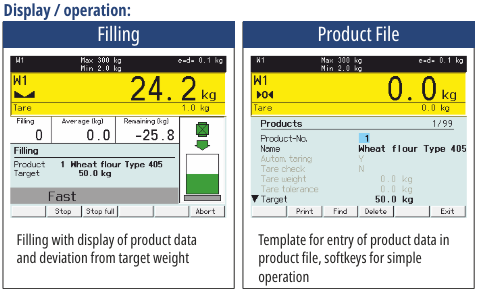

    wt6000-display-operations
