Tedea-Huntleigh 1140 Stainless Steel Single Point Load Cell
SKU 1140
IP65; Stainless Steel; Analog signal; 6 wires
320.00
- Description
- Additional Information
- 01 / 02Single Point Load Cell
Tedea-Huntleigh 1140 single point load cell family.
The Tedea-Huntleigh 1140 is a single-point load cell family. This page describes the family; use the table below to select the SKU your application requires.
10 kg – 150 kgKg-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP65 Signal Analog Cable length 1.0 m Cable type 6-wire, PVC, single floating screen Rated output tolerance 0.2 ± mV/V Zero balance 0.2 ± mV/V Compensated temperature range -10 to +40 °C Safe temperature range -20 to +70 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 385 ± 15 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Platform size (max) 400 x 400 mm Rated output 2.0 mV/V CAPACITY TABLEAvailable capacities.

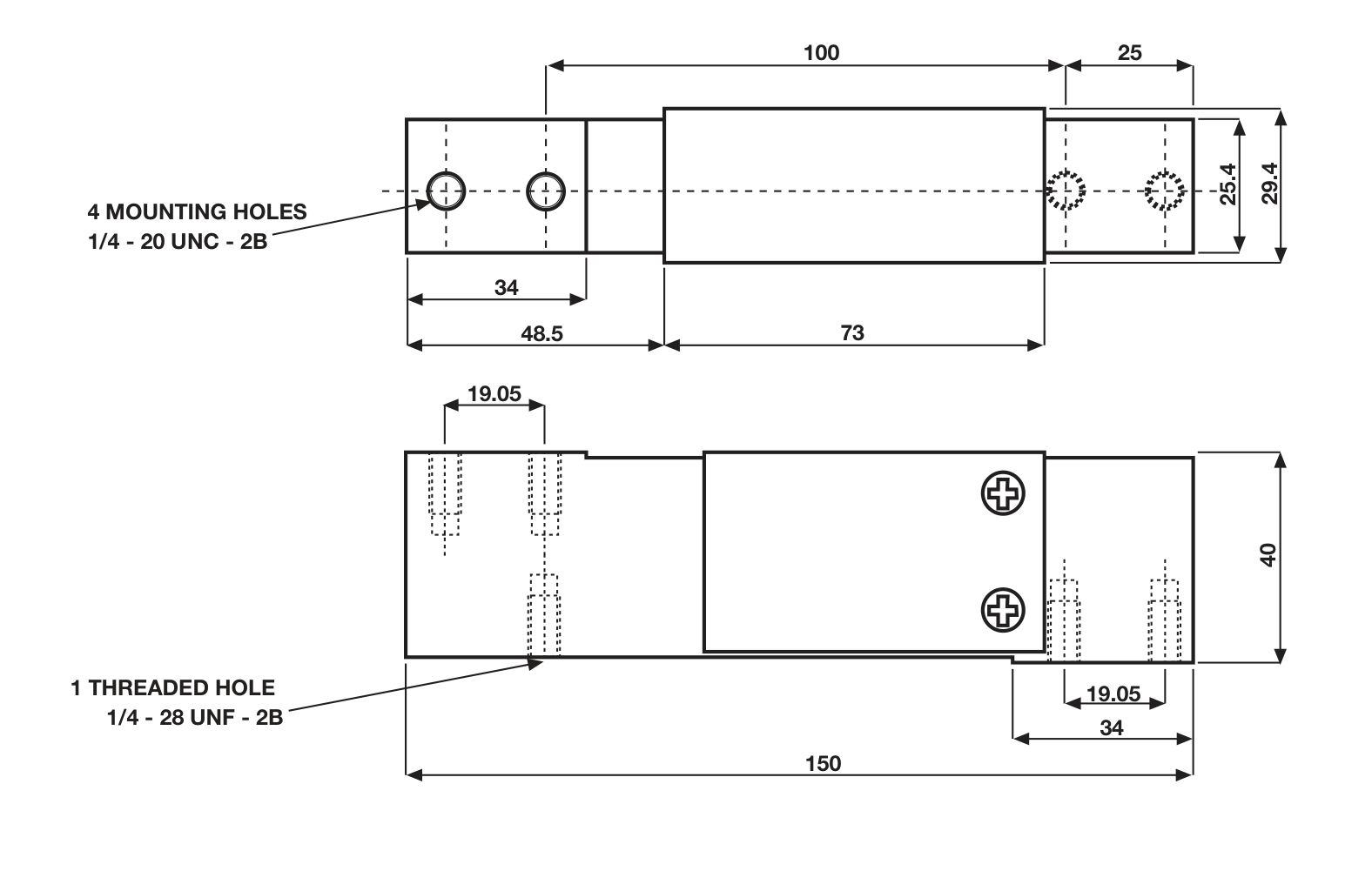

Capacity Manufacturer part number SKU Approval Price 10 kg 1140-0010-G002R 10201 — $320.00 15 kg 01140-015K-F0-01X 10202 — $721.00 20 kg 1140-20kg IP67 10203 — $320.00 30 kg 01140-030K-G0-02X 10204 — $426.00 50 kg 1140-50kg IP67 10205 — $320.00 75 kg 01140-075K-F0-01X 10206 — $426.00 100 kg 01140-100K-G0-02X 10207 — $320.00 150 kg 01140-150K-E0-02X 10208 — $699.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which 1140 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Stainless Steel Combined error ≤ ±0.020 %RO Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0170 % / 30 min Input impedance 385 ± 15 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Max platform size 400 × 400 mm Operating temp range −20 to +70 °C Output impedance 350 ± 3 Ω Recommended excitation 10 VDC / VAC RMS Ultimate central overload 300 %RC Zero balance ± 0.2 mV/V Number of Wires 6 wires Hero chips IP65; Stainless Steel; Analog signal; 6 wires
