LCD-25Klb Compression Load CellCeltron LCD-25Klb 00LCD-025E-E0-00X Compression Load Cell
- Description
- Additional Information
- 01 / 06Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Celtron LCD-25Klb 00LCD-025E-E0-00X Compression Load Cell is a compression, canister, rocker column, or ring torsion load cell rated 25K lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Celtron and the model / part number as 00LCD-025E-E0-00X.
25K lbRated capacityNickel-plated alloy steelMaterialIP67ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 25K lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Nickel-plated alloy steel Protection IP67 Signal Analog Cable length 1.0 ft / 0.3 m Manufacturer Vishay-Celtron Manufacturer part number 00LCD-025E-E0-00X Rated capacity 25K lb Capacity in pounds 25,000 lb Sealing Covered and Potted Approval FM intrinsically safe (Class I/II/III Div. 1) Thread Unified National Rated output 4.0 mV/V Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 385 ± 5 Ω (770 ± 10 Ω at 100k lb) Output impedance 350 ± 3 Ω (700 ± 5 Ω at 100k lb) Insulation resistance > 5000 MΩ Non-repeatability ≤ ±0.020 %RO Creep error ≤ ±0.030 %RO / 20 min Ultimate overload 300 %RC Operating temperature −20 to +60 °C Output sensitivity 4.0 mV/V Non-linearity ≤ ±0.050 %RO Hysteresis ≤ ±0.050 %RO Zero balance ± 1 %RO Compensated temperature −10 to +40 °C Safe side load 150 %RC 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Celtron LCD-25Klb 00LCD-025E-E0-00X Compression Load Cell 12089 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

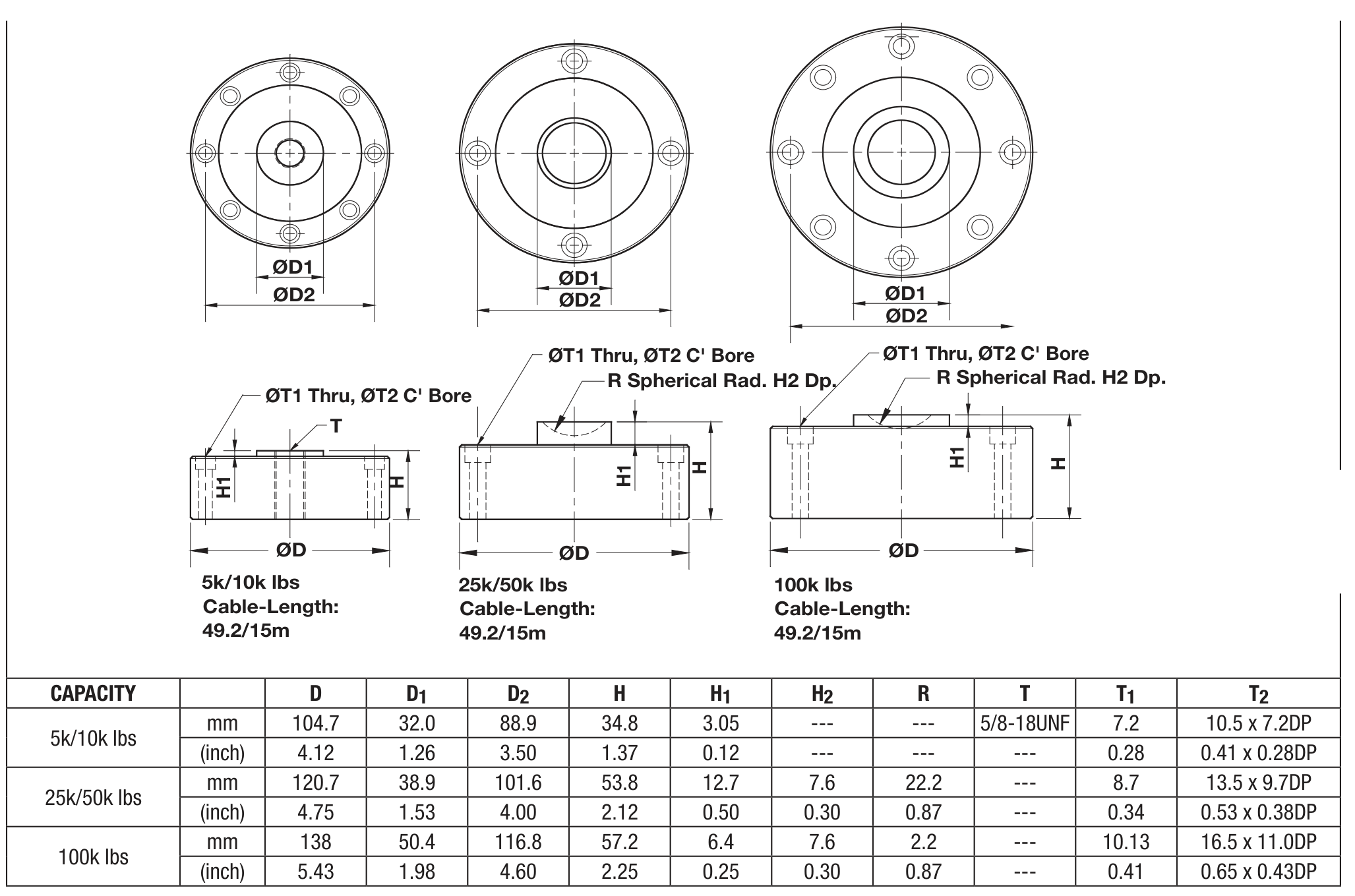

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12089 is the right fit.
