WT75-30 Remote Display

SKU 504231
IP20; 110VAC; WeightechUSA
420.00
☎ x305
$420.00
  • Weight repeater with 75 mm high red LED digits
  • RS232 or current loop, automatic selection
  • RS232 up to 15 m, current loop up to 1200 m
  • 600 (default) to 19200 bps, 8,N,1
  • 110-250 VAC, 50/60 Hz
  • Works with the Weightech indicator range

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 05WeightechUSA WT75-30 remote display

    Weight repeater with 75 mm LED digits, RS232 or current loop.

    The WeightechUSA WT75-30 (SKU 504231, WT-DISPLAY 75-30) is a parameterizable weight repeater with 75 mm high red LED matrix digits. It receives weight over RS232 or current loop (selected automatically) and is designed to work with the whole range of Weightech weight indicators.

    75mm
    Digit height
    1200m
    Current-loop cable length; RS232 up to 15 m
    110–250VAC
    Supply, 50/60 Hz
    490×204mm
    Outline size
    02 / 05Applications

    Where the WT75-30 is used.

    A remote display repeats the weight of an indicator where the operator or driver can see it. Typical uses:

    01

    Truck scales and weighbridges

    Large digits readable from the cab or from a distance.

    02

    Batching and process plants

    Shows the weight of a hopper or tank away from the indicator.

    03

    Floor and platform scales

    Second readout for the operator or the loading crew.

    03 / 05Communication

    Connects to Weightech indicators.

    01

    RS232 or current loop

    Mode selection is automatic. RS232 cable up to 15 m, current loop up to 1200 m.

    02

    Baud rates

    600 (standard), 1200, 2400, 4800, 9600 or 19200 bps, data format 8,N,1.

    03

    W02 and W06 protocols

    W02 (WT21) at RS232 9600,8,N,1 through a DR-Interface, or W06 Giant Display protocol at 1200,8,N,1.

    04

    Works with

    WT21-CS/CSI, WT21-P, NOVO WT21-MODBUS, WT21-MODBUS, WT21-I, WT21-LCD, WT3000-IR/ABS/DC, WT1000-LED/LCD, WTBT-BR, Pesonet and WT-Rodo software; WT27-R-GRAFICO over current loop.

    04 / 05Technical data

    WT75-30 specifications.

    Brand / modelWeightechUSA WT75-30 (WT-DISPLAY 75-30)
    SKU / part number504231
    DisplayRed LED dot matrix, 75 x 30
    Digit height75 mm
    CommunicationCurrent loop or RS232, automatic selection
    Baud rate600 (default), 1200, 2400, 4800, 9600, 19200 bps
    Data format8,N,1
    Maximum cable length15 m RS232; 1200 m current loop
    ProtocolsW02 (WT21) and W06 (Giant Display)
    Power supply110-250 VAC, 50/60 Hz
    Operating temperature-20 to 60 C
    ProtectionIP20
    Outline dimensions490 x 204 mm with brackets (housing 160 mm high), 39 mm deep
    MountingBrackets with 2 slots dia. 8 mm, 454 mm apart
    05 / 05Part number and FAQ

    Order code.

    ProductOrder code
    WeightechUSA WT75-30 remote display504231

    RS232 or current loop?

    Both. The display selects the mode automatically: RS232 up to 15 m, current loop up to 1200 m.

    What power supply does it need?

    110-250 VAC, 50/60 Hz.

    Which indicators does it work with?

    It is designed to work with the entire range of Weightech weight indicators; see the compatibility list above.

    DIMENSIONS

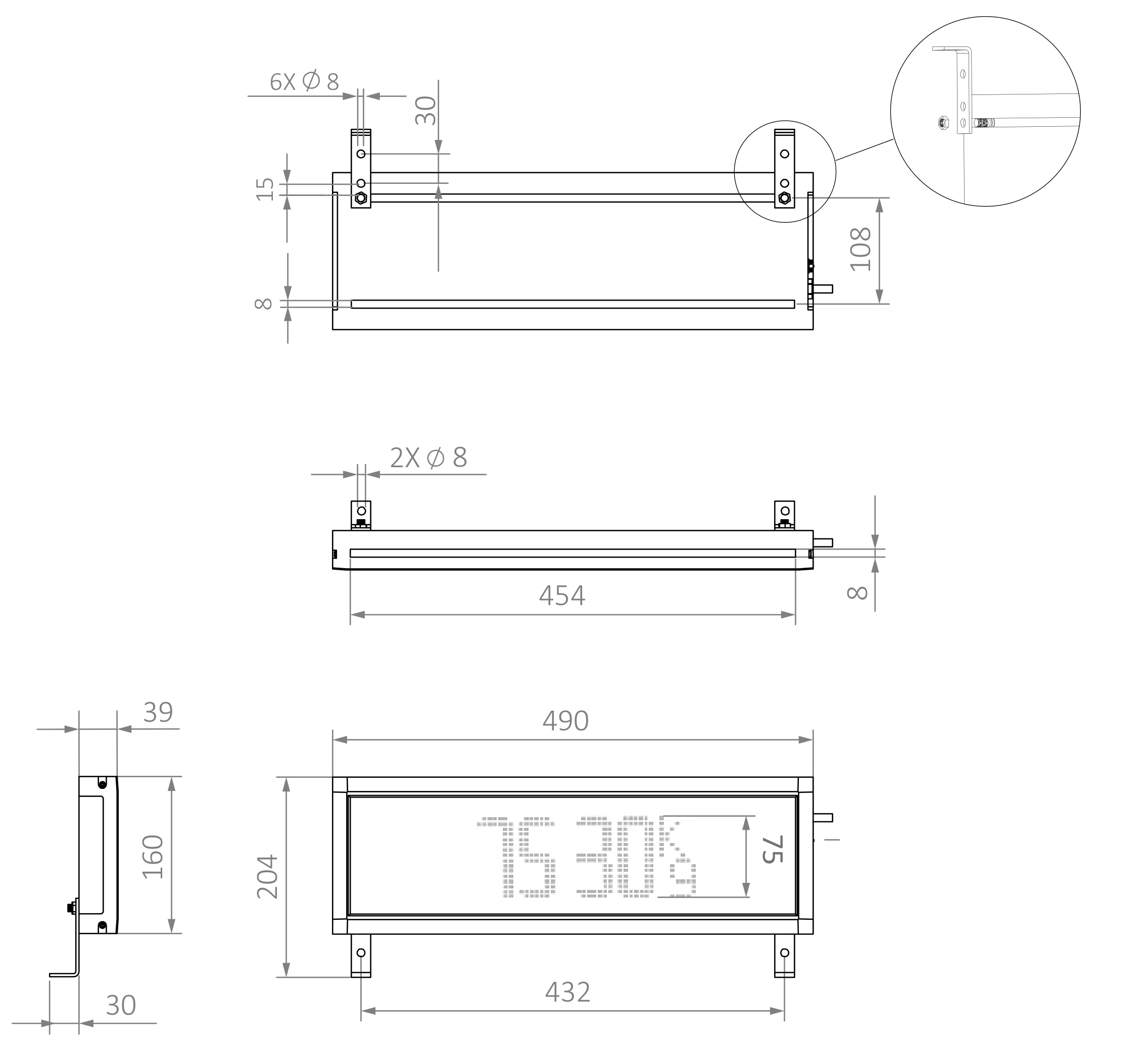

    Outline dimensions.

    WeightechUSA WT75-30 Remote Display, 75 mm LED Digits, RS232 / Current Loop, 110-250 VAC dimensions drawing
    Source: manufacturer datasheet
