WeightechUSA WT-Display Bi-Color LED Remote Display with Bar Graph, IP65
WeightechUSA · Accessory

WT-Display Remote Display

SKU wt-display
IP65; Carbon Steel; WeightechUSA
1,733.00
☎ x305
$1,733.00
  • Bi-color LED remote display for signs and traffic lights
  • Up to 10 characters and built-in dynamic bar graph
  • 1 built-in RS232 or RS485 port
  • Painted carbon steel, IP65, waterproof relief valve
  • 100–240 Vac, 50/60 Hz
  • Compatible with all WeightechUSA products

Datasheet  |  Technical Manual

OR
  • Description
  • Additional Information
  • 01 / 05WeightechUSA WT-Display remote display

    Bi-color LED remote display with built-in bar graph, IP65.

    The WeightechUSA WT-Display shows weight on up to 10 characters with a built-in dynamic bar graph, readable even over long distances and usable as a traffic light or sign. It is compatible with all WeightechUSA products, has one built-in RS232 or RS485 port, and its painted carbon-steel housing is rated IP65.

    10
    Characters plus bar graph
    IP65
    Dust- and water-resistant housing
    100–240Vac
    Power, 50/60 Hz
    915×266mm
    Face size
    02 / 05Applications

    Where the WT-Display is used.

    The datasheet lists these applications:

    01

    Truck scales

    Large, bright weight readout for the driver, including bi-color traffic-light and sign use.

    02

    Outdoor weighings

    Painted carbon-steel housing, IP65, rated for -25 to +70 °C.

    03

    Industrial patios and batch plants

    Visible in demanding environments, even over long distances.

    03 / 05Features

    What the WT-Display offers.

    01

    Bi-color LED

    Bi-color LEDs for signs and traffic lights, with a dynamic bar graph built in.

    02

    RS232 or RS485

    One built-in RS232 or RS485 standard; compatible with all WeightechUSA products. Parametrization by remote commands sent by serial.

    03

    Built for the weather

    Painted carbon steel, IP65, plus a waterproof relief valve for a longer lifespan.

    04 / 05Technical data

    WT-Display specifications.

    Brand / modelWeightechUSA WT-Display
    DisplayBi-color LED, up to 10 characters, built-in dynamic bar graph
    Communication1 built-in RS232 or RS485
    Voltage range100-240 Vac, 50/60 Hz
    Current consumption2 A at 115 Vac; 1.2 A at 230 Vac
    Operating temperature-25 to +70 C (-13 to +150 F)
    ProtectionIP65
    HousingPainted carbon steel, waterproof relief valve
    Dimensions915 x 266 mm face, 250 mm depth (36.02 x 10.47 x 9.84 in)
    Weight14 kg (31 lb)
    Fixing6 x M6 weld studs on the back of the unit
    ParametrizationRemote commands sent by serial
    05 / 05Models and FAQ

    Available model.

    ProductOrder code
    WeightechUSA WT-Display, White housing20123

    Which communication ports does it have?

    One built-in RS232 or RS485 port.

    Can it be used outdoors?

    Yes. It has a painted carbon-steel housing rated IP65, operates from -25 to +70 C and has a waterproof relief valve.

    Which WeightechUSA products is it compatible with?

    The datasheet states it is compatible with all WeightechUSA products.

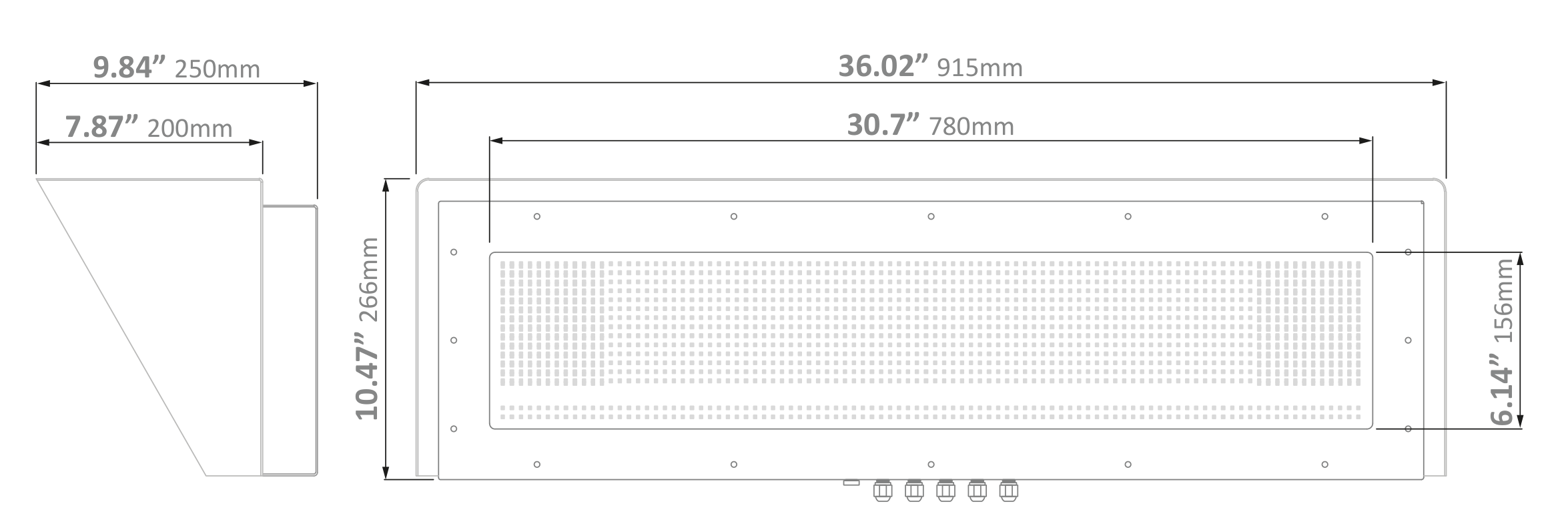

    DIMENSIONS

    Outline dimensions.

    WeightechUSA WT-Display Bi-Color LED Remote Display with Bar Graph, IP65 dimensions drawing
    Source: manufacturer datasheet
