Weightech WT6000 Programmable Indicator and Controller IP69K


  • Fully programmable, 266 MHz 32-bit ARM processor
  • Linux operating system, language C
  • 0.5 MB data memory with battery backup
  • Connection of up to 2 scales
  • Selectable update rate of 50–800 updates per second for scales with analog load cells
  • Standard interfaces: 10/100 Mbit/s Ethernet network
  • USB 2.0 interface to connect PC keyboard, printer, or USB memory stick
  • Stainless steel IP69K rated enclosure
  • Suitable for applications as Filling, Batching, Dosing, Truck Scale, Dynamic Checkweigher, etc
  • Desktop or Panel versions, 115-240V AC or 12-30V DC
  • Optional to connect to relays cards multiple of 8 In/Out and pulse count
  • Allows to create a database for products, recipes, price, etc
  • NTEP Certified

  • Description
  • Additional Information
  • WT6000 Programmable Industrial Weight Indicator, Batch, Truck, Dosage, IP69K

    Universal use

    The W&M approved WT6000 Weight Indicator is designed for demanding industrial applications in the chemical and pharmaceutical industry, in the food industry and in many other sectors of industry. The industrial design with the powerful modular hardware and the concept of free programmability make the WT6000 Weight Indicator the ideal weighing terminal for standard or application-specific solutions, e.g. for:

    • Shipping and receiving
    • Filling of liquid and solid material
    • Checkweighing
    • Dynamic weighing and batching systems
    • Vehicle weighing
    • Mobile data capture systems.

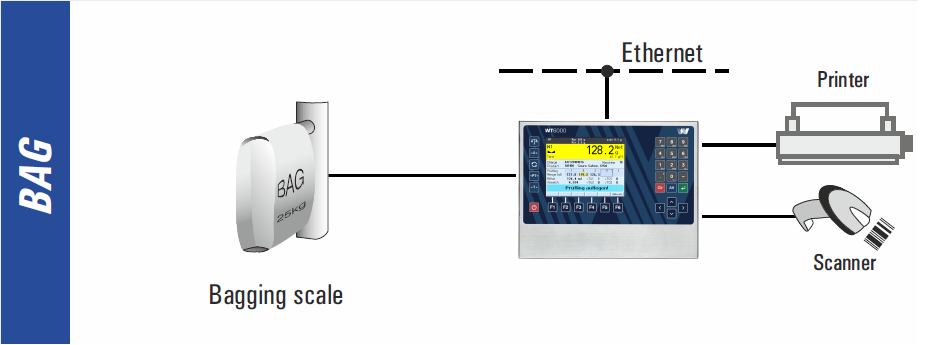

    Bagging scale
    Two-speed filling with preact optimization, files for product parameters and statistics, gross or net weight filling, operation as automatic or non-automatic scale.

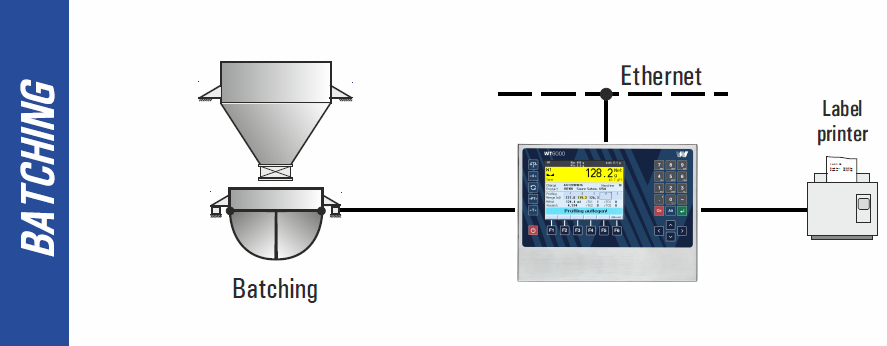

    Batch controller
    Batching control technology with powerful features. Works as a stand-alone terminal for one or two scales and flow meter.

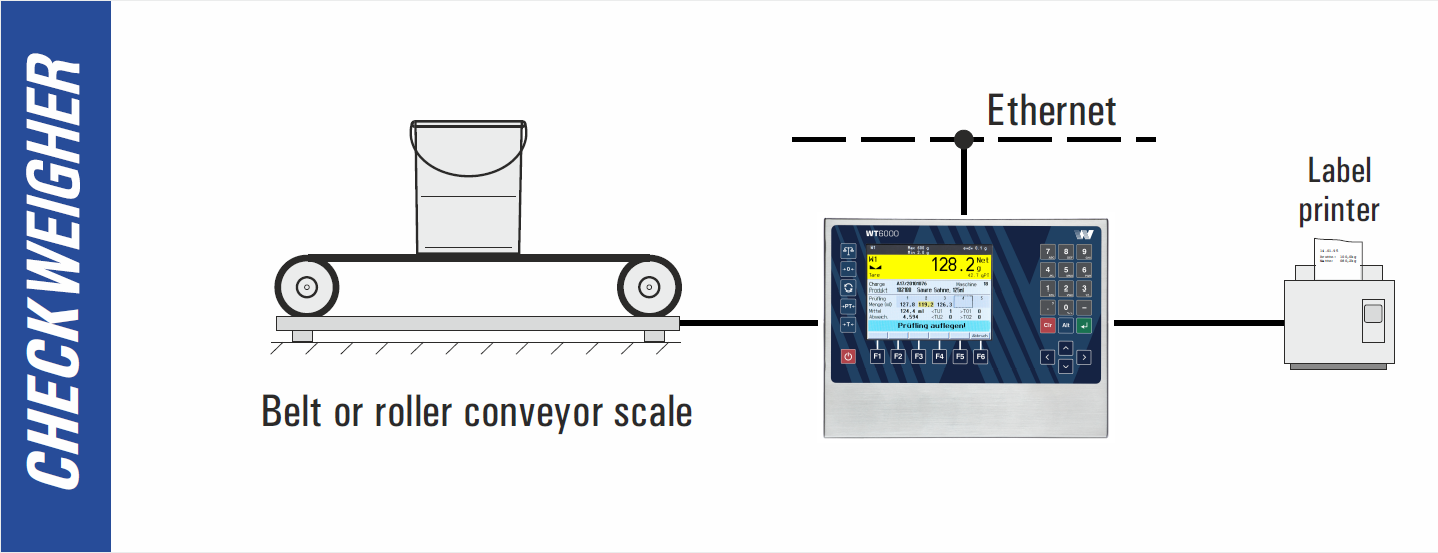

    Checkweighing scale
    Fast capturing of weights from scales with belt or roller conveyors, in continuous or start/stop operation, classification of test objects in 5 tolerance zones, control of rejecters or pushers possible, optional connection to printer for price labeling, with product and statistics file.
    Sample scale in compliance with the Regulations For Prepackaged Goods
    Capturing and printout of statistical data for 250 products on 20 production lines, check by weight or volume, with the entry of additional data.
    Parts counting terminal
    Capturing of piece weight via reference scale, parts counting in weigh-in or weigh-out mode, bar graph display, configurable printout and data transmission, with article file, item counter, memory for totals, automatic taring, plus/minus check and many more functions.

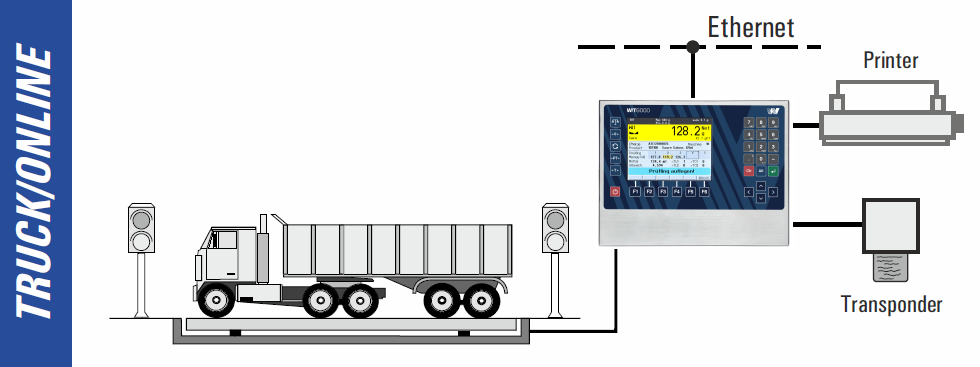

    Vehicle/Truck scale
    First, second and single-pass weighing, file management for customer, supplier and product data, internal W&M approved data archive, configurable print format, optional connection of transponder card readers, remote displays, traffic lights and full-size PC keyboard.

    Weighing electronics

    1 or 2 internal scale interfaces are possible. Adjustable update rate with up to 800 updates/second. High noise immunity of min. 10 V/m against radio frequency interference. W&M approved resolution of up to 6,000 d with max. 80 % preload. Calibration is possible as single or multiple-range (e.g. 3 x 3,000 d) and as multi-interval scale. Internal data archive for the storage of up to 120,000 weighing transactions.

    Modular concept

    The modular design provides for a variety of configurations and options, such as:

    • Enclosures for wall-mount, desk-top or panel-mount installation
    • DC or AC power supply
    • Connection of scales with analog or digital force transducers
    • 10/100 Mbit/s Ethernet interface with integrated web server, WLAN as option
    • Integrated USB 2.0 host interface for printer, scanner and USB stick
    • Up to 2 serial interfaces, RS232, RS485, RS422, 20mA CL selectable for connection of remote displays, transponder card readers, label printers, etc.
    • Flexible I/O concept for up to 64 inputs and outputs
    • Analog I/Os etc.

    This ensures that the optimal system configuration can be chosen, for stationary as well as mobile use.

    Free programmability

    Standard programs can be adapted to the requirements of specific applications. New programs can be designed and

    tested in a very simple way on a PC with the RTC program development environment.

    Simple integration

    The Linux based operating system with the integrated web server provides the ideal functionality for the integration of

    the WT6000 Weight Indicator into local area networks. WLAN communication and remote access via internet are also possible.
