Zemic HM14H Analog Rocker Column Load Cell
- Description
- Additional Information
- 01 / 07Compression, canister, rocker column, and ring torsion load cells
Compression, canister, rocker column, and ring torsion load cells for confirmed-fit replacement and scale builds.
The Zemic HM14H Analog Rocker Column Load Cell is a compression, canister, rocker column, or ring torsion load cell. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Zemic and the model / part number as Zemic-HM14H.
CapacityConfirm from applicationNickel Plated Alloy SteelMaterialIP68ProtectionAnalog (2 ± 0.002 mV/V)Signal02 / 07Application fitWhere this load cell belongs.
Compression cells cover canister, rocker-column, ring-torsion, and disk-style weighing for tanks, silos, truck scales, and high-capacity systems.
01Truck and tank scales
Compression geometry is common in high-capacity vehicle and vessel weighing.
compression02Outdoor and washdown service
Material and seal rating matter because compression cells often live under structures.
environment03Mount-dependent accuracy
Cup, mount, lift-off, and side-load details must be confirmed with the cell.
mount03 / 07Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm the rated capacity against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog (2 ± 0.002 mV/V). Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 07Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record

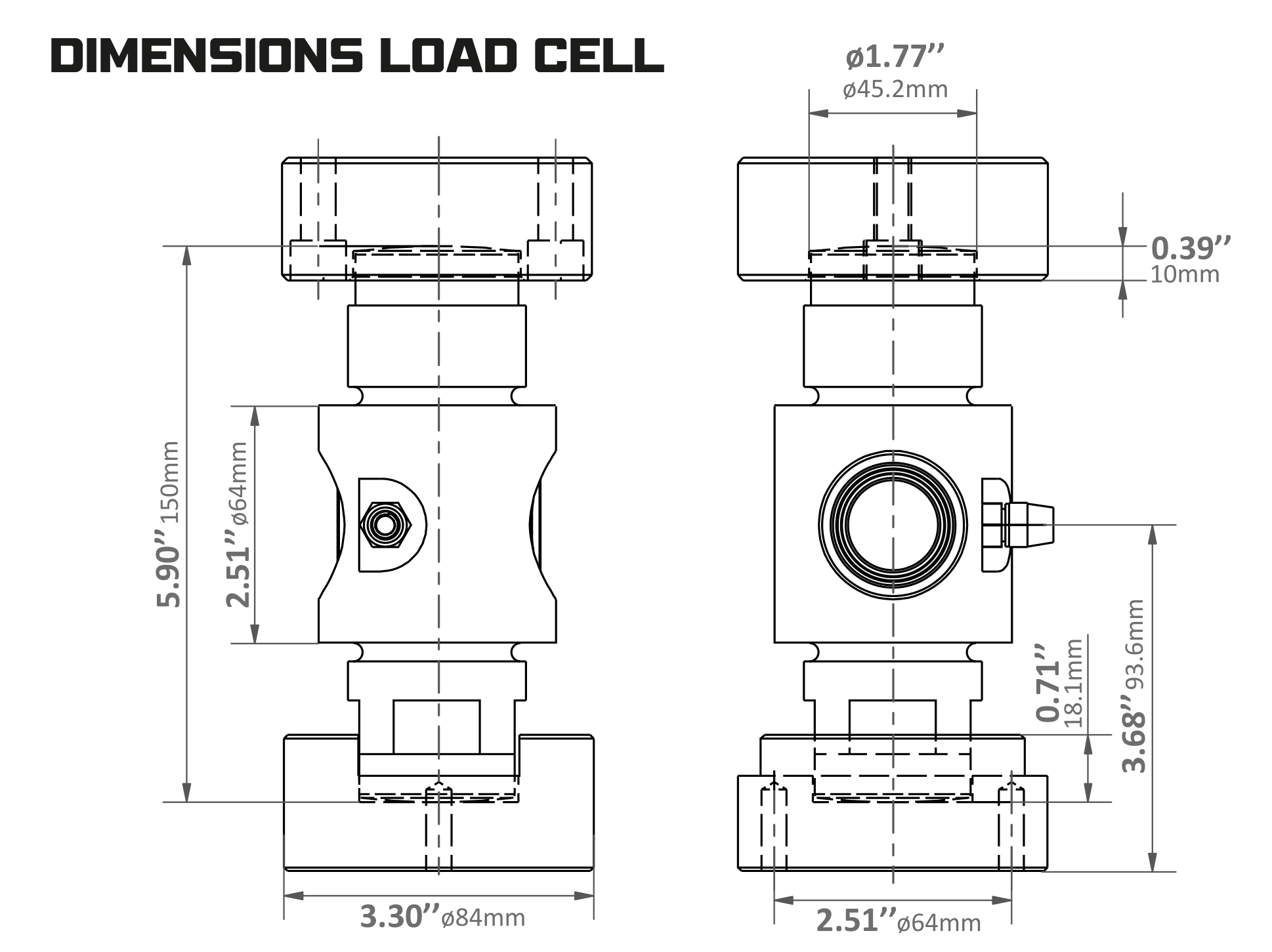

05 / 07Dimensions and connectionsUse the available images to confirm the mechanical envelope and cable connection.
Dimension reference 06 / 07Technical dataCatalog attributes for this load cell.
Material Nickel Plated Alloy Steel Protection IP68 Signal Analog (2 ± 0.002 mV/V) Cable length 20 m Manufacturer Zemic Accuracy C3 - OIML R76 Rated output 2 ± 0.002 mV/V Recommended excitation 5 to 12 V Safe overload 150 %FS 07 / 07Part number referenceOrder code and fit FAQ.
Product Order code Zemic HM14H Analog Rocker Column Load Cell Zemic-HM14H Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether Zemic-HM14H is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Nickel Plated Alloy Steel Communication interface RS485 Creep error 30 mins ± 0.025 Internal Battery No Maximum safe overload 150 %FS Rated output 2 ± 0.002 mV/V Recommended excitation 5 to 12 V Zero balance ± 1.0 Manufacturer Zemic Cable length 20 m Accuracy C3 - OIML R76 Repeatability ± 0.02
