BM14K-20t C3 Compression Load CellZemic BM14K 20 t Compression Load Cell (BM14K-C3-20t-12B6)
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.

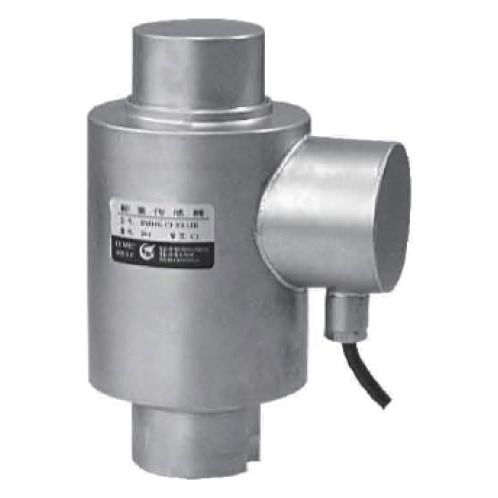

The Zemic BM14K-C3-20t-12B6 is the 20 t capacity Zemic BM14K, a stainless steel column compression load cell with an anti-reversal design and good self-aligning ability, for electronic platform scales, automobile testing facilities, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP68 ingress protection. This model is OIML R60 C3.
20 tRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM14K-C3-20t-12B6 Capacity 20 t Approval OIML R60 C3 Rated output 2.0 ± 0.02 mV/V Dimensions Ø74 × 150 mm Material Stainless steel, hermetically welded Protection IP68 Signal Analog Input resistance 700 ± 7 Ω Output resistance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) green, Sense (+) yellow, Output (−) red, Sense (−) blue, Input (−) black, Output (+) white Certificates PTB approval D09-07.02 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Cable 6-conductor shielded, 12 m, 5.0 mm diameter 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM14K 20 t Compression Load Cell (BM14K-C3-20t-12B6) 24251 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM14K capacities.

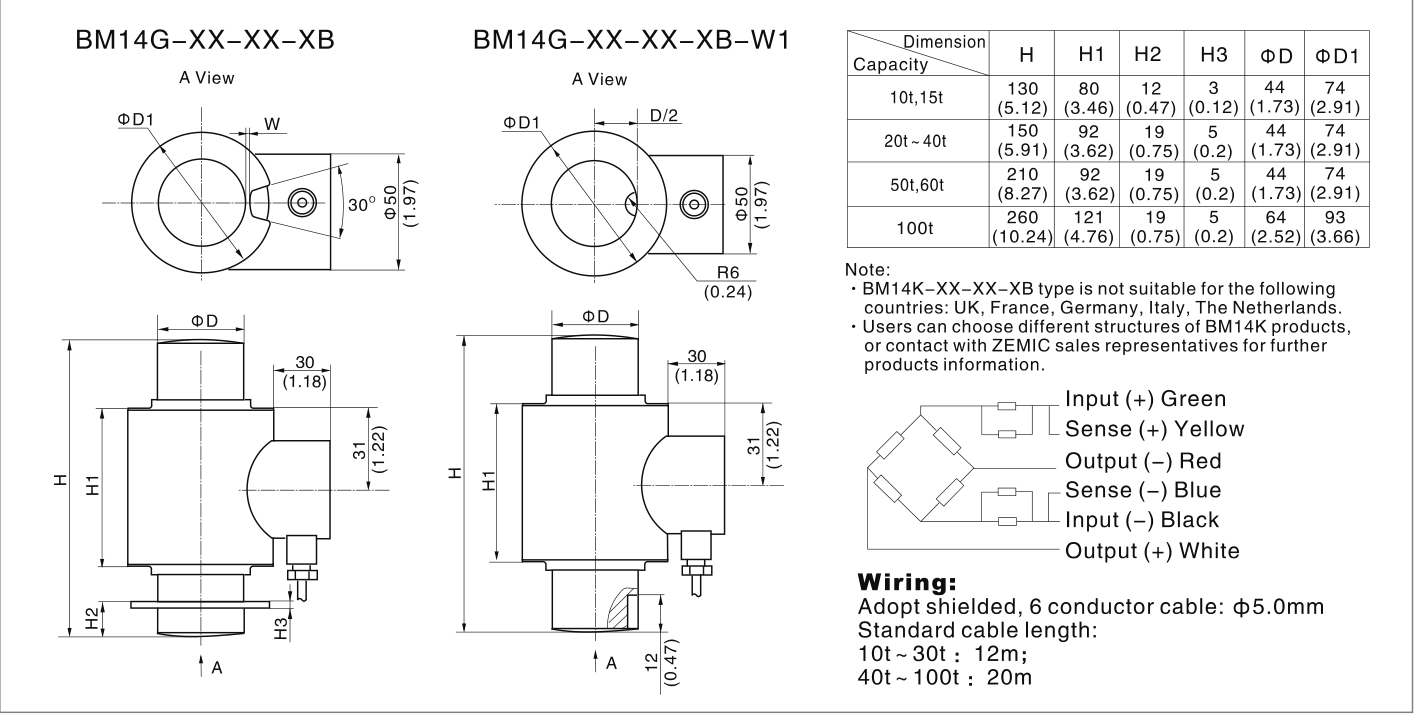

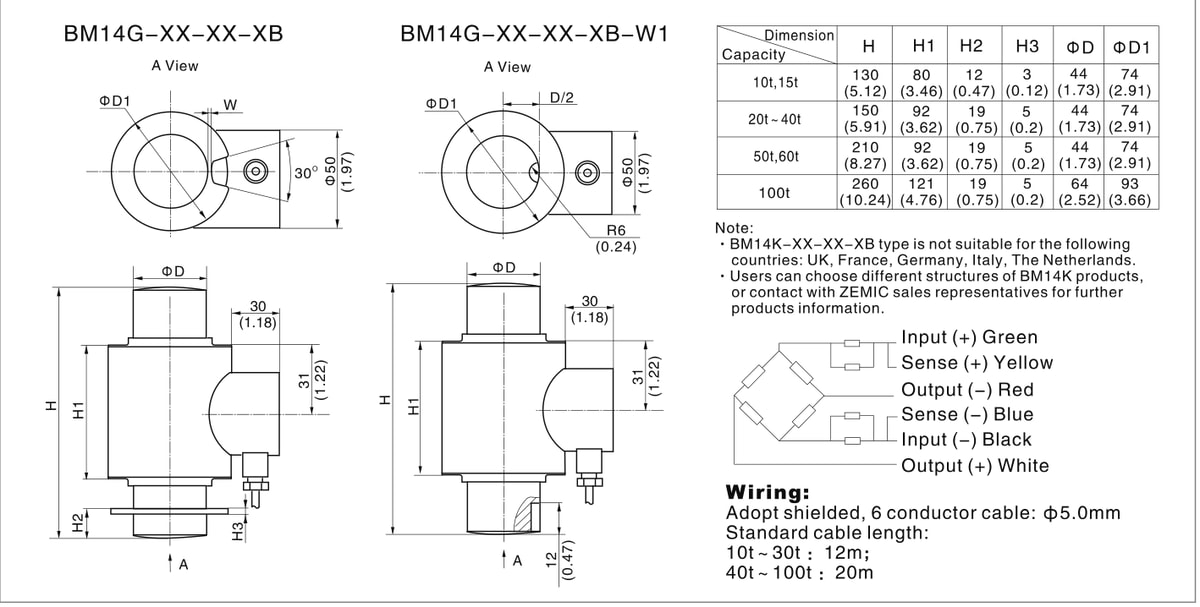

Capacity Manufacturer part number SKU Approval Price 10 t BM14K-C3-10t-12B6 24249 OIML R60 C3 $659.00 15 t BM14K-C3-15t-12B6 24250 OIML R60 C3 $659.00 30 t BM14K-C3-30t-12B6 24252 OIML R60 C3 $707.00 40 t BM14K-C3-40t-20B6 24253 OIML R60 C3 $739.00 50 t BM14K-C3-50t-20B6 24254 OIML R60 C3 $803.00 60 t BM14K-C3-60t-20B6 24255 OIML R60 C3 $803.00 100 t BM14K-C3-100t-20B6 24256 OIML R60 C3 $1,082.00 DIMENSIONSOutline dimensions.
Source: Zemic BM14K datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated capacity 20 t Rated output 2.0 ± 0.02 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number BM14K-C3-20t-12B6 Approval OIML R60 C3 Short name BM14K-20t C3 Compression Load Cell Hero chips IP68; Stainless Steel; Analog signal; OIML R60 C3; 6 wires
