BM3-2t C3 S-Type Load CellZemic BM3 2 t S-Type Load Cell (BM3-C3-2.0t-6B)
SKU 24160
IP68; Stainless Steel; Analog signal; 4 wires
395.00
- Description
- Additional Information
- 01 / 03S-Type Load Cell
S-Type Load Cell for confirmed-fit replacement and scale builds.
The Zemic BM3-C3-2.0t-6B is the 2 t capacity Zemic BM3, a hermetically welded stainless steel S-beam load cell for tension and compression, for electronic crane scales, hopper scales and other electronic weighing devices, manufactured in stainless steel with IP68 ingress protection.
2 tRated capacityStainless SteelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number BM3-C3-2.0t-6B Capacity 2 t Rated output 2.0 ± 0.004 mV/V Dimensions 86 × 32 × 92 mm Material Stainless steel, hermetically welded S-beam Protection IP68 Signal Analog Input resistance 350 ± 3.5 Ω Output resistance 351 ± 2.0 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.5 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Wiring Input (+) red, Input (−) black, Output (+) green, Output (−) white Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Cable 4-conductor shielded, 6 m, 5 mm diameter Mounting 2 × M20 × 1.5-6H threaded holes 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic BM3 2 t S-Type Load Cell (BM3-C3-2.0t-6B) 24160 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther BM3 capacities.

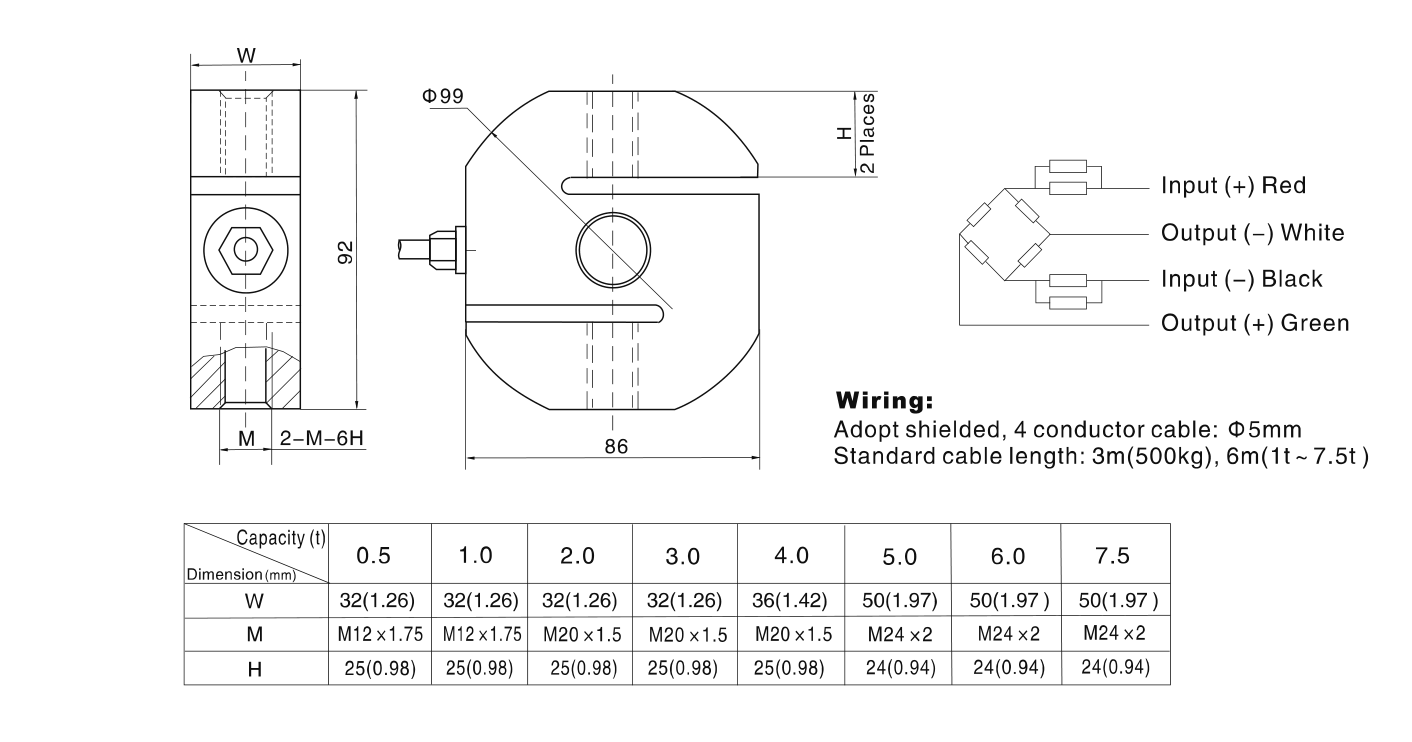

Capacity Manufacturer part number SKU Price 500 kg BM3-C3-500kg-3B 24158 $395.00 1 t BM3-C3-1.0t-6B 24159 $395.00 3 t BM3-C3-3.0t-6B 24161 $395.00 4 t BM3-C3-4.0t-6B 24162 $395.00 5 t BM3-C3-5.0t-6B 24163 $479.00 6 t BM3-C3-6.0t-6B 24164 $479.00 DIMENSIONSOutline dimensions.
Source: Zemic BM3 datasheet Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 351 ± 2.0 Ω Rated capacity 2 t Rated output 2.0 ± 0.004 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.5 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number BM3-C3-2.0t-6B Short name BM3-2t C3 S-Type Load Cell Hero chips IP68; Stainless Steel; Analog signal; 4 wires
