H2A-2MN G2 Compression Load CellZemic H2A 2 MN Compression Load Cell (H2A-G2-2MN-5T)
SKU 24283
IP67; Nickel-Plated Alloy Steel; Analog signal; 4 wires
4,197.00
- Description
- Additional Information
- 01 / 03Compression Load Cell
Compression Load Cell for confirmed-fit replacement and scale builds.
The Zemic H2A-G2-2MN-5T is the 2 MN capacity Zemic H2A, a high-accuracy compression load cell for special measuring equipment, manufactured in nickel-plated alloy steel with IP67 ingress protection.
2 MNRated capacityNickel-Plated Alloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H2A-G2-2MN-5T Capacity 2 MN Rated output ≥ 2.0 mV/V Dimensions Ø 290 × 104 mm Material Nickel-plated alloy steel, compression Protection IP67 (EN 60529) Signal Analog Input resistance 1072 ± 5 Ω Output resistance 1050 ± 5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded crosslinked polyethylene, AWG 24, 5 m, 5.0 mm diameter, shield not connected to element Wiring Excitation (+) red, Excitation (−) black, Signal (+) green, Signal (−) white, shield transparent Accuracy class G2 (not OIML approved) Minimum verification interval (vmin) Emax/1500 Combined error ≤ ±0.2 %FS Creep (30 min) ≤ ±0.05 %FS Temperature effect on sensitivity ≤ ±0.2 %FS/10 °C Temperature effect on zero ≤ ±0.2 %FS/10 °C Mounting 4 × M16 threaded holes, 23 mm deep, on Ø 225 mm hole circle; recommended bolt torque 200 N·m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H2A 2 MN Compression Load Cell (H2A-G2-2MN-5T) 24283 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H2A capacities.
Capacity Manufacturer part number SKU Price 1 MN H2A-G2-1MN-5T 24282 $3,184.00 3 MN H2A-G2-3MN-5T 24284 $4,776.00 4 MN H2A-G2-4MN-5T 24285 $5,934.00 5 MN H2A-G2-5MN-5T 24286 $7,237.00 DIMENSIONSOutline dimensions.

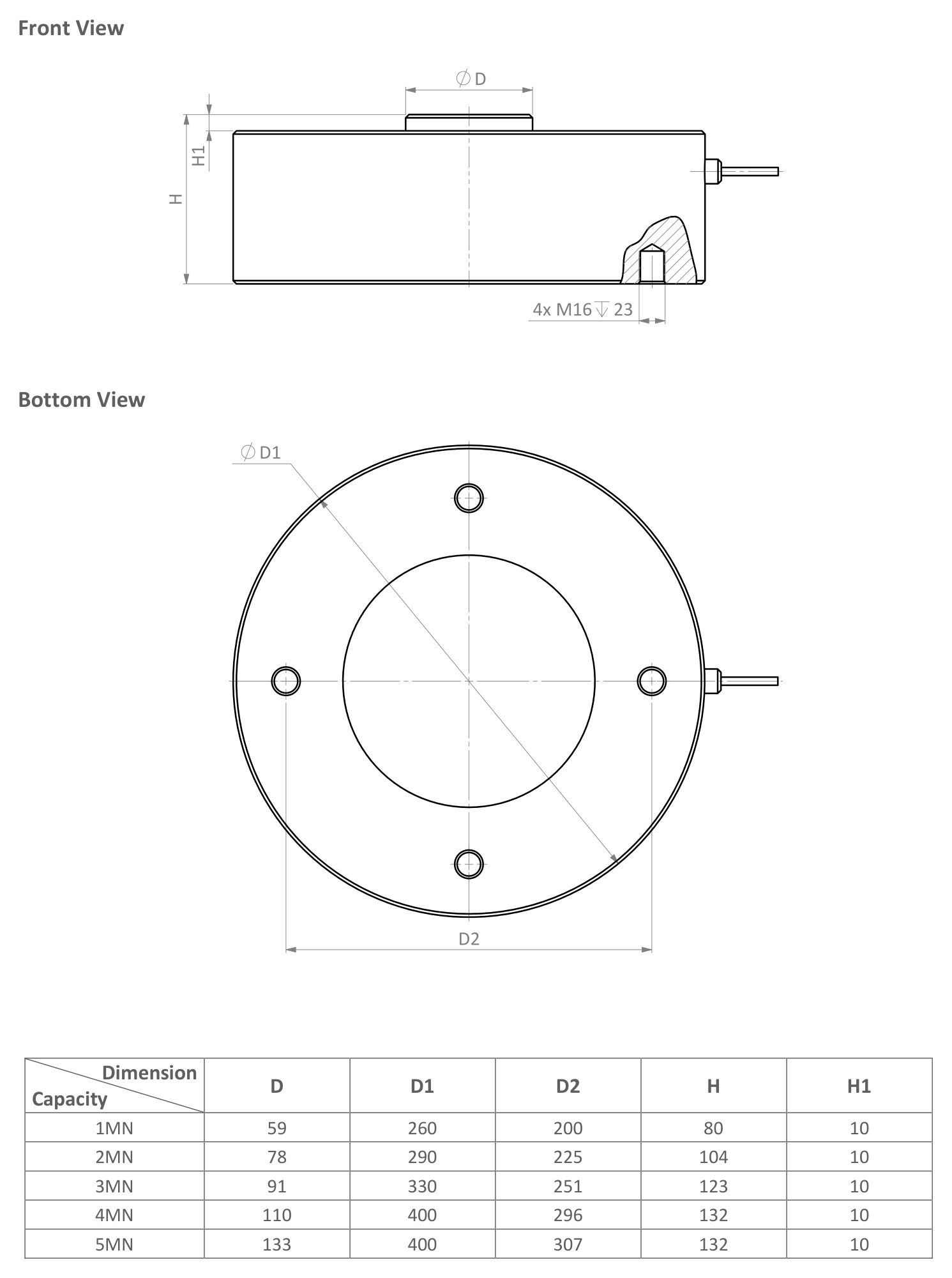

Source: Zemic H2A datasheet Signal Analog Protection class IP67 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.2 %FS (G2) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.05 %FS / 30 min (G2) Input impedance 1072 ± 5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 1050 ± 5 Ω Rated capacity 2 MN Rated output ≥ 2.0 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance ≤ ±1.0 %FS Manufacturer Zemic Accuracy G2 Number of Wires 4 wires Manufacturer's Part Number H2A-G2-2MN-5T Short name H2A-2MN G2 Compression Load Cell Hero chips IP67; Nickel-Plated Alloy Steel; Analog signal; 4 wires
