Zemic · Load cell
H8Q-1t C3 Shear Beam Load CellZemic H8Q 1 t Shear Beam Load Cell (H8Q-C3-1t-4B)
SKU 24169
IP67; Alloy Steel; Analog signal; 4 wires
258.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Zemic H8Q-C3-1t-4B is the 1 t capacity Zemic H8Q, a low-profile single shear beam load cell, adhesive-sealed against oil, water and corrosion, for electronic platform scales, hopper scales, floor scales and other electronic weighing devices, manufactured in alloy steel with IP67 ingress protection.
1 tRated capacityAlloy SteelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number H8Q-C3-1t-4B Capacity 1 t Rated output 2.0 ± 0.002 mV/V Dimensions 128.5 × 31.8 × 19.1 mm Material Alloy steel, adhesive-sealed inside Protection IP67 Signal Analog Input resistance 1106 ± 5 Ω Output resistance 1000 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 1.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Cable 4-conductor shielded, Ø5 mm Wiring Input (+) red, Output (−) white, Input (−) black, Output (+) green Accuracy class C3 Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.016 %FS Temperature effect on sensitivity ≤ ±0.011 %FS/10 °C Temperature effect on zero ≤ ±0.015 %FS/10 °C Mounting 2 × Ø13 mm through holes; M12-6H threaded load hole 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic H8Q 1 t Shear Beam Load Cell (H8Q-C3-1t-4B) 24169 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther H8Q capacities.

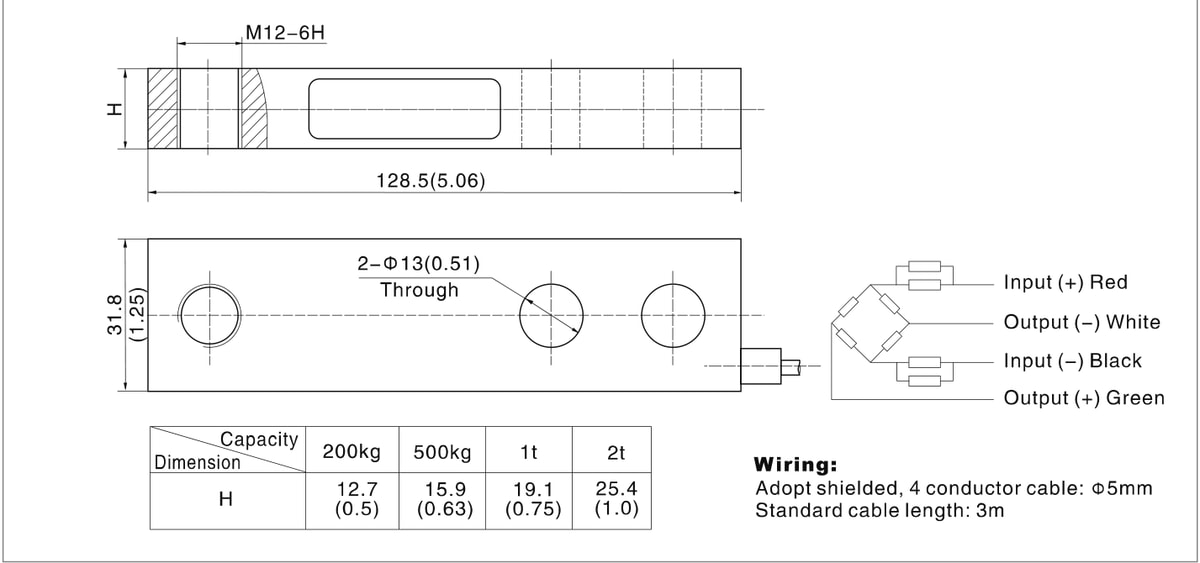

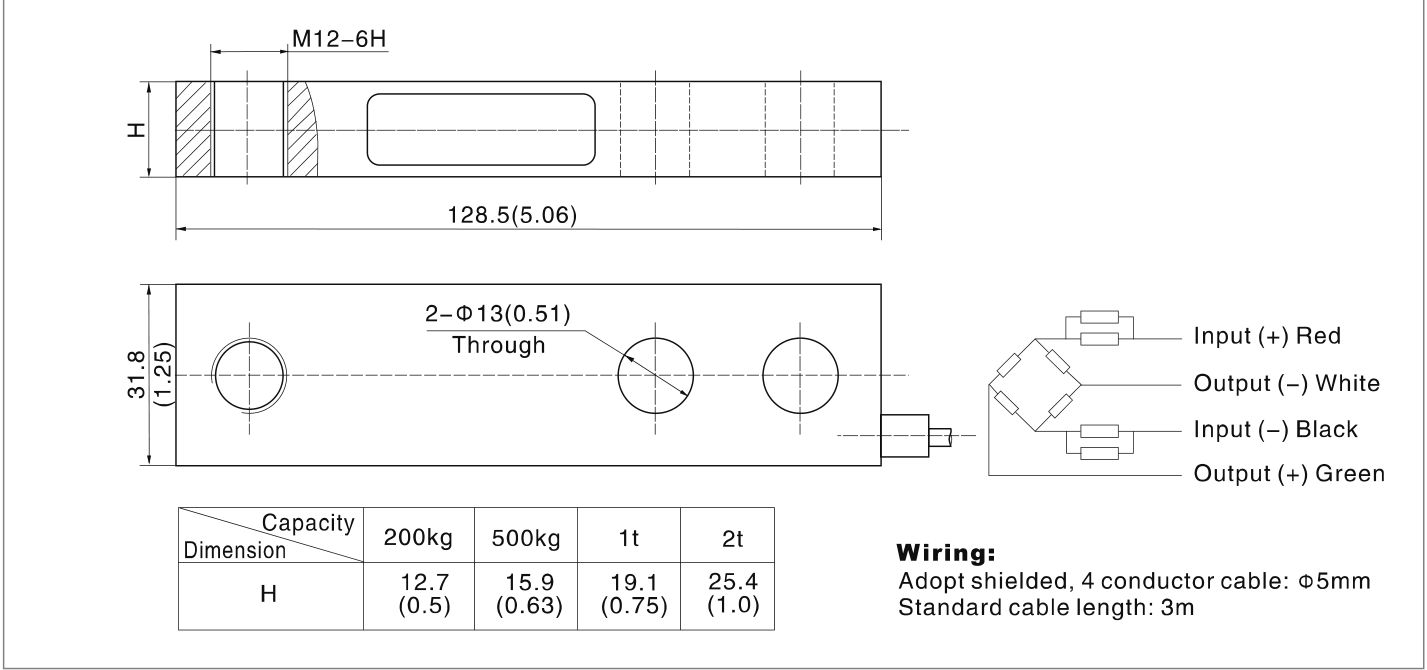

Capacity Manufacturer part number SKU Price 500 kg H8Q-C3-500Kg-4B 24168 $258.00 2 t H8Q-C3-2t-4B 24170 $258.00 DIMENSIONSOutline dimensions.
Source: Zemic H8Q datasheet Signal Analog Protection class IP67 Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 1106 ± 5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Operating temp range −35 to +65 °C Output impedance 1000 ± 3 Ω Rated capacity 1 t Rated output 2.0 ± 0.002 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 1.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 4 wires Manufacturer's Part Number H8Q-C3-1t-4B Short name H8Q-1t C3 Shear Beam Load Cell Hero chips IP67; Alloy Steel; Analog signal; 4 wires
