H9H Shear Beam Load CellZemic H9H Double-Ended Shear Beam Load Cell
SKU Zemic-h9h
IP67; Alloy Steel; Analog signal; NTEP, OIML R60 C3; 9m cable
750.00
- Description
- Additional Information
- 01 / 02Double-Ended Beam Load Cell
Zemic H9H double-ended beam load cell family.
The Zemic H9H is a double-ended beam load cell family. This page describes the family; use the table below to select the SKU your application requires.
50,000 lb – 100,000 lbLb-line capacity rangeAlloy steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Alloy steel Protection IP67 Signal Analog Input impedance 700 ± 7 Ω Output impedance 703 ± 4 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ± 1.0 %FS Safe overload 150 %FS Ultimate overload 300 %FS Recommended excitation 5-12 VDC Maximum excitation 18 VDC Compensated temperature −10 to +40 °C Operating temperature −35°C to +65°C Rated output 3.0 ± 0.003 mV/V CAPACITY TABLEAvailable capacities.

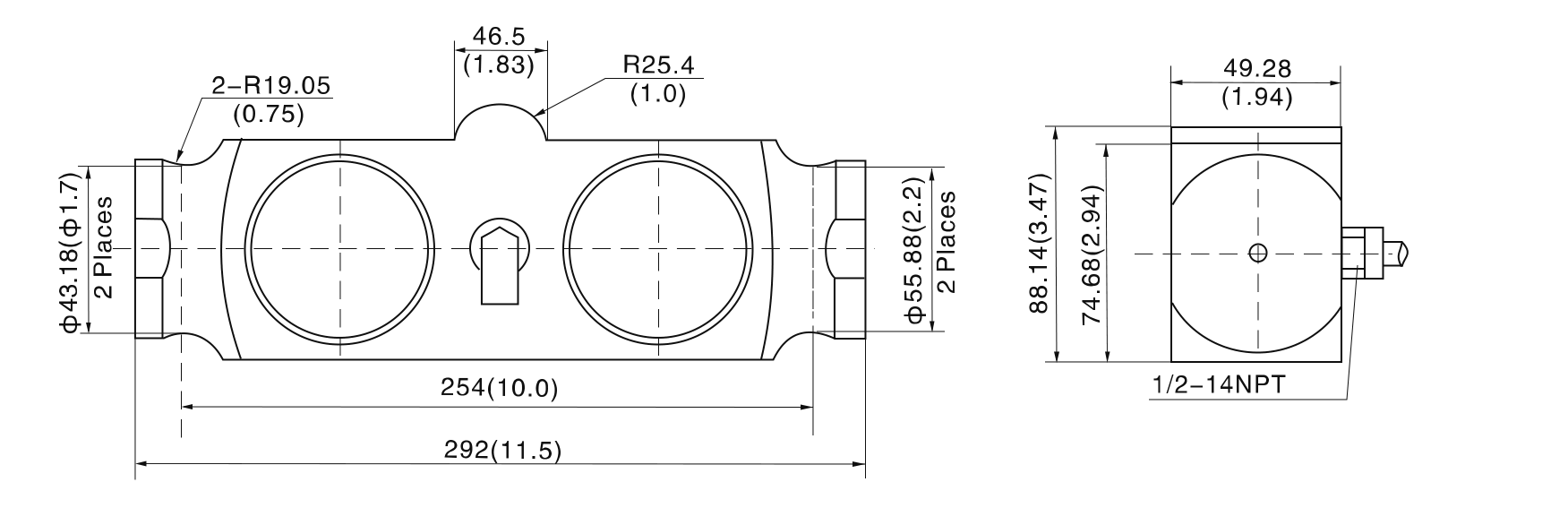

Capacity Manufacturer part number SKU Approval Price 50,000 lb H9H-N10-50K-9B 23300 NTEP Class III $790.00 60,000 lb H9H-N10-60K-9B 23301 NTEP Class III $790.00 75,000 lb H9H-N10-75K-9B 23302 NTEP Class III $790.00 100,000 lb H9H-N10-100K-9B 23303 NTEP Class III $790.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which H9H SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Alloy Steel Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.016 %FS / 30 min (C3) Input impedance 700 ± 7 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Excitation voltage 5~12 VDC Maximum excitation 18 VDC Maximum safe overload 150 %FS NTEP/OIML NTEP Class III, 10,000 divisions · OIML R60 C3 Operating temp range −35 to +65 °C Output impedance 703 ± 4 Ω Rated output 3.0 ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Manufacturer Zemic Cable length 9m Interchangeable Artech 80310, Celtron DLB, Coti BE40, Rice Lake RL75040, Sensortronics 65040A, Thurman TSC840, Totalcomp TDE40 Number of Wires 4 wires Manufacturer's Part Number H9N-N10-200K-9B, H9N-N10-150K-9B, H9N-N10-125K-9B, H9N-N10-100K-9B, H9N-N10-75K-9B, H9N-N10-60K-9B, H9N-N10-50K-9B, H9N-N10-40K-9B, H9N-N10-25K-9B, H9H-N10-75K-9B, H9H-N10-60K-9B, H9H-N10-50K-9B, H9H-N10-100K-9B Approval NTEP, OIML R60 C3 Short name H9H Shear Beam Load Cell Hero chips IP67; Alloy Steel; Analog signal; NTEP, OIML R60 C3; 9m cable
