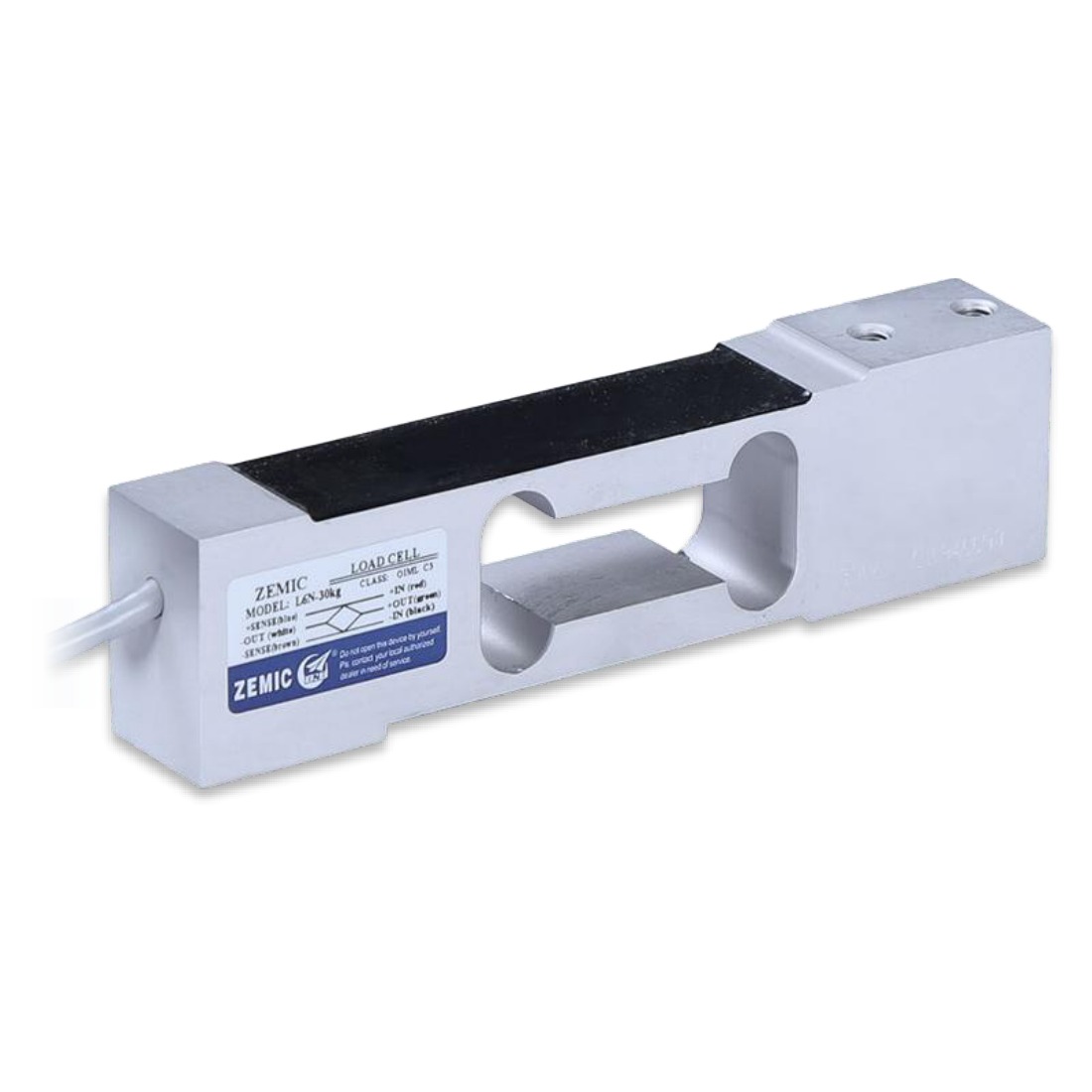

L6N-20kg C3 Single Point Load CellZemic L6N 20 kg Single Point Load Cell (L6N-C3-20kg-3YB6)
SKU 24045
IP65; Aluminum; Analog signal; OIML R60 C3; 6 wires
69.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6N-C3-20kg-3YB6 is the 20 kg capacity Zemic L6N, a colourless-anodized aluminum single point load cell for platform scales built on one or two load cells, manufactured in aluminum with IP65 ingress protection. This model is OIML R60 C3.
20 kgRated capacityAluminumMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6N-C3-20kg-3YB6 Capacity 20 kg Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 150.11 × 25.4 × 40.13 mm Material Aluminum, colourless anodized Protection IP65 (EN 60529) Signal Analog Input resistance 406 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance ≤ ±2.0 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 15 VDC Maximum excitation 18 VDC Safe overload 120 %FS Ultimate overload 150 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 6-conductor shielded PVC, AWG 26, 3.0 ± 0.05 m, 4.8 ± 0.2 mm diameter, shield not connected to element Wiring Excitation (+) red, Excitation (−) black, Signal (+) green, Signal (−) white, Sense (+) blue, Sense (−) brown Certificates OIML test certificates D09-06.11 Rev. 1 and TC12195 Rev. 0; OIML C of C R60/2017-A-NL1-22.10; NTEP certificate 11-055 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/10000 Combined error ≤ ±0.0230 %FS Creep (30 min) ≤ ±0.0167 %FS Temperature effect on sensitivity ≤ ±0.0175 %FS/10 °C Temperature effect on zero ≤ ±0.0140 %FS/10 °C Maximum platform size 400 × 400 mm Mounting 7 × 1/4-20UNC threaded holes, 15 mm deep; recommended bolt torque 10 N·m 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6N 20 kg Single Point Load Cell (L6N-C3-20kg-3YB6) 24045 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6N capacities.

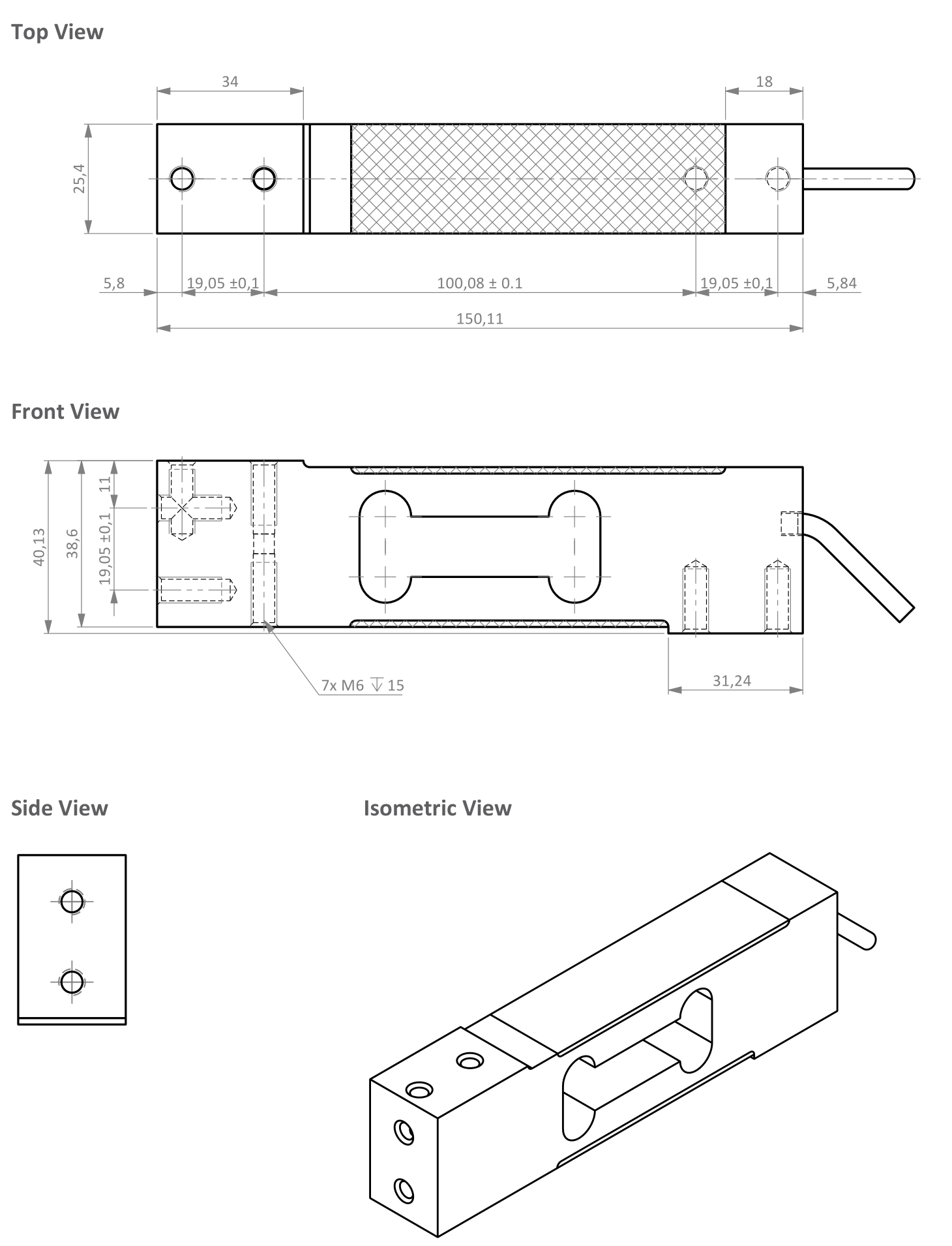

Capacity Manufacturer part number SKU Approval Price 3 kg L6N-C3-3kg-3YB6 24040 OIML R60 C3 $69.00 5 kg L6N-C3-5kg-3YB6 24041 OIML R60 C3 $69.00 8 kg L6N-C3-8kg-3YB6 24042 OIML R60 C3 $69.00 10 kg L6N-C3-10kg-3YB6 24043 OIML R60 C3 $69.00 15 kg L6N-C3-15kg-3YB6 24044 OIML R60 C3 $69.00 30 kg L6N-C3-30kg-3YB6 24046 OIML R60 C3 $69.00 50 kg L6N-C3-50kg-3YB6 24047 OIML R60 C3 $69.00 100 kg L6N-C3-100kg-3YB6 24048 OIML R60 C3 $69.00 DIMENSIONSOutline dimensions.
Source: Zemic L6N datasheet Signal Analog Protection class IP65 Material Aluminum Combined error ≤ ±0.0230 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0167 %FS / 30 min (C3) Eccentric loading error 0.02 %LD/100 mm Input impedance 406 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 120 %FS Max platform size 400 × 400 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 20 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 15 VDC Ultimate central overload 150 %FS Zero balance ≤ ±2.0 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number L6N-C3-20kg-3YB6 Approval OIML R60 C3 Short name L6N-20kg C3 Single Point Load Cell Hero chips IP65; Aluminum; Analog signal; OIML R60 C3; 6 wires
