L6Q-150kg C3 Single Point Load CellZemic L6Q 150 kg Single Point Load Cell (L6Q-C3-150kg-3YB6)
SKU 24056
IP66; Aluminum; Analog signal; OIML R60 C3; 6 wires
136.00
- Description
- Additional Information
- 01 / 03Single Point Load Cell
Single Point Load Cell for confirmed-fit replacement and scale builds.
The Zemic L6Q-C3-150kg-3YB6 is the 150 kg capacity Zemic L6Q, a parallel-beam single point load cell for electronic pricing scales, platform scales and other electronic weighing devices, manufactured in aluminum with IP66 ingress protection. This model is OIML R60 C3.
150 kgRated capacityAluminumMaterialIP66Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Zemic Manufacturer part number L6Q-C3-150kg-3YB6 Capacity 150 kg Approval OIML R60 C3 Rated output 2.0 ± 0.2 mV/V Dimensions 150 × 44 × 38.1 mm Material Aluminum, anodized, silicone-sealed parallel beam, stainless steel cover Protection IP66 Signal Analog Input resistance 406 ± 6 Ω Output resistance 350 ± 3 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Zero balance 2 %FS Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Recommended excitation 5 to 12 VDC Maximum excitation 18 VDC Safe overload 150 %FS Ultimate overload 300 %FS Corner (eccentric load) correction 0.02 % of load value per 100 mm Cable 6-conductor shielded PVC, 3 ± 0.05 m, 5.0 ± 0.2 mm diameter Wiring Input (+) red, Sense (+) blue, Output (−) white, Sense (−) brown, Input (−) black, Output (+) green Certificates PTB approval D09-07.06 Accuracy class C3 (OIML R60 C3) Maximum verification intervals (nmax) 3000 Minimum verification interval (vmin) Emax/7000 Combined error ≤ ±0.020 %FS Creep (30 min) ≤ ±0.0167 %FS Temperature effect on sensitivity ≤ ±0.0175 %FS/10 °C Temperature effect on zero ≤ ±0.020 %FS/10 °C Maximum platform size 400 × 400 mm Mounting 8 × 1/4-20UNC threaded holes, 13 mm deep 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Zemic L6Q 150 kg Single Point Load Cell (L6Q-C3-150kg-3YB6) 24056 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305CAPACITY TABLEOther L6Q capacities.

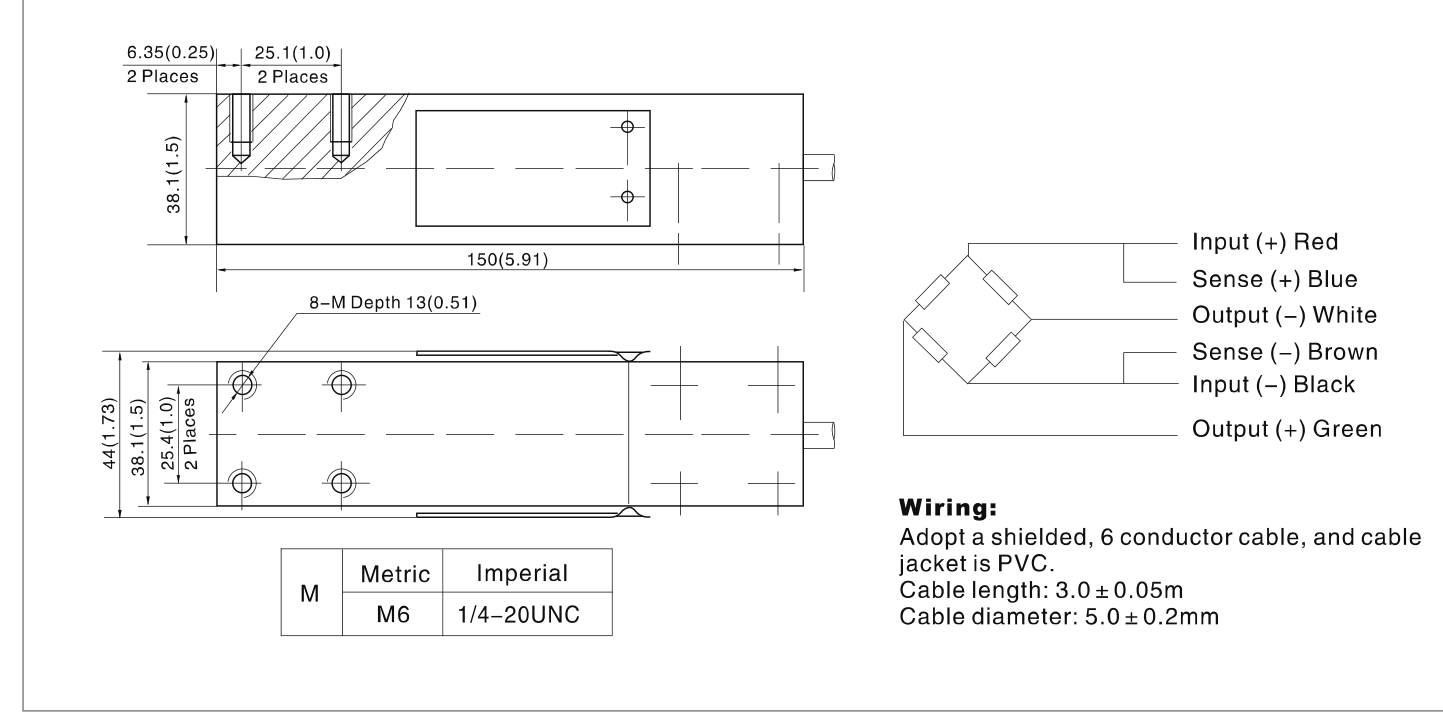

Capacity Manufacturer part number SKU Approval Price 50 kg L6Q-C3-50kg-3B6 24049 OIML R60 C3 $136.00 100 kg L6Q-C3-100kg-3B6 24050 OIML R60 C3 $136.00 150 kg L6Q-C3-150kg-3B6 24051 OIML R60 C3 $136.00 200 kg L6Q-C3-200kg-3B6 24052 OIML R60 C3 $136.00 250 kg L6Q-C3-250kg-3B6 24053 OIML R60 C3 $136.00 50 kg L6Q-C3-50kg-3YB6 24054 OIML R60 C3 $136.00 100 kg L6Q-C3-100kg-3YB6 24055 OIML R60 C3 $136.00 200 kg L6Q-C3-200kg-3YB6 24057 OIML R60 C3 $136.00 250 kg L6Q-C3-250kg-3YB6 24058 OIML R60 C3 $136.00 DIMENSIONSOutline dimensions.
Source: Zemic L6Q datasheet Signal Analog Protection class IP66 Material Aluminum Combined error ≤ ±0.020 %FS (C3) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0167 %FS / 30 min (C3) Eccentric loading error 0.02 %LD/100 mm Input impedance 406 ± 6 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 18 VDC Maximum number of intervals 3000 nLC Maximum safe overload 150 %FS Max platform size 400 × 400 mm Operating temp range −35 to +65 °C Output impedance 350 ± 3 Ω Rated capacity 150 kg Rated output 2.0 ± 0.2 mV/V Recommended excitation 5 ~ 12 VDC Ultimate central overload 300 %FS Zero balance 2 %FS Manufacturer Zemic Accuracy C3 Number of Wires 6 wires Manufacturer's Part Number L6Q-C3-150kg-3YB6 Approval OIML R60 C3 Short name L6Q-150kg C3 Single Point Load Cell Hero chips IP66; Aluminum; Analog signal; OIML R60 C3; 6 wires
