Tedea-Huntleigh 03410-002T-G5-05X 2,000 kg Shear Beam Load Cell
No · Load cell

SKU 19981
235.00
☎ x305
$235.00
  • 19981 - Tedea-Huntleigh 03410-002T-G5-05X 2,000 kg Shear Beam Load Cell
  • Type: Shear Beam Load Cell
  • Manufacturer part number: 03410-002T-G5-05X
  • Capacity: 2,000 kg
  • Material: Nickel-plated alloy steel and stainless steel
  • Protection: IP67

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Shear Beam Load Cell

    Shear Beam Load Cell for confirmed-fit replacement and scale builds.

    The Tedea-Huntleigh 03410-002T-G5-05X is a 2,000 kg capacity variation of the Tedea-Huntleigh 3410 shear beam load cell family, manufactured in nickel-plated alloy steel and stainless steel with IP67 ingress protection.

    2,000 kg
    Rated capacity
    Nickel-plated alloy steel and stainless steel
    Material
    IP67
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerTedea-Huntleigh
    Manufacturer part number03410-002T-G5-05X
    Capacity2,000 kg
    Rated output2.0 mV/V
    MaterialNickel-plated alloy steel and stainless steel
    ProtectionIP67
    SignalAnalog
    Input impedance385 ± 10 Ω
    Output impedance351 ± 5 Ω
    Insulation resistance> 2000 MΩ
    Zero balance± 2 %RO
    Recommended excitation10 VDC / VAC RMS
    Maximum excitation15 VDC / VAC RMS
    Compensated temperature−10 to +40 °C
    Operating temperature−20 to +70 °C
    Safe overload150 %RC
    Ultimate overload300 %RC
    Number of wires6
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Tedea-Huntleigh 03410-002T-G5-05X 2,000 kg Shear Beam Load Cell19981

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

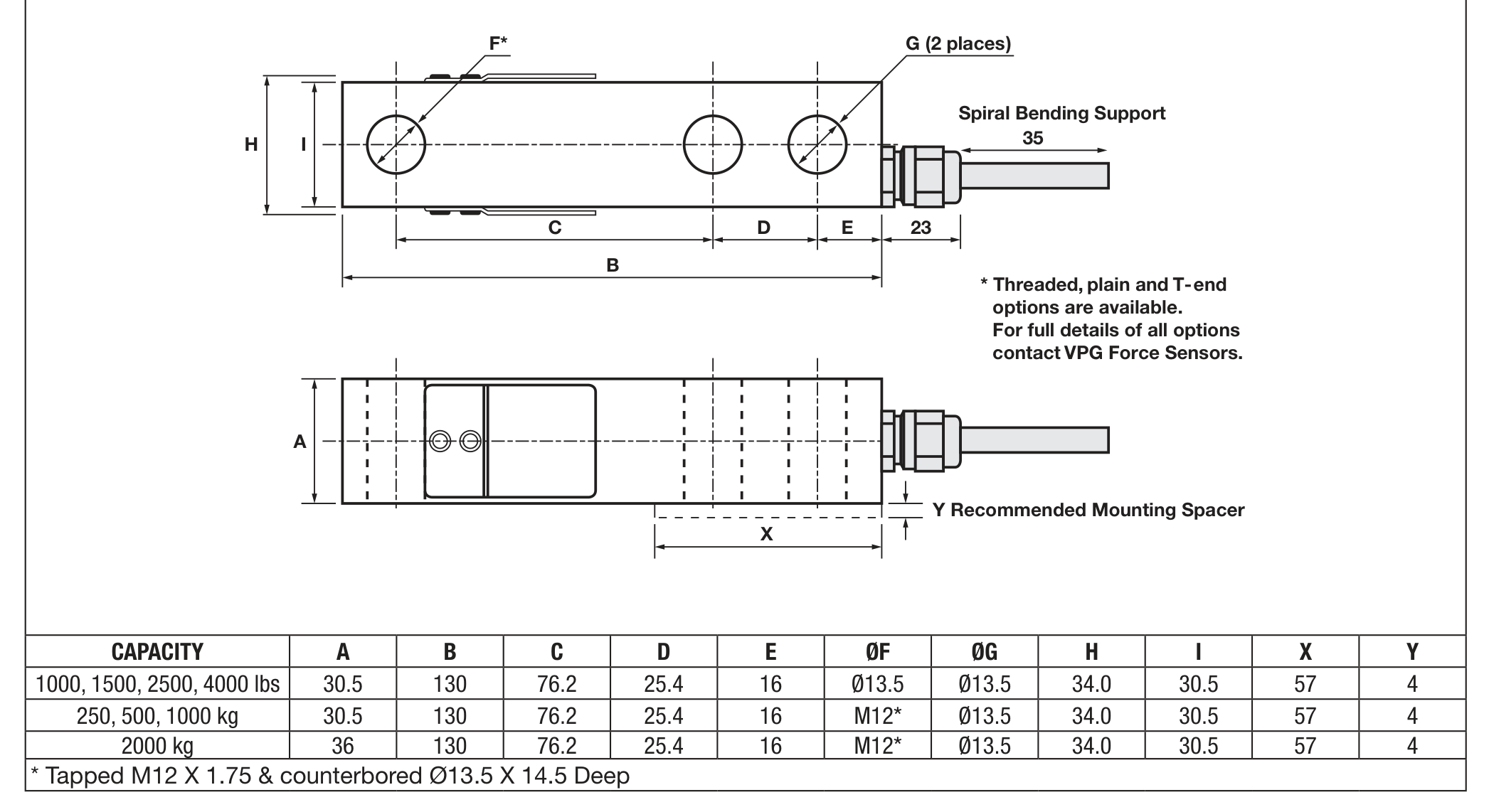

    DIMENSIONS

    Outline dimensions.

    Tedea-Huntleigh 03410-002T-G5-05X 2,000 kg Shear Beam Load Cell dimensions drawing
    Source: manufacturer datasheet
