Tedea-Huntleigh 03510-02E5-C3-01X 2,500 lb Shear Beam Load Cell
SKU 10085
IP68; Stainless Steel; OIML
485.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 03510-02E5-C3-01X is a 2,500 lb capacity variation of the Tedea-Huntleigh 3510 shear beam load cell family, manufactured in stainless steel with IP68, IP69K ingress protection. This model is Accuracy class C3 — OIML (50% utilization).
2,500 lbRated capacityStainless steelMaterialIP68, IP69KProtection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Tedea-Huntleigh Manufacturer part number 03510-02E5-C3-01X Capacity 2,500 lb Approval Accuracy class C3 — OIML (50% utilization) Rated output 3.0 mV/V Material Stainless steel Protection IP68, IP69K Signal Analog Cable length 5 m Cable type 6-wire, braided, polyurethane, dual floating screen Rated output tolerance 0.1 ± % of rated output Zero balance 2 ± % of rated output Compensated temperature range -10 to +40 °C Safe temperature range -30 to +80 °C Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 380 ± 10 Ω Output impedance 355 ± 5 Ω Insulation resistance > 2000 MΩ 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 03510-02E5-C3-01X 2,500 lb Shear Beam Load Cell 10085 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

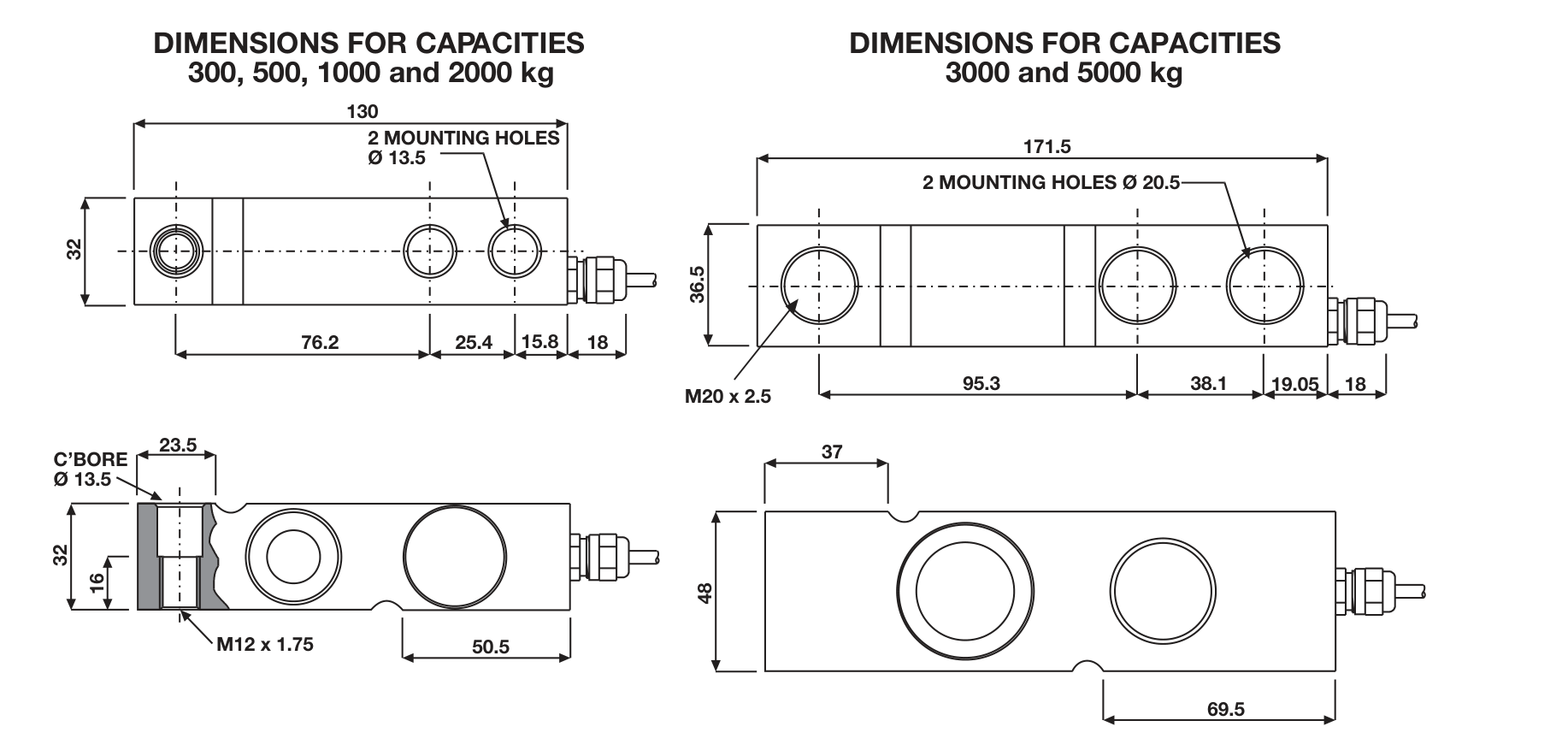

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %RO (C3) Creep error 20mins ≤ ±0.0170 % / 30 min (C3) Internal Battery -- NTEP/OIML OIML Rated capacity 2,500 lb Rated output 3.0 mV/V Manufacturer's Part Number 03510-02E5-C3-01X Approval OIML Hero chips IP68; Stainless Steel; OIML
