Sensortronics 60040-150L-NC-01F 150 lb Bending Beam Load Cell
SKU 10864
IP65; Nickel-Plated Alloy Steel; Analog signal
348.00
- Description
- Additional Information
- 01 / 03Bending Beam Load Cell
Bending Beam Load Cell for confirmed-fit replacement and scale builds.
The Sensortronics 60040-150L-NC-01F is a 150 lb capacity variation of the Sensortronics 60040 bending beam load cell family, manufactured in nickel-plated alloy steel with IP65 ingress protection.
150 lbRated capacityNickel-plated alloy steelMaterialIP65Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Sensortronics Manufacturer part number 60040-150L-NC-01F Capacity 150 lb Rated output 2.0 mV/V Material Nickel-plated alloy steel Protection IP65 Signal Analog Input impedance 380–450 Ω Output impedance 349–355 Ω Insulation resistance > 1000 MΩ @ 50 VDC Non-repeatability ≤ ±0.01 %FSO Zero balance ± 1.0 %FSO Safe overload 150 %RC Ultimate overload 300 %RC Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Compensated temperature −10 to +40 °C Operating temperature −18 to +65 °C Storage temperature −50 to +85 °C 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Sensortronics 60040-150L-NC-01F 150 lb Bending Beam Load Cell 10864 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

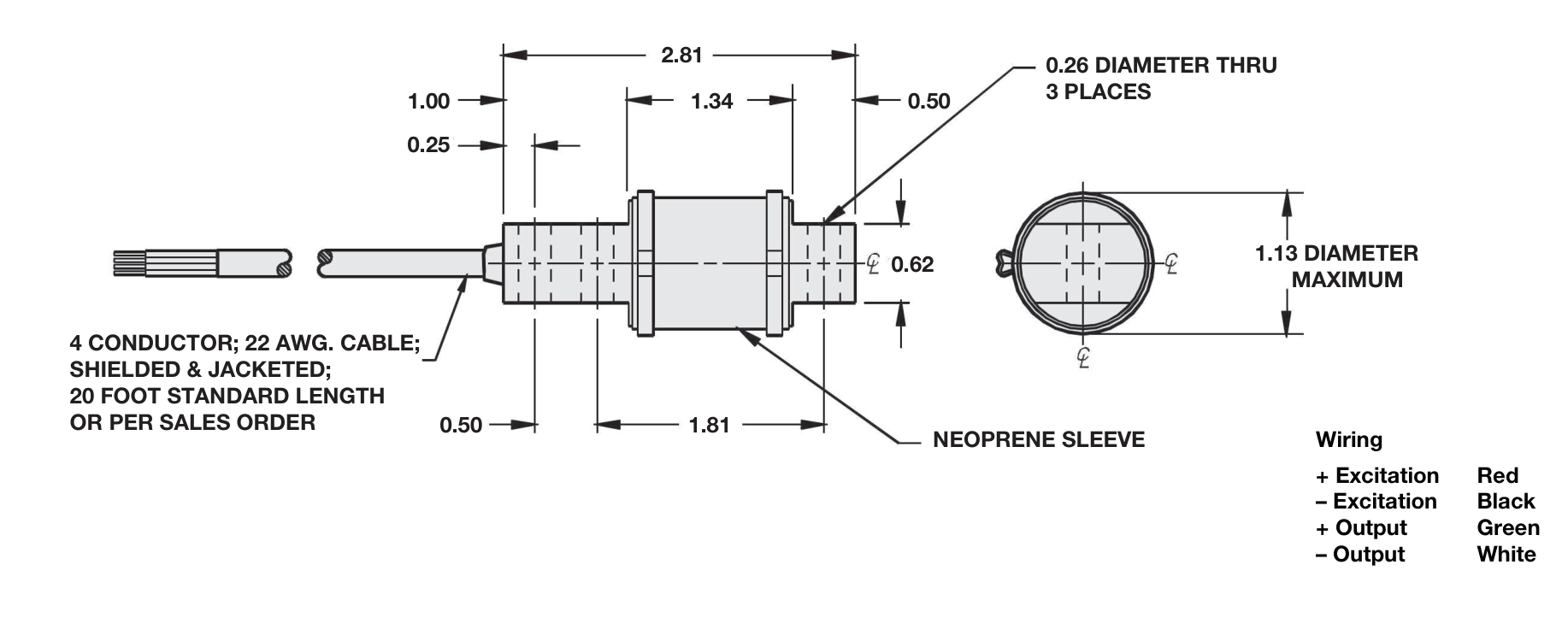

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP65 Material Nickel-Plated Alloy Steel Combined error ≤ ±0.03 %FSO Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.03 %FSO / 20 min Input impedance 380–450 Ω Insulation resistance > 1000 MΩ @ 50 VDC Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC Non-repeatability ≤ ±0.01 %FSO Operating temp range −18 to +65 °C Output impedance 349–355 Ω Rated capacity 150 lb Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Storage temp range −50 to +85 °C Ultimate central overload 300 %RC Zero balance ± 1.0 %FSO Manufacturer's Part Number 60040-150L-NC-01F Hero chips IP65; Nickel-Plated Alloy Steel; Analog signal
