Tedea-Huntleigh 00620-005T-C3-00X 5,000 kg S-Type Tension/Compression Load Cell
Vishay-Tedea · Load cell

SKU 10004
IP68; Stainless Steel; Analog signal; OIML
510.00
☎ x305
$510.00
  • 10004 - Tedea-Huntleigh 00620-005T-C3-00X 5,000 kg S-Type Tension/Compression Load Cell
  • Type: S-Type Tension/Compression Load Cell
  • Manufacturer part number: 00620-005T-C3-00X
  • Capacity: 5,000 kg
  • Material: Stainless steel
  • Protection: IP68
  • Approval: Accuracy class C3 — OIML R60 (50% utilization)

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03S-Type Tension/Compression Load Cell

    S-Type Tension/Compression Load Cell for confirmed-fit replacement and scale builds.

    The Tedea-Huntleigh 00620-005T-C3-00X is a 5,000 kg capacity variation of the Tedea-Huntleigh 620 S-type tension/compression load cell family, manufactured in stainless steel with IP68 ingress protection. This model is Accuracy class C3 — OIML R60 (50% utilization).

    5,000 kg
    Rated capacity
    Stainless steel
    Material
    IP68
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerTedea-Huntleigh
    Manufacturer part number00620-005T-C3-00X
    Capacity5,000 kg
    ApprovalAccuracy class C3 — OIML R60 (50% utilization)
    Rated output2.0 mV/V
    MaterialStainless steel
    ProtectionIP68
    SignalAnalog
    Cable length5 m
    Cable type6-wire, shielded, polyurethane jacket cable
    Rated output tolerance0.002 ± mV/V
    Compensated temperature range-10 to +40 °C
    Safe temperature range-30 to +90 °C
    Maximum safe static overload150 % of R.C.
    Recommended excitation10 VDC or VAC RMS
    Maximum excitation15 VDC or VAC RMS
    Input impedance400 ± 20 Ω
    Output impedance350 ± 3 Ω
    Insulation resistance> 2000 MΩ
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Tedea-Huntleigh 00620-005T-C3-00X 5,000 kg S-Type Tension/Compression Load Cell10004

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    DIMENSIONS

    Outline dimensions.

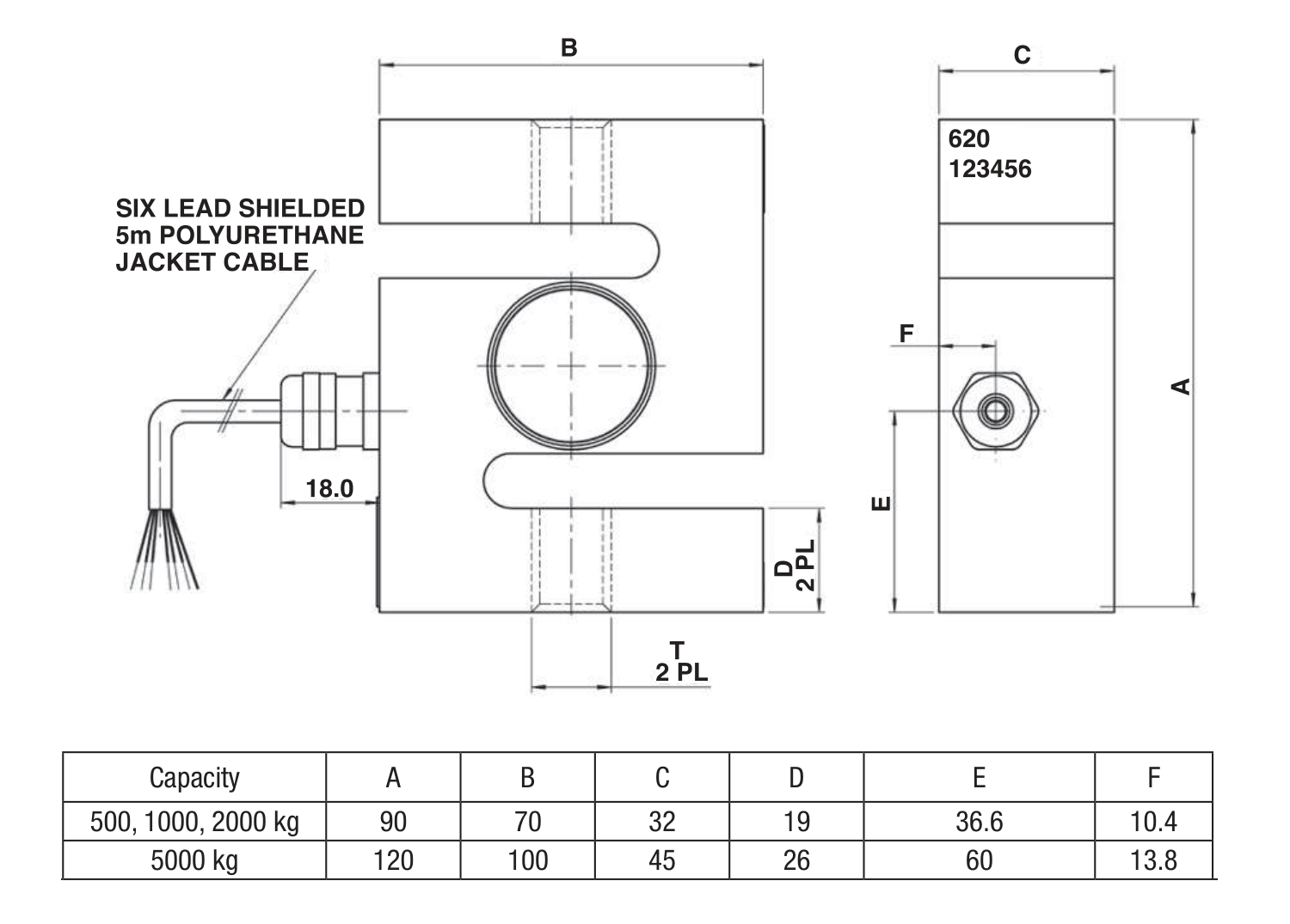

    Tedea-Huntleigh 00620-005T-C3-00X 5,000 kg S-Type Tension/Compression Load Cell dimensions drawing
    Source: manufacturer datasheet
