Tedea-Huntleigh 620-500kg S-Type Tension/Compression Load Cell
- Description
- Additional Information
- 01 / 06S-type tension/compression load cells
S-type tension/compression load cells for confirmed-fit replacement and scale builds.
The Tedea-Huntleigh 620-500kg S-Type Tension/Compression Load Cell is an S-type tension/compression load cell rated 500kg. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Vishay-Tedea and the model / part number as 10001.
500kgRated capacityStainless steelMaterialIP68ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
S-type cells are used for suspended, tension, and inline force applications where the force path must stay centered.
01Hanging scales
S-type geometry fits suspended weighing with clevises, rod ends, or tension hardware.
tension02Force measurement
Useful where the system measures pull, compression, or bidirectional force.
force03Retrofit work
Match thread, capacity, material, and wiring before swapping an existing S-beam.
replacement03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 500kg against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP68 Signal Analog Manufacturer Vishay-Tedea Capacity weight 500 kg Approval Accuracy class A5 — NTEP, 5,000 divisions multiple Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Maximum excitation 15 VDC / VAC RMS Input impedance 400 ± 20 Ω Output impedance 350 ± 3 Ω Insulation resistance > 2000 MΩ Combined error ≤ ±0.0200 %RO (A5) Creep error ≤ ±0.0100 % / 30 min (A5) Safe overload 150 %RC Operating temperature −30 to +90 °C Output sensitivity 2.0 mV/V Zero balance ± 0.04 mV/V Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Tedea-Huntleigh 620-500kg S-Type Tension/Compression Load Cell 10001 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

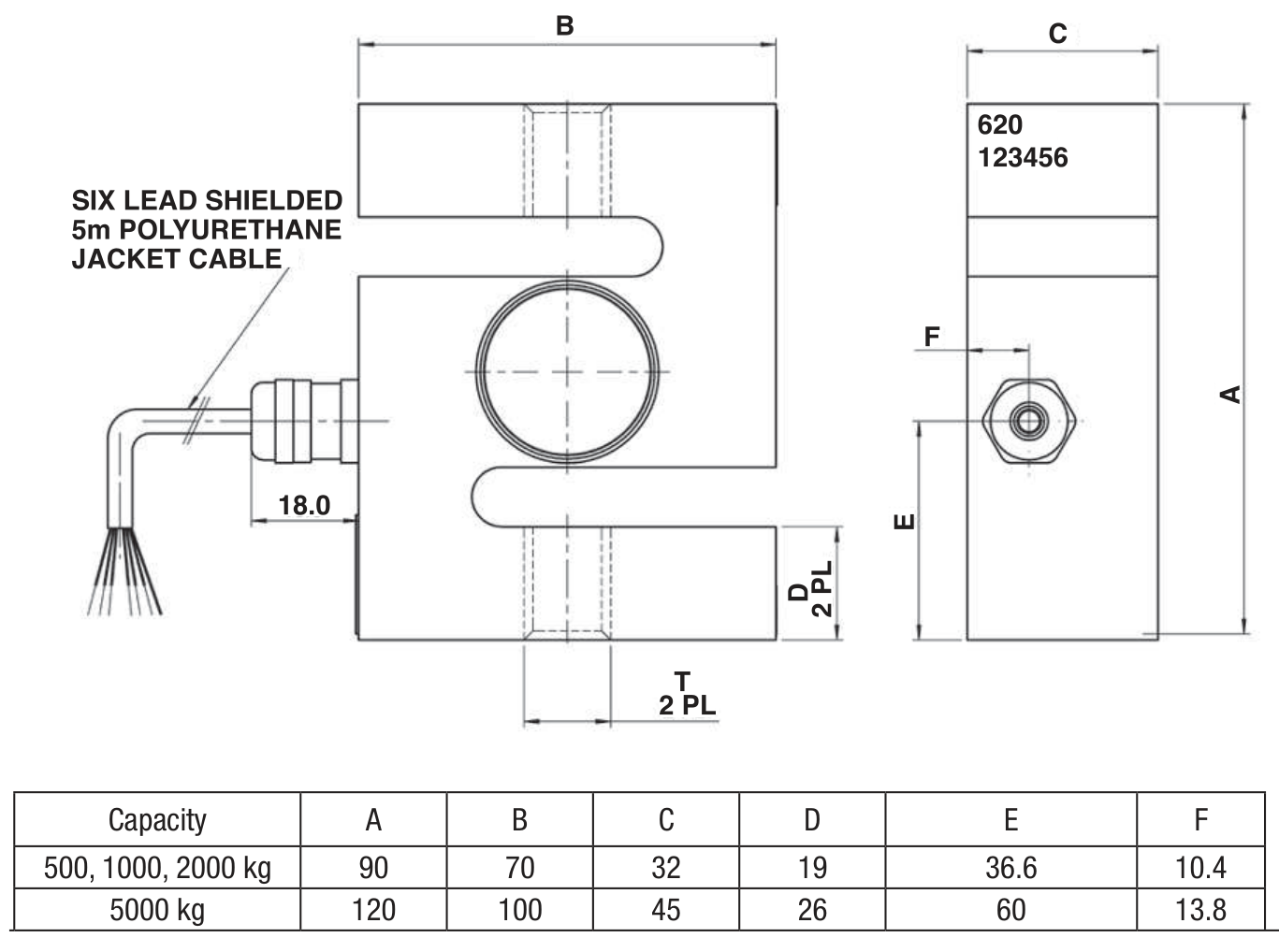

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 10001 is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ≤ ±0.0200 %RO (A5) Compensated temp range −10 to +40 °C Creep error 20mins ≤ ±0.0100 % / 30 min (A5) Input impedance 400 ± 20 Ω Insulation resistance > 2000 MΩ Internal Battery -- Maximum excitation 15 VDC / VAC RMS Maximum safe overload 150 %RC NTEP/OIML NTEP Operating temp range −30 to +90 °C Output impedance 350 ± 3 Ω Rated capacity 500 kg Rated output 2.0 mV/V Recommended excitation 10 VDC / VAC RMS Zero balance ± 0.04 mV/V Manufacturer Vishay-Tedea Manufacturer's Part Number 00620-500K-A5-01X Approval NTEP Hero chips IP68; Stainless Steel; Analog signal; NTEP
