Sensortronics 65023-002E-B1-00F 2,000 lb Shear Beam Load Cell
SKU 10525
353.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Sensortronics 65023-002E-B1-00F is a 2,000 lb capacity variation of the Sensortronics 65023 shear beam load cell family, manufactured in nickel-plated alloy tool steel with IP67 ingress protection. This model is NTEP Class IIIL, 10,000 divisions.
2,000 lbRated capacityNickel-plated alloy tool steelMaterialIP67Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Sensortronics Manufacturer part number 65023-002E-B1-00F Capacity 2,000 lb Approval NTEP Class IIIL, 10,000 divisions Rated output 3.0 mV/V Material Nickel-plated alloy tool steel Protection IP67 Signal Analog Cable length 8.5ft/2.6m Cable type Polyurethane Rated output tolerance 0.25 ±% mV/V Zero balance 1.0 ±% FSO Sideload rejection ratio 500:1 Safe sideload 100 % of R.C. Maximum safe central overload 150 % of R.C. Ultimate central overload 300 % of R.C. Recommended excitation 10 VDC or VAC RMS Maximum excitation 15 VDC or VAC RMS Input impedance 343-357 Ω Output impedance 349-355 Ω Insulation resistance > 1000 MΩ @ 50 VDC Compensated temperature range -10 to 40 °C Operating temperature range -18 to 65 °C Storage temperature range -50 to 85 °C 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Sensortronics 65023-002E-B1-00F 2,000 lb Shear Beam Load Cell 10525 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

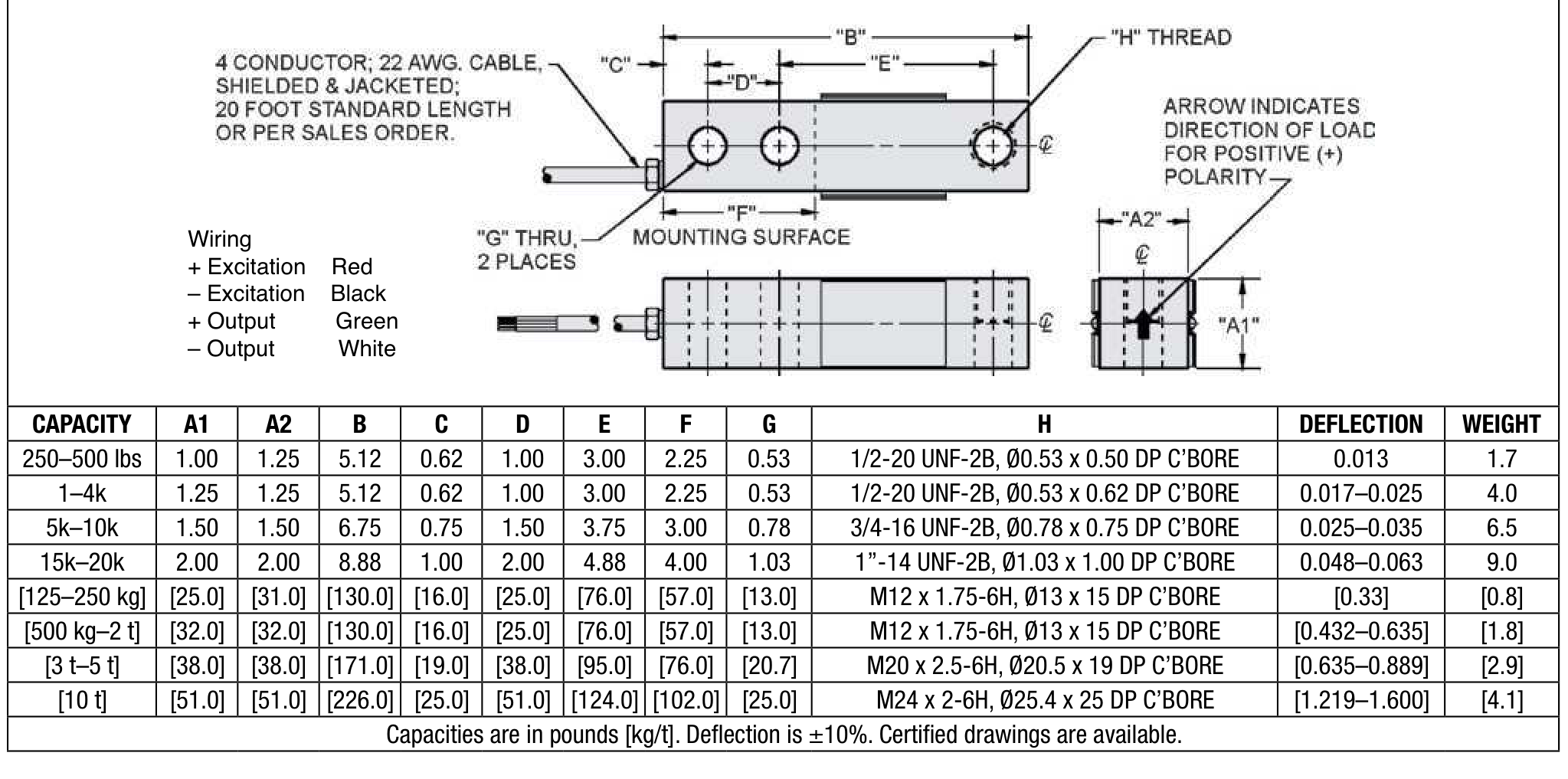

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Combined error ≤ ±0.02 %FSO (B1) Creep error 20mins ≤ ±0.03 %FSO / 30 min (B1) Internal Battery -- NTEP/OIML NTEP Rated capacity 2,000 lb Rated output 3.0 mV/V Manufacturer Vishay-Sensortronics Interchangeable Zemic B8D, Zemic H8C Manufacturer's Part Number 65023-002E-B1-00F Approval NTEP
