Sensortronics 65023-250L-NC-01F 250 lb Shear Beam Load Cell
Vishay-Sensortronics · Load cell

SKU 10521
195.00
☎ x305
$195.00
  • 10521 - Sensortronics 65023-250L-NC-01F 250 lb Shear Beam Load Cell
  • Type: Shear Beam Load Cell
  • Manufacturer part number: 65023-250L-NC-01F
  • Capacity: 250 lb
  • Material: Nickel-plated alloy tool steel
  • Protection: IP67

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Shear Beam Load Cell

    Shear Beam Load Cell for confirmed-fit replacement and scale builds.

    The Sensortronics 65023-250L-NC-01F is a 250 lb capacity variation of the Sensortronics 65023 shear beam load cell family, manufactured in nickel-plated alloy tool steel with IP67 ingress protection.

    250 lb
    Rated capacity
    Nickel-plated alloy tool steel
    Material
    IP67
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerSensortronics
    Manufacturer part number65023-250L-NC-01F
    Capacity250 lb
    Rated output3.0 mV/V
    MaterialNickel-plated alloy tool steel
    ProtectionIP67
    SignalAnalog
    Cable length8.5ft/2.6m
    Cable typePolyurethane
    Rated output tolerance0.25 ±% mV/V
    Zero balance1.0 ±% FSO
    Sideload rejection ratio500:1
    Safe sideload100 % of R.C.
    Maximum safe central overload150 % of R.C.
    Ultimate central overload300 % of R.C.
    Recommended excitation10 VDC or VAC RMS
    Maximum excitation15 VDC or VAC RMS
    Input impedance343-357 Ω
    Output impedance349-355 Ω
    Insulation resistance> 1000 MΩ @ 50 VDC
    Compensated temperature range-10 to 40 °C
    Operating temperature range-18 to 65 °C
    Storage temperature range-50 to 85 °C
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Sensortronics 65023-250L-NC-01F 250 lb Shear Beam Load Cell10521

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    DIMENSIONS

    Outline dimensions.

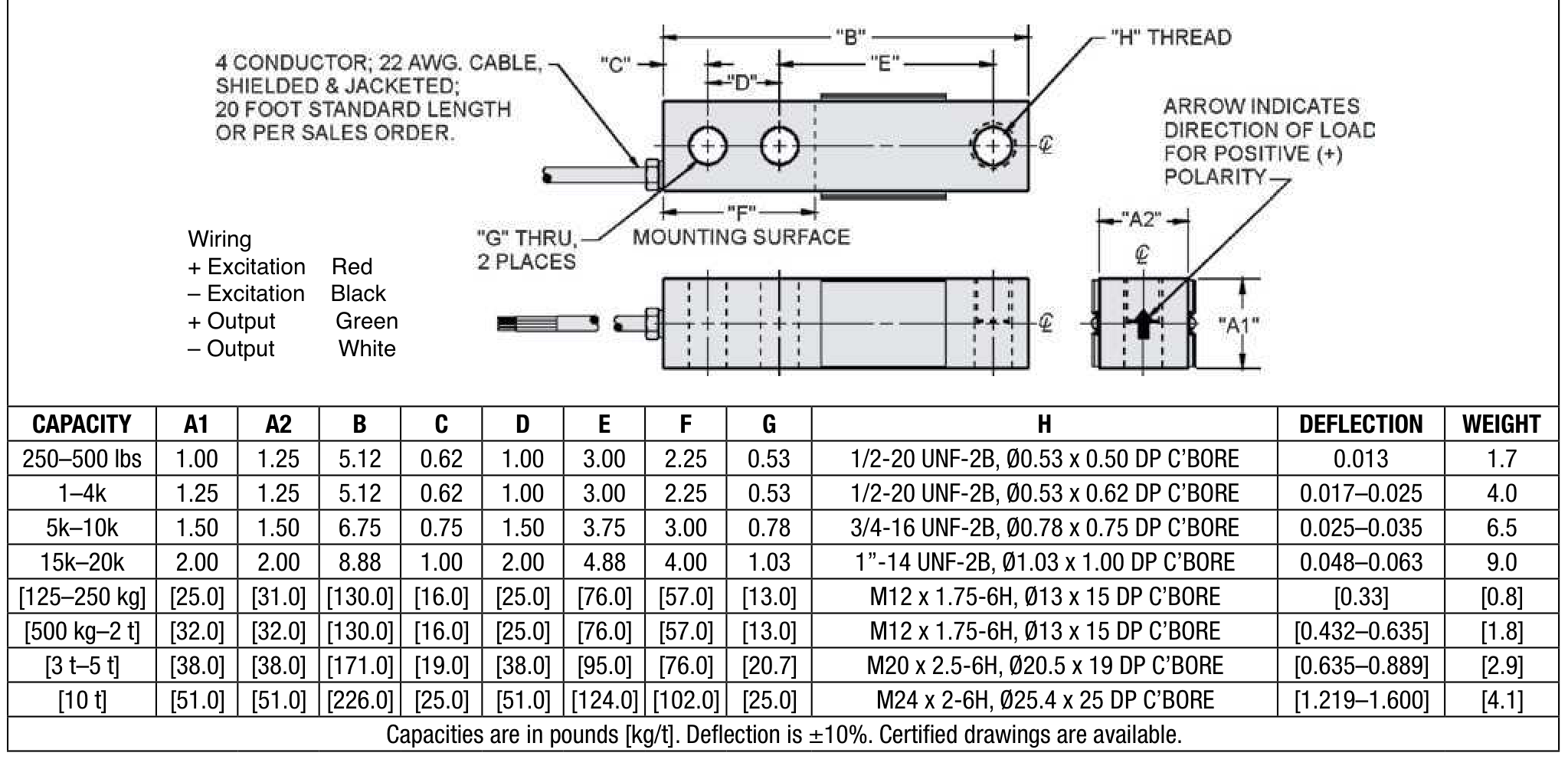

    Sensortronics 65023-250L-NC-01F 250 lb Shear Beam Load Cell dimensions drawing
    Source: manufacturer datasheet
