B8D Shear Beam Load Cell · 2000 lb · b8d-n5-2k-6ybZemic B8D-2,000lb B8D-N5-2K-6YB Shear Beam Load Cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Zemic B8D-2,000lb B8D-N5-2K-6YB Shear Beam Load Cell is a shear beam or bending beam load cell rated 2,000 lb. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Zemic and the model / part number as b8d-n5-2k-6yb.
2,000 lbRated capacityStainless steelMaterialIP67 (EN 60529)ProtectionAnalogSignal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm 2,000 lb against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit
Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP67 (EN 60529). Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog. Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Stainless steel Protection IP67 (EN 60529) Signal Analog Cable length 6 m (20 ft) Cable type Shielded 4-conductor, Ø5 mm Manufacturer Zemic Manufacturer part number b8d-n5-2k-6yb Rated capacity 2,000 lb Capacity 2000 lb Capacity in pounds 2000 lb Approval OIML R60/2000-CN1-06.05 · NTEP 12-022 (Class III/III L) Dimensions 130 x 31.8 x 31.8 mm Rated output 3.0 ± 0.003 mV/V Rated output tolerance ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Maximum excitation 18 VDC Input impedance 350 ± 3.5 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Safe overload 150 %FS Ultimate overload 300 %FS Operating temperature −35 to +65 °C Number of wires 4 Output sensitivity 3.0 ± 0.008 mV/V Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Zemic B8D-2,000lb B8D-N5-2K-6YB Shear Beam Load Cell 12709 Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether 12709 is the right fit.

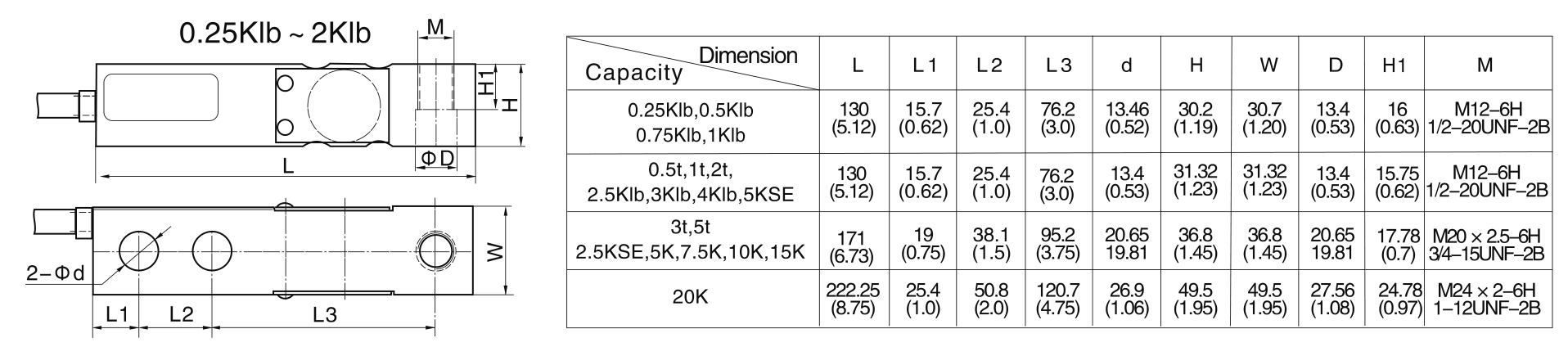

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Zemic B8D datasheet Signal Analog Protection class IP67 (EN 60529) Material Stainless Steel Compensated temp range −10 to +40 °C Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ @ 50 VDC Internal Battery -- Excitation voltage 5 ~ 12 V (Max 18 V) Maximum excitation 18 VDC Maximum number of intervals 5000 Maximum safe overload 150 %FS Minimum dead load 0% Emax NTEP/OIML NTEP Class III/IIIL · CC 12-022 Operating temp range −35 to +65 °C Output impedance 350 ± 3.5 Ω Rated capacity 2,000 lb Rated output 3.0 ± 0.008 mV/V Rated output tolerance ± 0.003 mV/V Recommended excitation 5 ~ 12 VDC Recommended torque 75 Nm Sensitivity 3.0 ± 0.003 mV/V Storage temp range -40 to +80 °C Ultimate central overload 300 %FS Y=Emax/Vmin 10000 Zero balance < ± 1.0 %FS Manufacturer Zemic Capacity 2000 lb Cable type Shielded 4-conductor, Ø5 mm Cable length 6 m (20 ft) Interchangeable Revere 9123, Celtron SQB, Sensortronics 65023, Tedea 3421 Number of Wires 4 wires Manufacturer's Part Number b8d-n5-2k-6yb Approval NTEP Short name B8D Shear Beam Load Cell · 2000 lb · b8d-n5-2k-6yb Hero chips 2,000 lb; IP67 (EN 60529); Stainless Steel; Analog signal; NTEP
