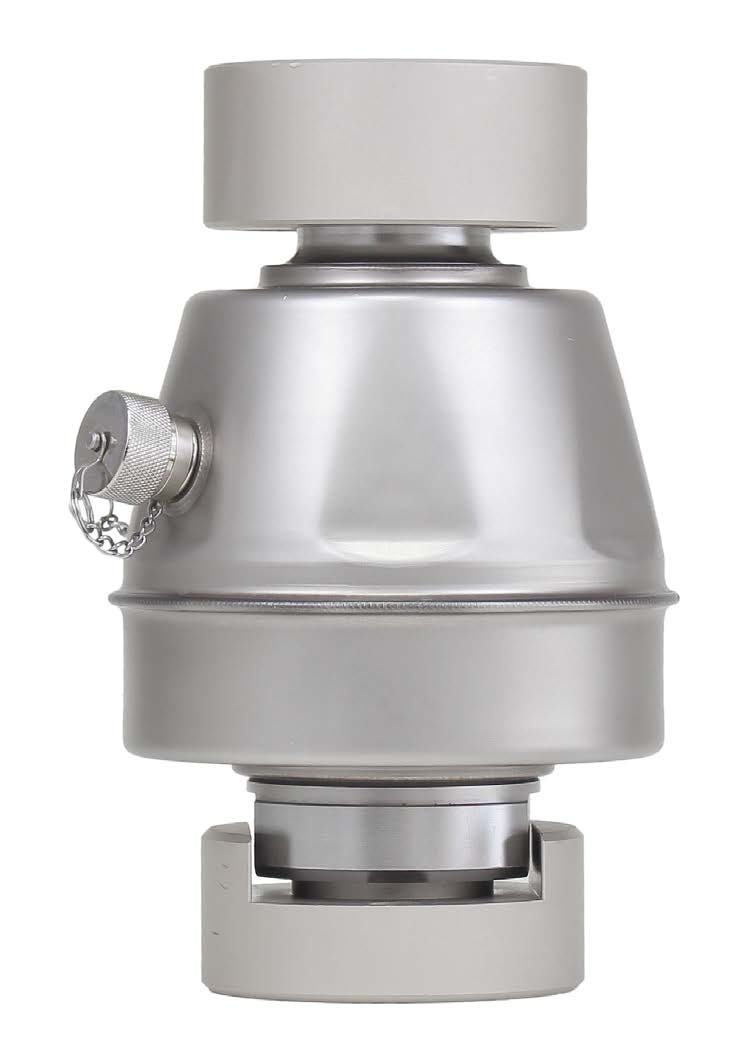

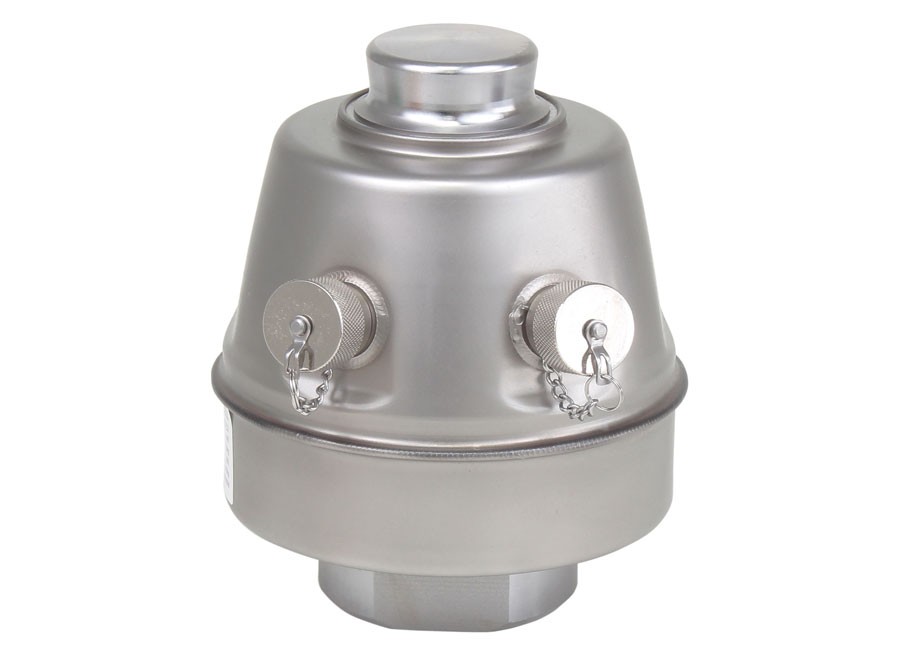

Berman BSDS Digital Stainless Steel Rocker Column Load Cell
Berman Weighing Technology · Load cell

BSDS Load Cell

SKU bsds
913.00
$913.00
  • BSDS - Berman BSDS Digital Rocker Column Load Cell
  • Type: Compression, canister, rocker column, and ring torsion load cells
  • Material: Stainless steel
  • Protection: IP69K
  • Signal: Digital (BERMAN-G2 protocol, RS485)
  • Manufacturer: Berman
  • Capacity range: 40 t – 50 t
  • Available in 2 capacities, 40 t and 50 t. See the table below for each SKU and part number.

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 02Compression Load Cell

    Berman BSDS compression load cell family.

    The Berman BSDS is a digital rocker column compression load cell family. This page describes the family; use the table below to select the SKU your application requires.

    40,000 kg – 50,000 kg
    Kg-line capacity range
    Stainless steel
    Material
    02 / 02Technical data

    Series-wide catalog attributes.

    Values that differ per SKU are listed in the table below and on each SKU's own page.

    MaterialStainless steel
    ProtectionIP69K
    SignalDigital
    Communication protocolBERMAN-G2 (RS485)
    Insulation resistance≥ 2000 MΩ
    Compensated temperature−10 to +40 °C
    Operating temperature−30 to +70 °C
    Recommended excitation9/12 VDC
    Maximum excitation20 VDC
    Current consumption27–30 mA
    Total error± 0.02% of nominal capacity
    Creep (30 min)± 0.02% of nominal capacity
    Temperature effect on zero± 0.02% of nominal capacity / 10 °C
    Temperature effect on span± 0.02% of nominal capacity / 10 °C
    Safe overload150% of nominal capacity
    Breaking overload300% of nominal capacity

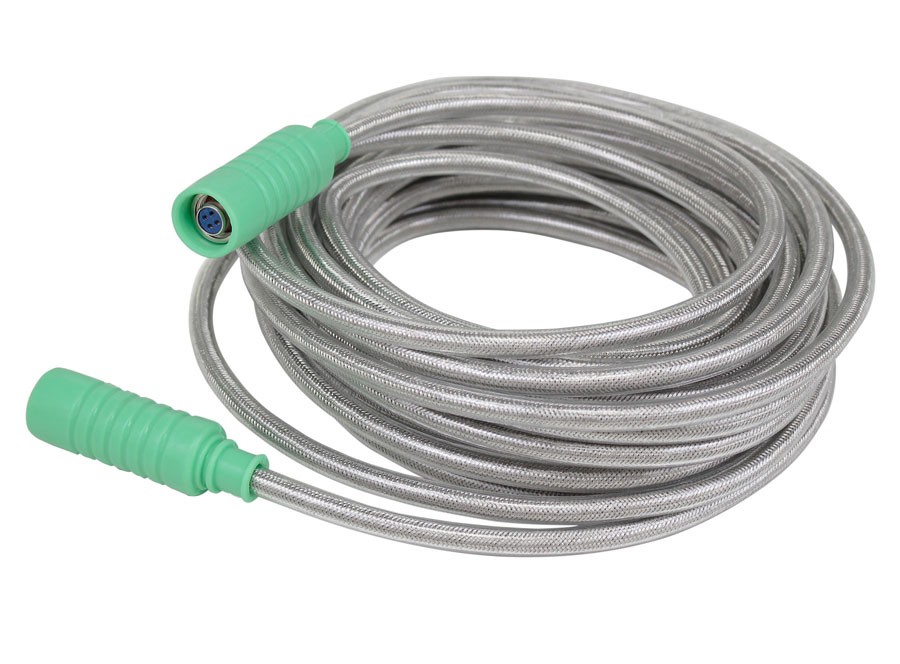

    Cable10 m
    CAPACITY TABLE

    Available capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    40 tBSDS/40T—$724.00
    50 tBSDS/50T—$724.00
    DIMENSIONS

    Outline dimensions.

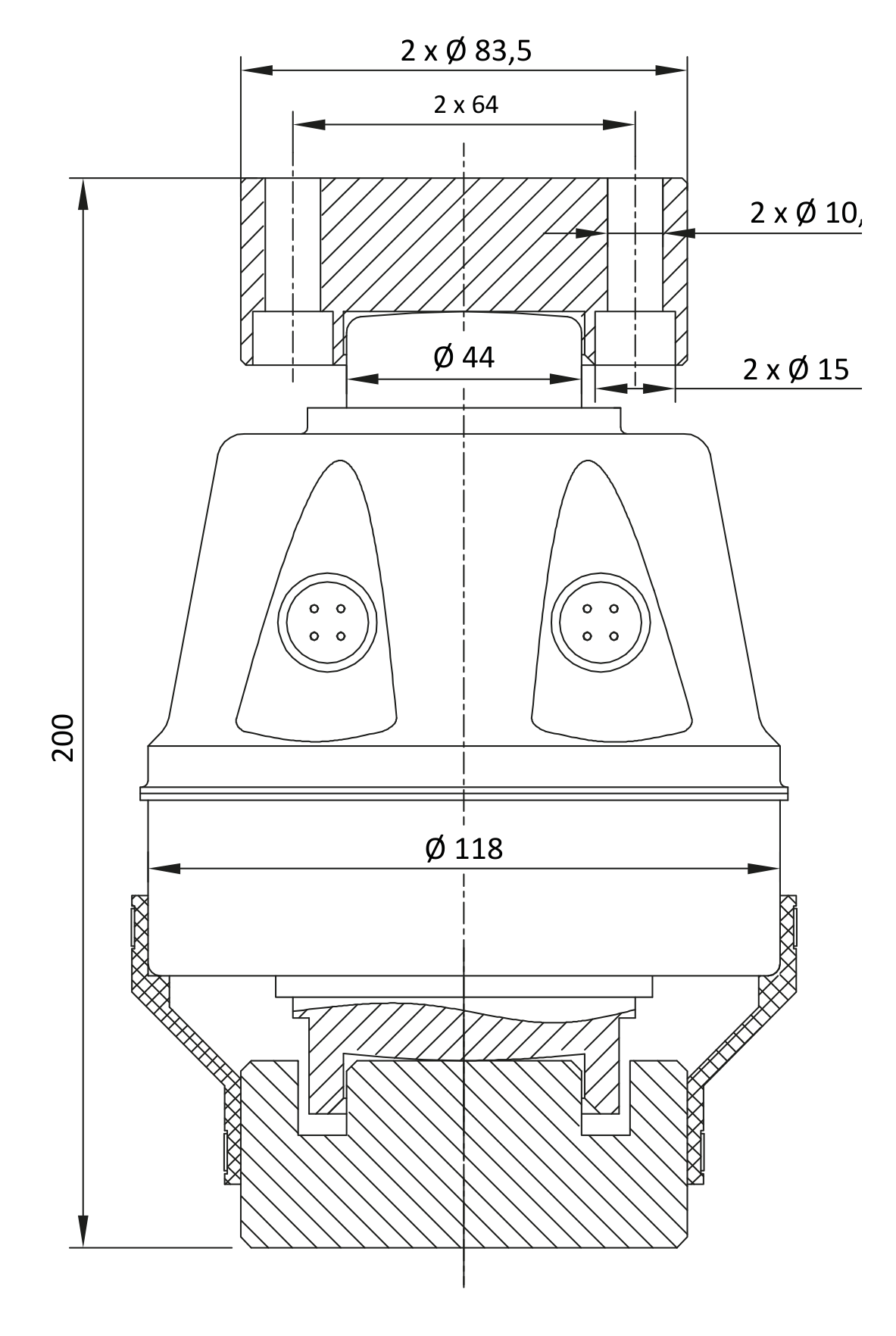

    Berman BSDS digital load cell dimensions drawing (all capacities)
    Source: Berman BSDS datasheet (WeightechUSA)
