Berman BSDS/40T 40 t Compression Load Cell
No · Load cell

BSDS Load Cell · 40 t · BSDS/40T

SKU 502777
IP69K; Stainless Steel; Digital signal
724.00
☎ x305
$724.00
  • 502777 - Berman BSDS/40T 40 t Compression Load Cell
  • Type: Compression Load Cell
  • Manufacturer part number: BSDS/40T
  • Capacity: 40 t
  • Material: Stainless steel
  • Protection: IP69K

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 03Compression Load Cell

    Compression Load Cell for confirmed-fit replacement and scale builds.

    The Berman BSDS/40T is a 40 t capacity variation of the Berman BSDS digital rocker column compression load cell family, manufactured in stainless steel with IP69K ingress protection.

    40 t
    Rated capacity
    Stainless steel
    Material
    IP69K
    Protection
    02 / 03Technical data

    Verified specifications for this SKU.

    ManufacturerBerman
    Manufacturer part numberBSDS/40T
    Capacity40 t
    DimensionsØ118 x 200 mm
    MaterialStainless steel
    ProtectionIP69K
    SignalDigital
    Communication protocolBERMAN-G2 (RS485)
    Insulation resistance≥ 2000 MΩ
    Compensated temperature−10 to +40 °C
    Operating temperature−30 to +70 °C
    Recommended excitation9/12 VDC
    Maximum excitation20 VDC
    Current consumption27–30 mA
    Total error± 0.02% of nominal capacity
    Creep (30 min)± 0.02% of nominal capacity
    Temperature effect on zero± 0.02% of nominal capacity / 10 °C
    Temperature effect on span± 0.02% of nominal capacity / 10 °C
    Safe overload150% of nominal capacity
    Breaking overload300% of nominal capacity
    Cable10 m
    03 / 03Part number reference

    Order code and fit FAQ.

    ProductOrder code
    Berman BSDS/40T 40 t Compression Load Cell502777

    Is the SKU enough to confirm replacement?

    Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.

    Can WeightechUSA help identify a match?

    Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

    Talk to a WeightechUSA load-cell specialist.

    Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

    Email SalesView DatasheetCall +1 (954) 666-0877 × 305
    DIMENSIONS

    Outline dimensions.

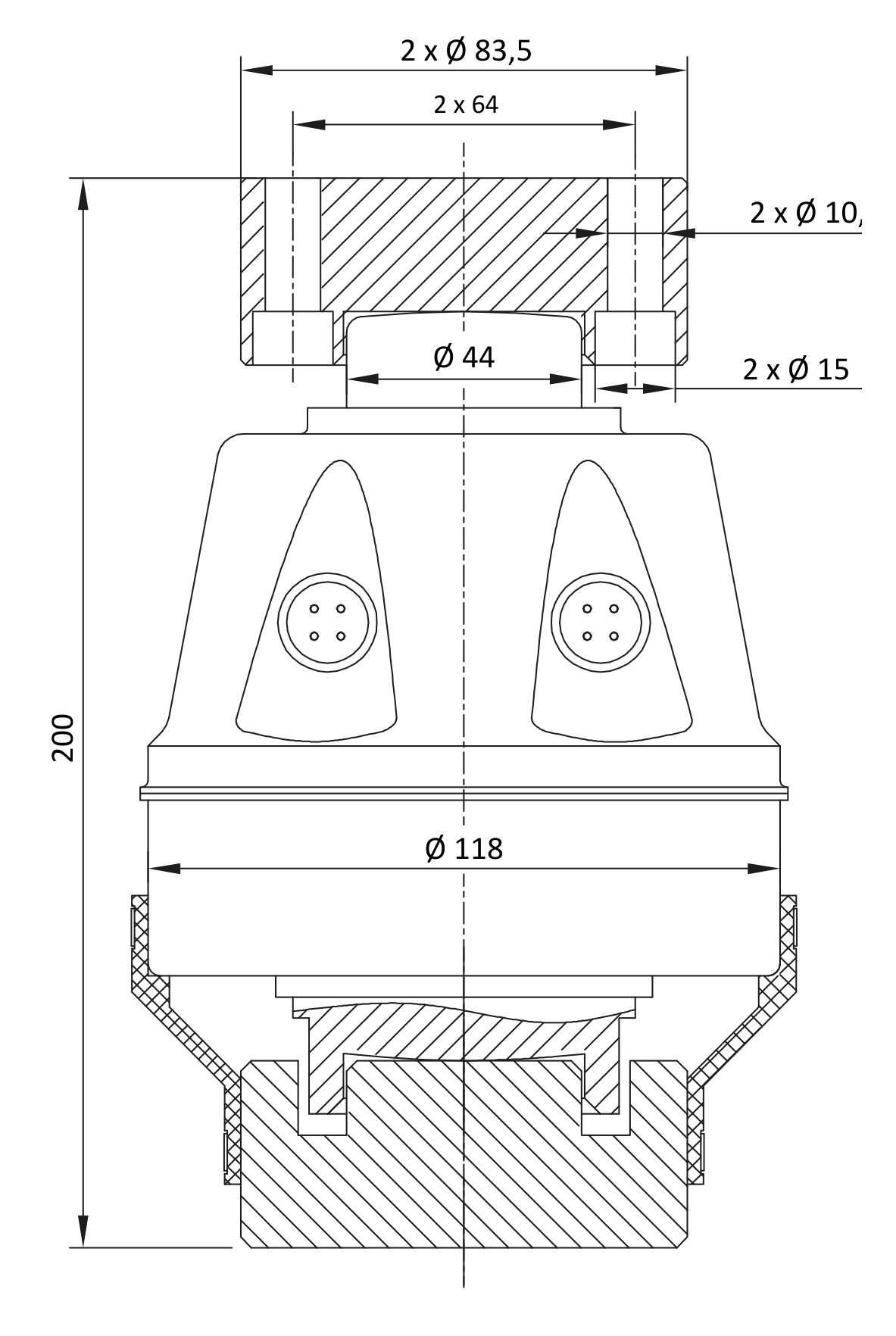

    Berman BSDS/40T compression load cell dimensions drawing
    Source: Berman BSDS datasheet (WeightechUSA)
