BTBI 2,500 Shear Beam Load Cell · 2500 lb · BTBI-2.5klbBerman BTBI-2.5klb 2,500 lb Shear Beam Load Cell
SKU 10999
IP68; Alloy Steel; Analog signal; 3.0 ± 0.003 mV/V; 4 wires
84.00
- Description
- Additional Information
- 01 / 03Shear Beam Load Cell
Shear Beam Load Cell for confirmed-fit replacement and scale builds.
The Berman BTBI-2.5klb is a 2,500 lb capacity variation of the Berman BTBI shear beam load cell family, manufactured in alloy steel with IP68 ingress protection.
2,500 lbRated capacityAlloy steelMaterialIP68Protection02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Berman Manufacturer part number BTBI-2.5klb Capacity 2,500 lb Rated output 3.0 ± 0.003 mV/V Dimensions 130 x 31.8 x 31.8 mm Input impedance 350 ± 3.5 Ω Output impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Maximum excitation 18 VDC Compensated temperature −10 to +40 °C Operating temperature −35 to +65 °C Safe overload 150 %FS Ultimate overload 300 %FS Cable type 4 wires; 5m length; Ø5mm 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Berman BTBI-2.5klb 2,500 lb Shear Beam Load Cell 10999 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.

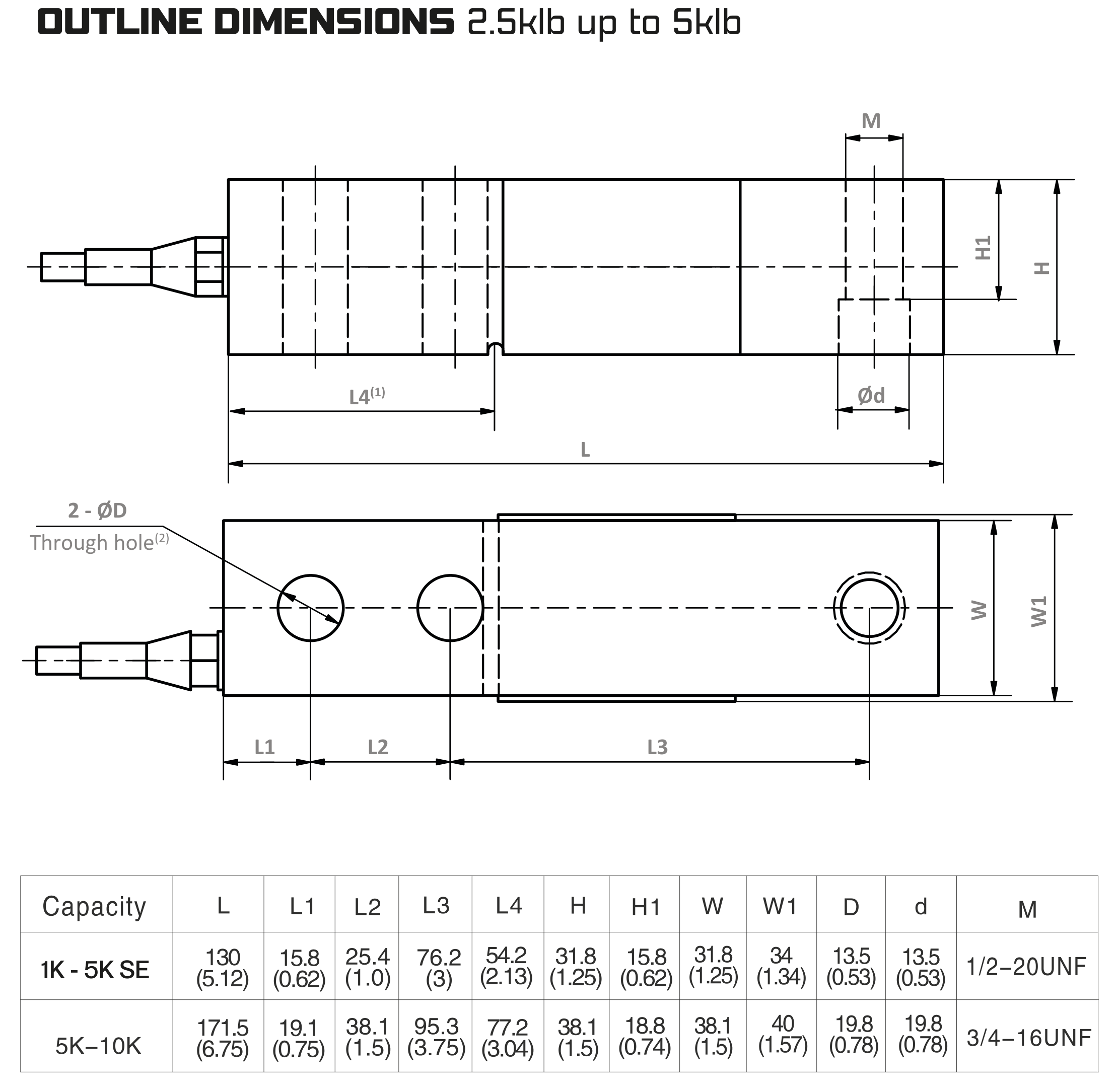

Email SalesView DatasheetCall +1 (954) 666-0877 × 305DIMENSIONSOutline dimensions.
Source: Weightech BTBI datasheet Signal Analog Protection class IP68 Material Alloy Steel Compensated temp range −10 to +40 °C Creep error 30 mins 0.03 % R.O. Input impedance 350 ± 3.5 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 18 VDC Maximum safe overload 150 %FS Nominal temp range -30°C ~ +70°C Operating temp range −35 to +65 °C Output impedance 350 ± 3.5 Ω Rated capacity 2,500 lb Rated output 3.0 ± 0.003 mV/V Recommended excitation 10~12 VDC Safe sideload 250 kg to 5t: 150% of Capacity | 10t: 120% of Capacity Sensitivity 3.0 ± 0.003 mV/V Ultimate central overload 300 %FS Manufacturer Berman Weighing Technology Cable type 4 wires; 5m length; Ø5mm Class C3 Number of Wires 4 wires Manufacturer's Part Number BTBI-2.5klb Short name BTBI 2,500 Shear Beam Load Cell · 2500 lb · BTBI-2.5klb Hero chips IP68; Alloy Steel; Analog signal; 3.0 ± 0.003 mV/V; 4 wires
