Berman BTBIX Stainless Steel shear beam load cell
- Description
- Additional Information
- 01 / 06Shear beam and bending beam load cells
Shear beam and bending beam load cells for confirmed-fit replacement and scale builds.
The Berman BTBIX Stainless Steel shear beam load cell is a shear beam or bending beam load cell. Use it as a replacement or new-build component only after confirming capacity, dimensions, material, seal rating, electrical signal, and wiring against the scale assembly. The catalog identifies the manufacturer as Berman Weighing Technology and the model / part number as BTBIX.
CapacityConfirm from applicationAlloy steelMaterialIP68ProtectionAnalog (2.0 ± 0.002 mV/V)Signal02 / 06Application fitWhere this load cell belongs.
Shear and bending beam cells are common choices for floor scales, livestock platforms, tanks, hoppers, and low-to-mid capacity industrial scales.
01Platforms and floor scales
A practical load-cell family for fabricated platforms and summing-box systems.
platform02Tanks and hoppers
Works well when mounts control side load and vessel movement.
vessel03Livestock and agriculture
Often used in platform and chute builds when capacity and environmental rating fit.
ag scale03 / 06Mechanical and electrical fitConfirm the details before replacement.
CAPACITYCapacity and load path
Confirm the rated capacity against dead load, live load, impact, and load distribution.
MECHANICALMechanical fit

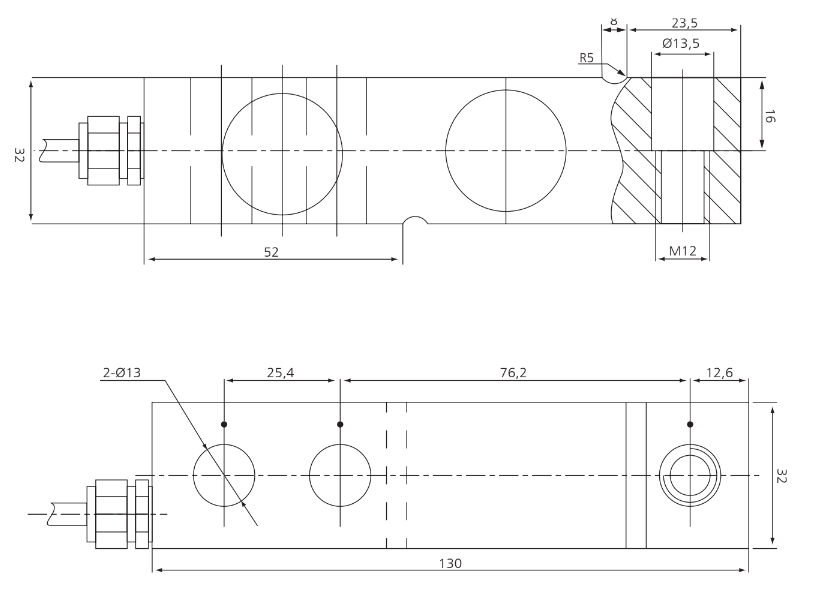

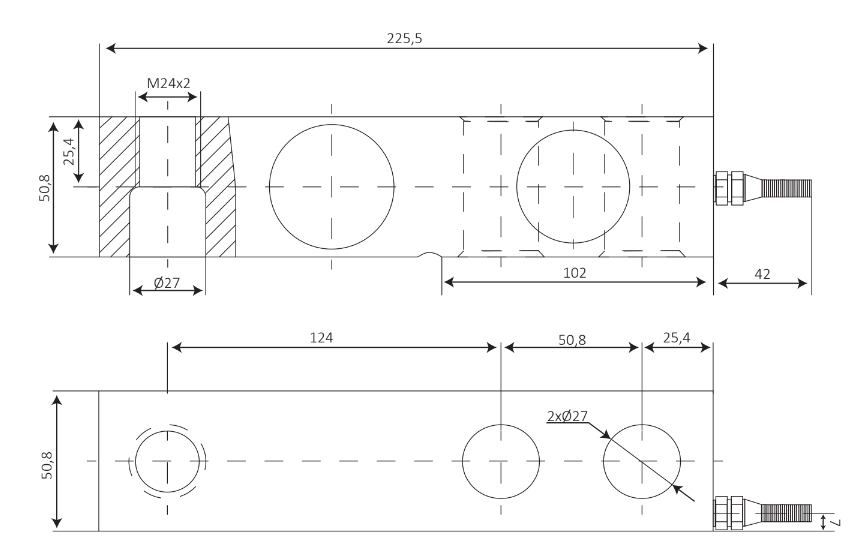

Check mounting pattern, installed height, load point, cable exit, and platform or vessel geometry before ordering.
ENVIRONMENTEnvironment
Catalog protection is IP68. Verify washdown, outdoor, corrosive, or hazardous exposure before replacement.
ELECTRICALElectrical match
Catalog signal is Analog (2.0 ± 0.002 mV/V). Confirm excitation, mV/V output, impedance, wiring color code, and indicator/transmitter input.
RETROFITInterchangeable note
Keli SQB
04 / 06Installation notesA load cell is only correct when the assembly around it is correct.
The safest way to quote or replace a load cell is to verify the installed geometry and the electrical interface together. Capacity alone is not enough.
- Match mounting holes, load point, thread, and installed height
- Confirm cell count and junction-box wiring
- Confirm material and protection rating for the environment
- Confirm rated output, excitation, and input/output impedance
- Keep datasheets, photos, and old part numbers with the service record
05 / 06Technical dataCatalog attributes for this load cell.
Material Alloy steel Protection IP68 Signal Analog (2.0 ± 0.002 mV/V) Cable type 4 wires; 5m length; Ø5mm Manufacturer Berman Weighing Technology Rated output 2.0 ± 0.002 mV/V Recommended excitation 10~12 VDC Maximum excitation 15 VDC Input impedance 400 ± 20 Ω Output impedance 352 ± 3 Ω Insulation resistance ≥ 5000 MΩ Combined error ≤ ±0.05 %FS Safe overload 150 %FS Ultimate overload 250 %FS Operating temperature −30 to +70 °C Number of wires 4 (6-wire on 5–10 t) Interchangeable note Keli SQB Output sensitivity 2.0 ± 0.002 mV/V Zero balance ± 1 %FS Compensated temperature −10 to +40 °C 06 / 06Part number referenceOrder code and fit FAQ.
Product Order code Berman BTBIX Stainless Steel shear beam load cell BTBIX Is the SKU enough to confirm replacement?
No. Use the SKU as the order code, then confirm model, capacity, dimensions, wiring, signal, and environment.
What if some catalog attributes are blank?
Treat blank attributes as items to confirm before ordering. The description only uses available catalog data and conservative application guidance.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.
Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm whether BTBIX is the right fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Alloy Steel Combined error ≤ ±0.05 %FS Compensated temp range −10 to +40 °C Creep error 30 mins ± 0.05 for 2t | ± 0.02 for 5t | ± 0.03 for 10t Input impedance 400 ± 20 Ω Insulation resistance ≥ 5000 MΩ Internal Battery -- Maximum excitation 15 VDC Maximum safe overload 150 %FS Nominal temp range -30°C ~ +70°C Operating temp range −30 to +70 °C Output impedance 352 ± 3 Ω Rated output 2.0 ± 0.002 mV/V Recommended excitation 10~12 VDC Safe sideload 250 kg to 5t: 150% of Capacity | 10t: 120% of Capacity Sensitivity 2.0 ± 0.002 Ultimate central overload 250 %FS Zero balance ± 1 %FS Manufacturer Berman Weighing Technology Cable type 4 wires; 5m length; Ø5mm Interchangeable Keli SQB, Zemic H8C, Sensortronics 65023 Class C3 Number of Wires 4 wires
