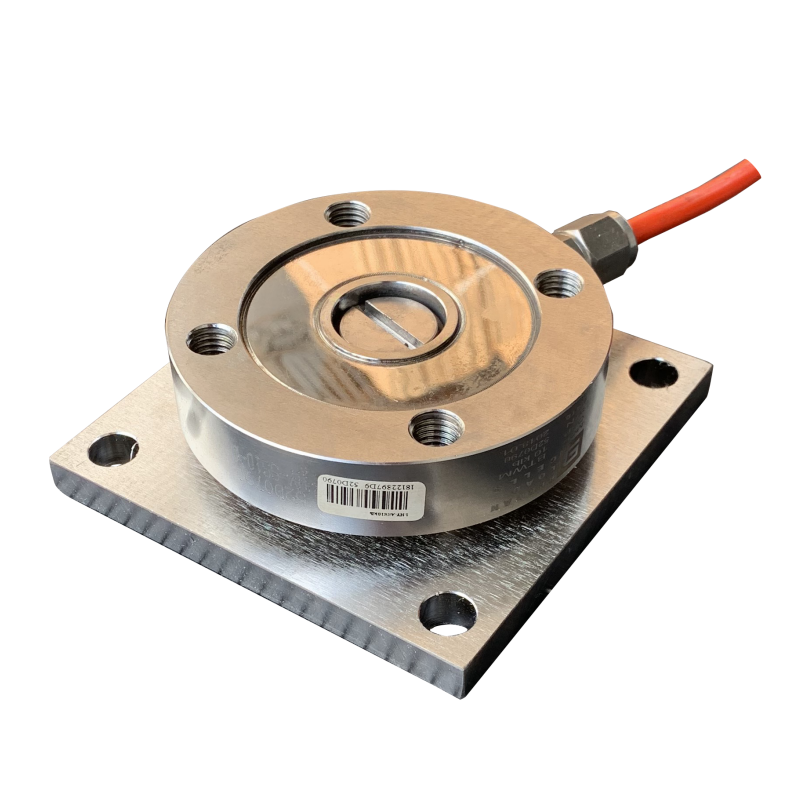

BTWM Compression Load Cell · 35000 lb · BTWM-35KBerman BTWM-35K 35,000 lb Compression Disk Load Cell
SKU 10786
1,400.00
- Description
- Additional Information
- 01 / 03Compression Disk Load Cell
Compression Disk Load Cell for confirmed-fit replacement and scale builds.
The Berman BTWM-35K is a 35,000 lb capacity variation of the Berman BTWM compression disk load cell family.
35,000 lbRated capacity02 / 03Technical dataVerified specifications for this SKU.
Manufacturer Berman Manufacturer part number BTWM-35K Capacity 35,000 lb 03 / 03Part number referenceOrder code and fit FAQ.
Product Order code Berman BTWM-35K 35,000 lb Compression Disk Load Cell 10786 Is the SKU enough to confirm replacement?
Use the SKU and manufacturer part number above as the order code, then confirm wiring, signal, and environment with WeightechUSA before ordering.
Can WeightechUSA help identify a match?
Yes. Send photos of the installed cell, the label, mounting dimensions, cable colors, capacity, and the scale application.

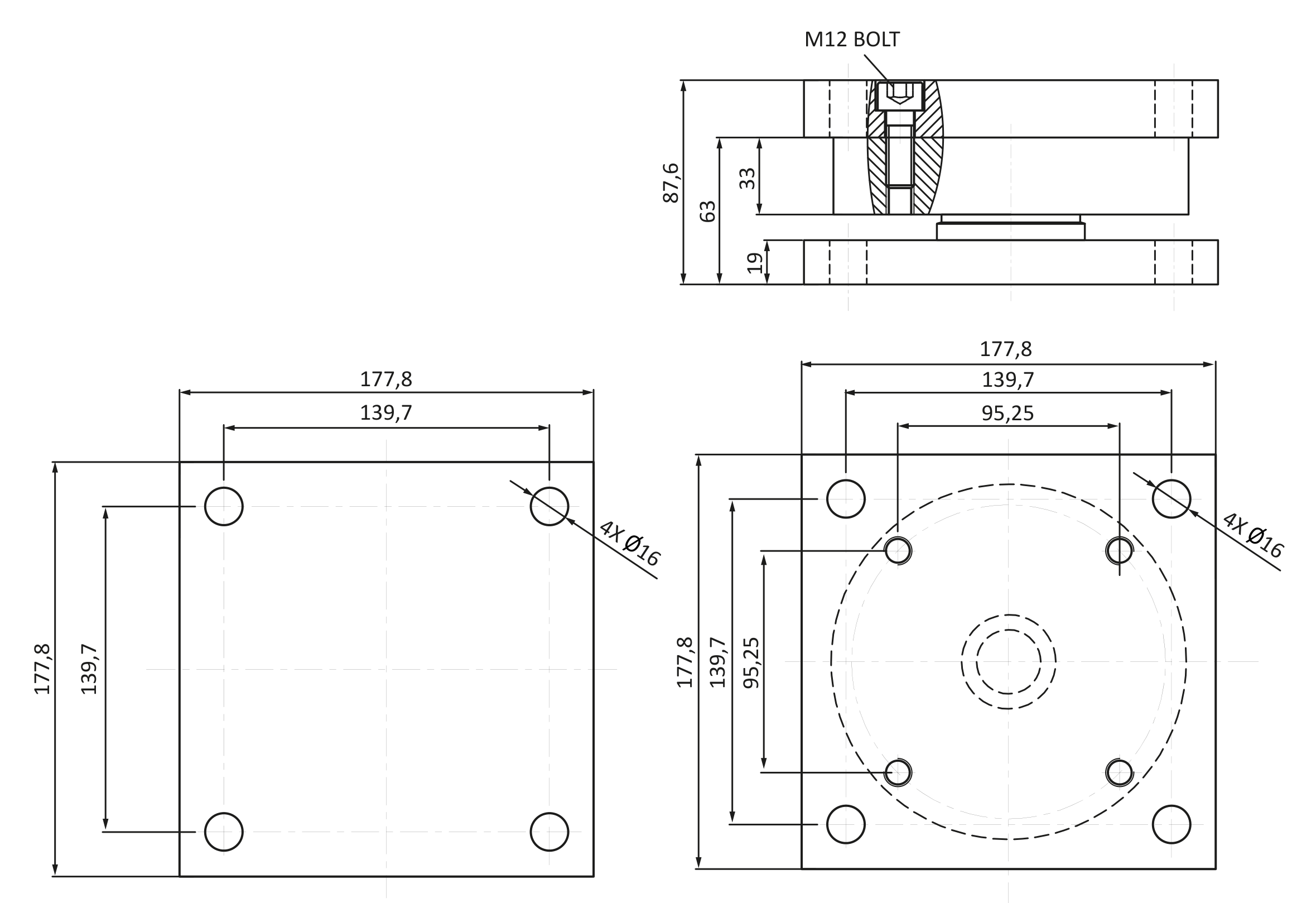

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA load-cell specialist.
Send the old load-cell label, capacity, dimensions, cable details, and application. We will confirm the manufacturer part number and fit.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP68 Material Stainless Steel Combined error ± 0.3 %FS Creep error 30 mins ± 0.1 %FS Input impedance 400 ± 20 Ω Maximum excitation 15 VDC Maximum safe overload 150 %FS Operating temp range -30 to +70 °C Output impedance 352 ± 3 Ω Rated capacity 35,000 lb Rated output 3.0 ± 0.01 mV/V Recommended excitation 10 ~ 12 VDC Safe sideload 200 %FS Manufacturer Berman Weighing Technology Cable length Length: 8m | Diameter: Ø 6mm Manufacturer's Part Number BTWM-35K Short name BTWM Compression Load Cell · 35000 lb · BTWM-35K
