Berman SIP-BLME Weighing Module
- Description
- Additional Information
- 01 / 06Tank, silo, mixer, and reactor weigh modules
Tank, silo, mixer, and reactor weigh modules for confirmed-fit vessel and scale builds.
The Berman SIP-BLME Weighing Module is a tank, silo, mixer, or reactor weigh module. Use it for new scale builds or retrofit work after confirming load-cell capacity, module count, mounting geometry, cable length, junction box requirements, and the forces the structure must restrain. This product record indicates that the load cell is not included with the selected module option.
up to 7.5 tCapacityCarbon SteelModule materialConfirmCable lengthConfirmJunction box02 / 06Application fitWhere this weigh module belongs.
Select the module by force path, vessel movement, required hardware, environment, and what the kit actually includes.
01Tanks and silos
Vessel modules are used where structural movement, side load, and lift-off protection must be controlled.
vessel02Mixers and reactors
Movement-tolerant modules help stabilize readings where agitation or thermal expansion is present.
movement03Module or kit
Confirm whether the selected option includes only modules or also load cells, cable, and junction box.
scope03 / 06Kit scopeConfirm what is included before quoting or installing.
- Load cell not included
04 / 06Installation notesA weigh module is only accurate when the structure around it is correct.
Before ordering, verify the load path, restraint direction, expansion or movement allowance, lift-off protection, grounding, cable routing, and indicator input.
STRUCTUREMechanical restraint
Check side load, lift-off, thermal expansion, and vessel movement before final selection.
WIRINGElectrical interface
Confirm load-cell signal, junction box trim, cable length, shielding, and indicator compatibility.
SERVICEService access
Leave clearance for load-cell replacement, leveling, grounding strap inspection, and cable service.

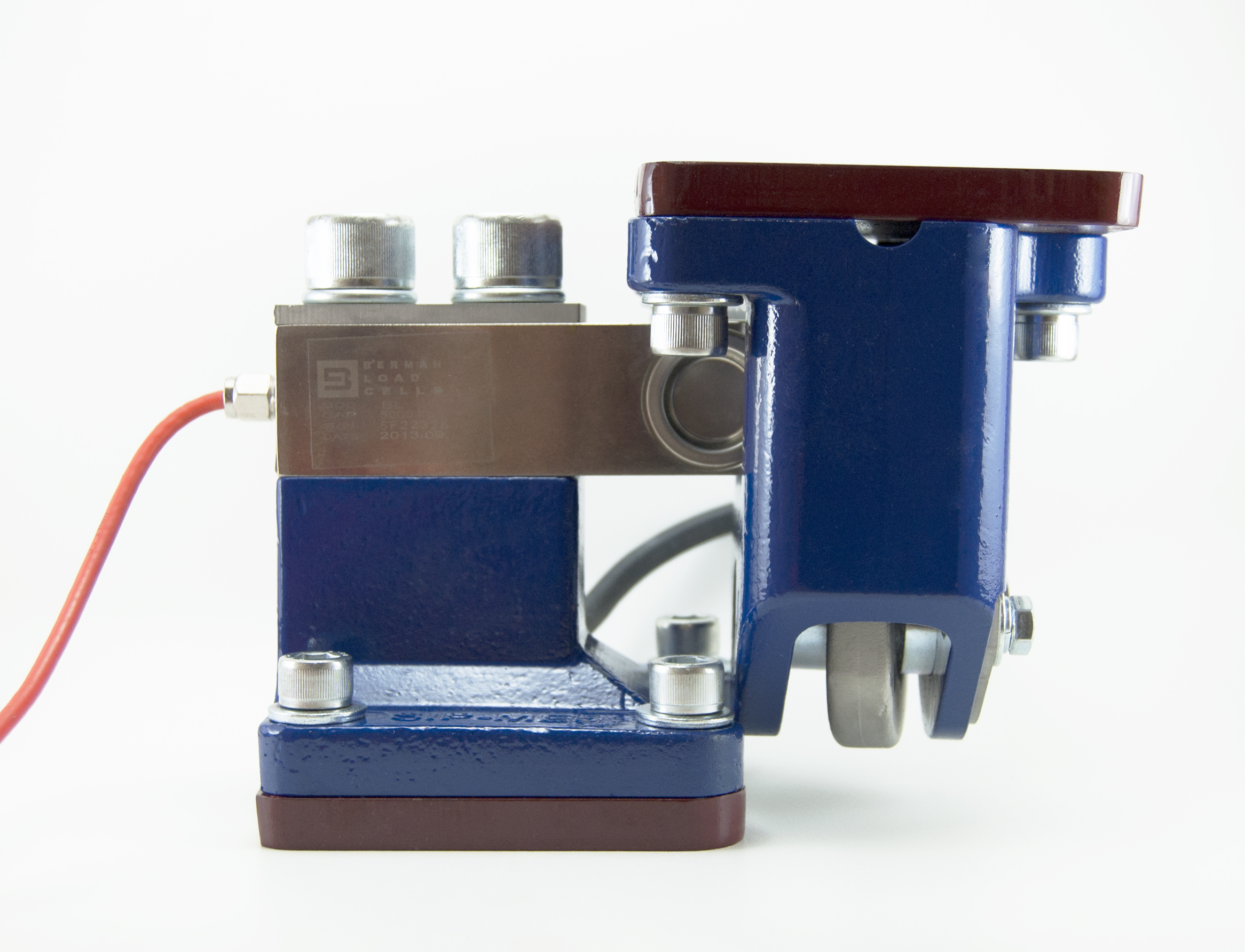

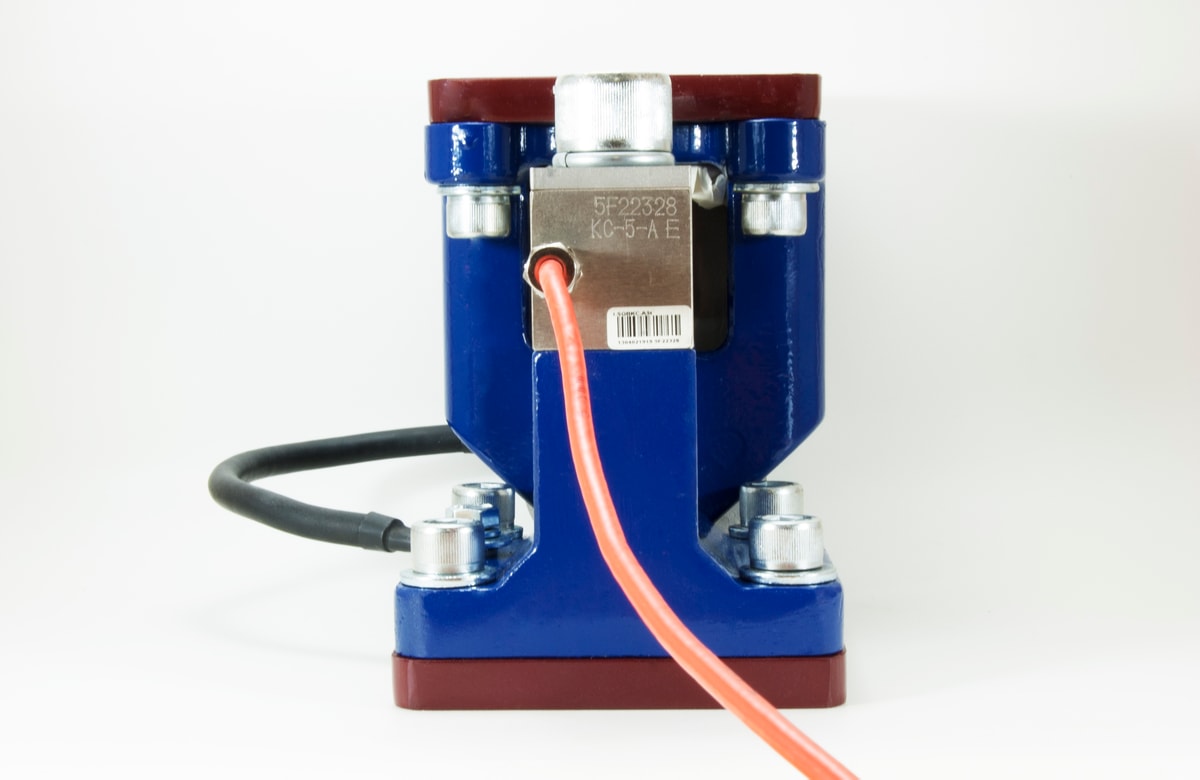

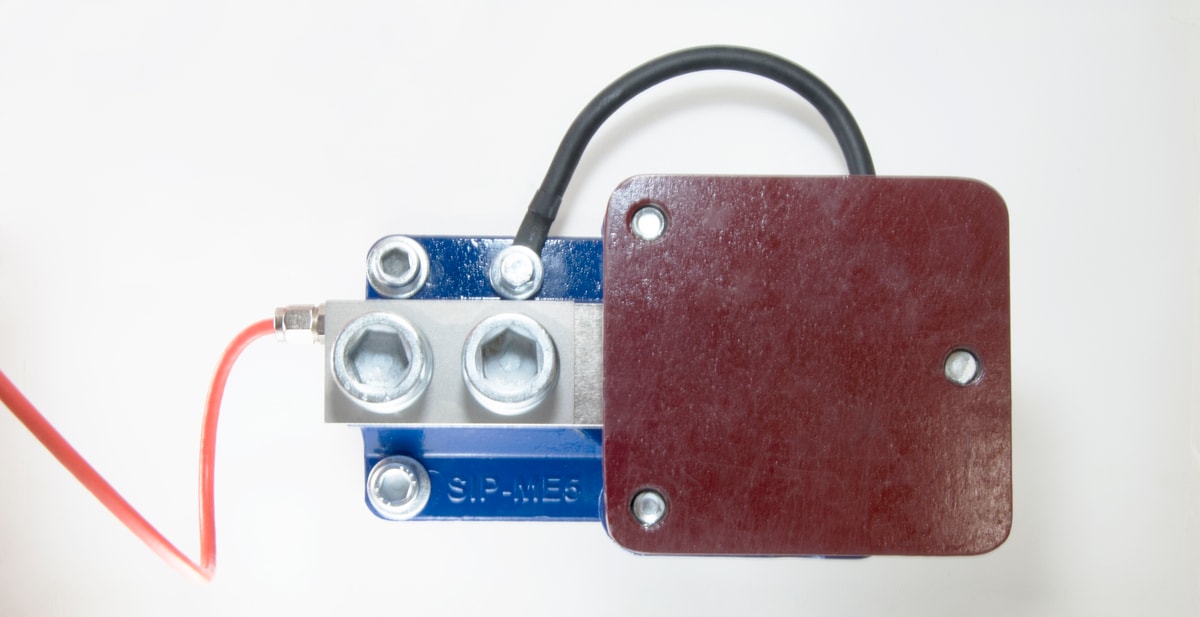

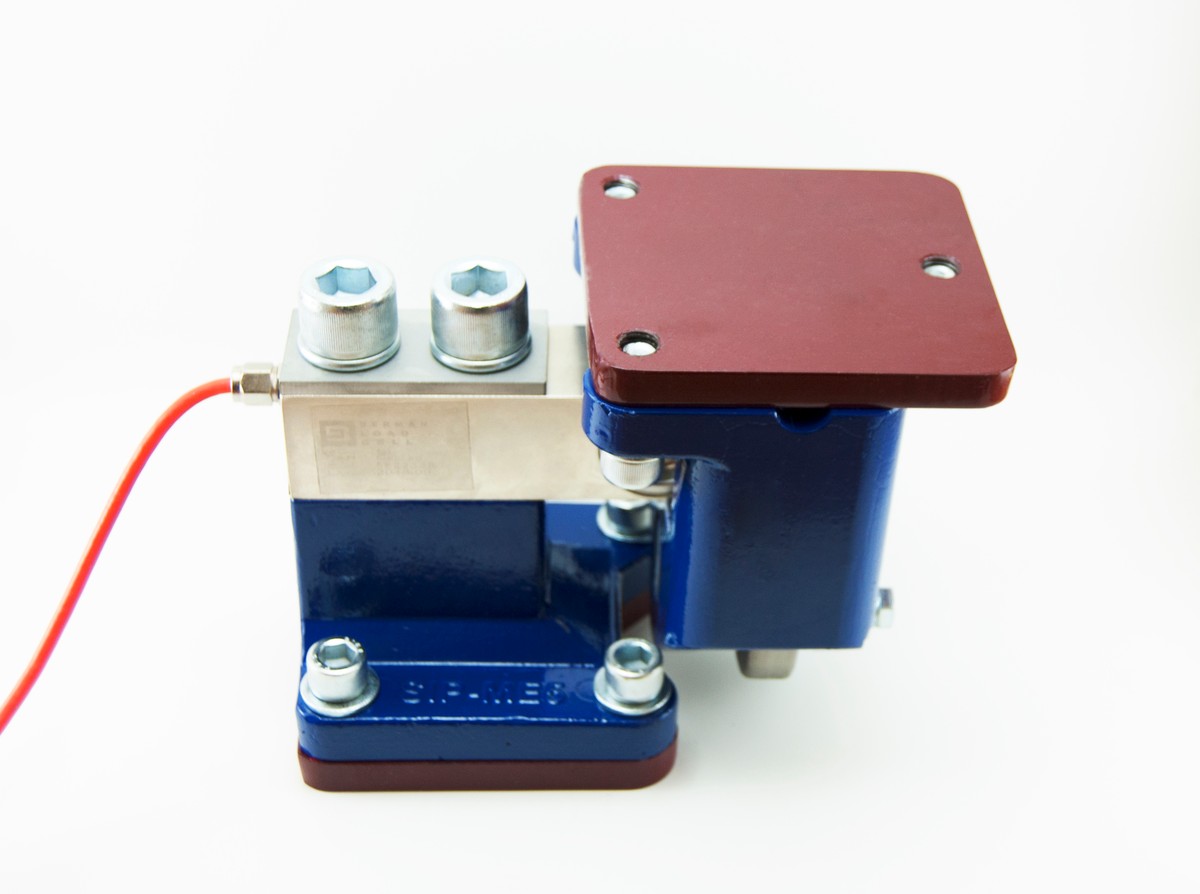

05 / 06Product mediaReference images and interactive product views.
06 / 06Technical dataCatalog attributes for this weigh module.
Module material Carbon Steel Manufacturer Berman Weighing Technology Product Order code Berman SIP-BLME Weighing Module SIP-BL Is this always a complete weighing kit?
No. Some options are module-only or hardware-only. Confirm the selected option before ordering.
What should be checked before replacement?
Match capacity, load-cell model, module geometry, cable length, junction box, thread, and the vessel or platform load path.
Can WeightechUSA help confirm fit?
Yes. Send photos, dimensions, old part numbers, capacity, cable details, and the application.
Talk to a WeightechUSA weigh-module specialist.
Send the vessel or platform details, current load-cell labels, mounting dimensions, cable length, and target capacity. We will confirm whether SIP-BL is the right fit.
Email SalesCall +1 (954) 666-0877 × 305 Material Carbon Steel Internal Battery -- Manufacturer Berman Weighing Technology
