BTWM Compression Disk Weight module Kit
- Description
- Additional Information
- 01 / 06Compression weigh modules
Compression weigh modules for confirmed-fit vessel and scale builds.
The BTWM Compression Disk Weight module Kit is a compression weigh-module kit. Use it for new scale builds or retrofit work after confirming load-cell capacity, module count, mounting geometry, cable length, junction box requirements, and the forces the structure must restrain.
5,000-35,000 lbCapacityStainless SteelModule material30 ft shielded cableCable length1 IP68-rated stainless steel junction boxJunction box02 / 06Application fitWhere this weigh module belongs.
Select the module by force path, vessel movement, required hardware, environment, and what the kit actually includes.
01Tanks and hoppers
Compression modules support vertical load paths in vessels, silos, and process bins.
compression02Low-profile installs
Compression disk modules fit installations where module height and side-load handling matter.
low profile03Field wiring
Match junction box, cable length, grounding, and load-cell signal to the indicator or transmitter.
wiring03 / 06Kit scopeConfirm what is included before quoting or installing.

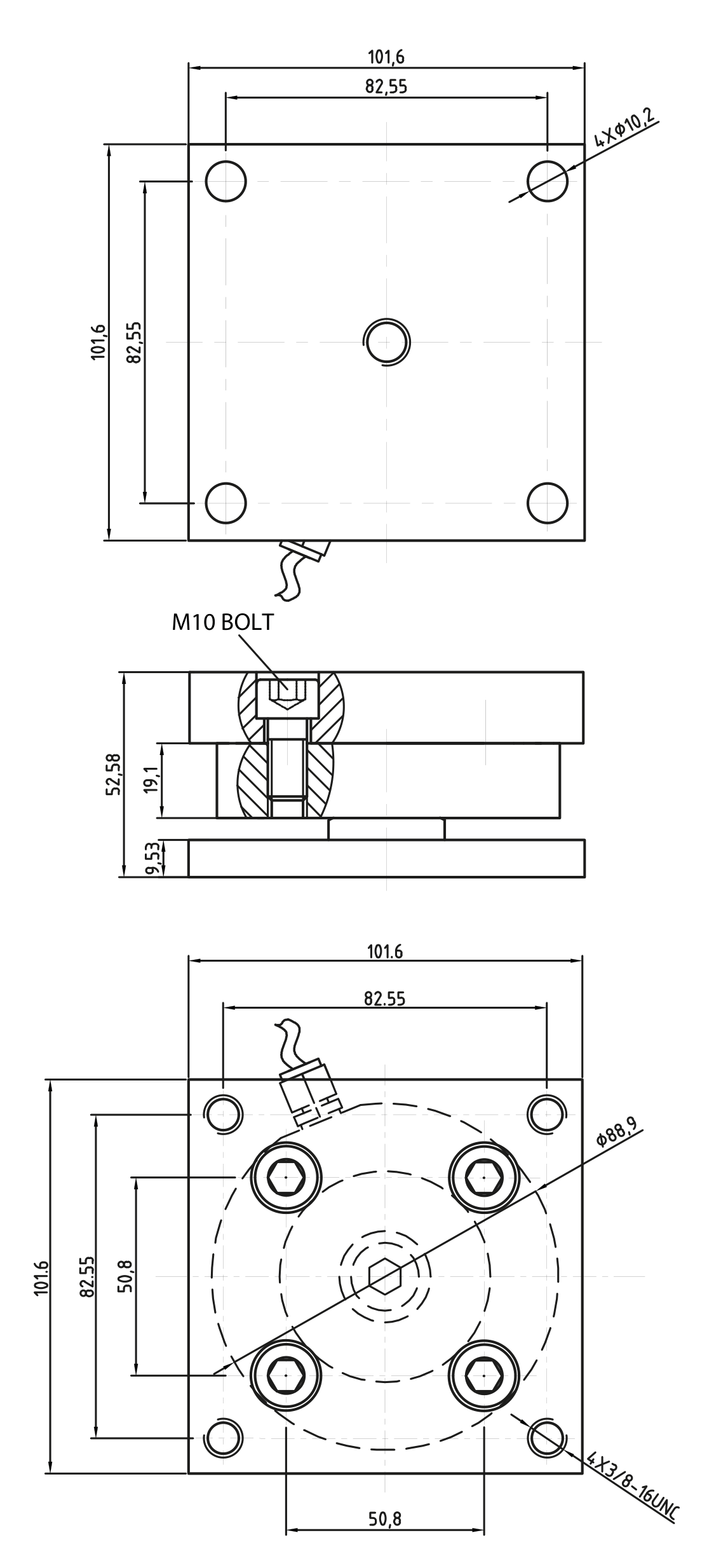

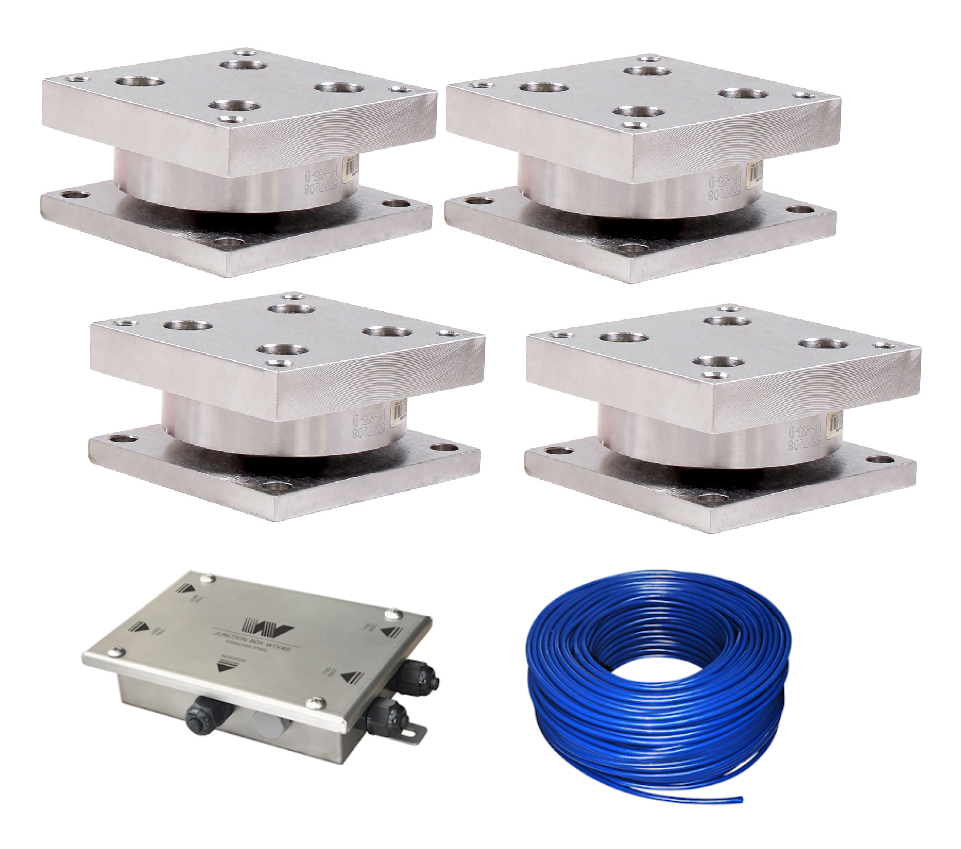

- 4x BTWM stainless-steel compression disk load cells (5–35 klb capacities)
- 30 ft heavy-duty, shielded cable assembly
- 1 IP68-rated stainless steel junction box for secure field wiring
- Top Plate included
04 / 06Installation notesA weigh module is only accurate when the structure around it is correct.
Before ordering, verify the load path, restraint direction, expansion or movement allowance, lift-off protection, grounding, cable routing, and indicator input.
STRUCTUREMechanical restraint
Check side load, lift-off, thermal expansion, and vessel movement before final selection.
WIRINGElectrical interface
Confirm load-cell signal, junction box trim, cable length, shielding, and indicator compatibility.
SERVICEService access
Leave clearance for load-cell replacement, leveling, grounding strap inspection, and cable service.
05 / 06Product mediaReference images and interactive product views.
06 / 06Technical dataCatalog attributes for this weigh module.
Module material Stainless Steel Cable length 30 ft shielded cable Junction box 1 IP68-rated stainless steel junction box Protection IP68 Manufacturer Berman Weighing Technology Product Order code BTWM Compression Disk Weight module Kit BTWM-4ea-kit Is this always a complete weighing kit?
No. Some options are module-only or hardware-only. Confirm the selected option before ordering.
What should be checked before replacement?
Match capacity, load-cell model, module geometry, cable length, junction box, thread, and the vessel or platform load path.
Can WeightechUSA help confirm fit?
Yes. Send photos, dimensions, old part numbers, capacity, cable details, and the application.
Talk to a WeightechUSA weigh-module specialist.
Send the vessel or platform details, current load-cell labels, mounting dimensions, cable length, and target capacity. We will confirm whether BTWM-4ea-kit is the right fit.
Email SalesCall +1 (954) 666-0877 × 305 Protection class IP68 Material Stainless Steel Combined error 5klb - 35klb ± 0.3 | 100klb ± 0.5 Input impedance 5klb - 35klb: 400 ± 20 Ω | 100klb: 750 ± 10 Ω Insulation resistance >5000 Ω Internal Battery -- Output impedance 5klb - 35klb: 352 ± 3 Ω | 100klb: 703 ± 2 Ω Safe sideload 200 %F.S. Sensitivity 3.0 ± 0.01 mV/V Manufacturer Berman Weighing Technology Cable length 8 m
