WeightechUSA WTX-CLM8 Smart Junction Box, 8 Independent Channels, IP67 Stainless Steel, 9-36 VDC
IP67; Stainless Steel; 8 load cells; 9-36 VDC
1,390.00
$1,390.00
  • WeightechUSA WTX-CLM8 smart junction box built around the Laumas CLM8 board
  • 8 independent load-cell channels; up to 16 load cells (350 Ω) in parallel
  • IP67 stainless steel box, 317 × 184 × 88 mm
  • RS485 + RS232 serial ports, internal LCD, lightning and surge protection
  • DC version: 9-36 VDC power supply
  • Working temperature -20 to +60 °C; -10 to +40 °C for legal-for-trade use

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 06WeightechUSA WTX-CLM8 smart junction box

    IP67 stainless steel smart junction box that digitizes up to 8 analog load-cell channels.

    The WeightechUSA WTX-CLM8 (SKU 23118) is a smart junction box built around the Laumas CLM8 board. It reads up to 8 independent load-cell channels from analog load cells, with an internal alphanumeric LCD, RS485 and RS232 serial ports and lightning and surge protection, in an IP67 stainless steel box. SKU 23118 is the DC-powered version (9-36 VDC, Weightech code 506157); an AC version (100-240 VAC) is also made.

    8
    Independent load-cell channels per box
    IP67
    Submersion and water-jet protection
    16
    Load cells max. (350 Ω, in parallel)
    317×184×88mm
    Overall size
    02 / 06Applications

    Where the WTX-CLM8 is used.

    WeightechUSA lists road (truck) scales as the application, and the datasheet covers on-board weighing systems and installations that need more than one box (p.2, p.4). As a multi-channel junction box it also suits:

    01

    Truck scales

    One box reads up to 8 channels; two boxes can be linked to cover up to 16 channels.

    02

    On-board weighing

    Approved in Europe for on-board weighing systems; the DC version suits DC-powered installations, and an inclinometer can correct for tilt up to ±10°.

    03

    Multi-cell platform and vessel scales

    Analog load cells are digitized channel by channel, with up to 16 load cells in parallel.

    04

    Retrofits and service

    Works with all analog load cells on the market, so existing cells can stay in place.

    03 / 06Construction

    Built for outdoor and washdown conditions.

    01

    IP67 stainless steel box

    IP67: protection against submersion and water jets. The lid seal is built into the box and closed with screws.

    02

    Pressure equalizing valve

    A pressure equalizing valve prevents internal condensation without letting water or oil in, extending equipment life.

    03

    Stainless steel PG9 cable glands

    PG9 stainless steel cable glands for a stronger, more robust and safer connection.

    04

    Mounting flange

    Overall size 317 × 184 × 88 mm including the mounting flanges (see the drawing in the datasheet).

    04 / 06Functions

    What the WTX-CLM8 does.

    01

    8 independent channels

    Reads up to 8 independent load-cell channels per box; two boxes can be linked for up to 16 channels.

    02

    Digital equalization and load distribution

    With the PesoNet and WT27-R Graphic indicators it provides digital equalization and load distribution analysis, which makes troubleshooting easier.

    03

    RS485 and RS232

    Two serial ports: 1 RS485 and 1 RS232. Compatible with PesoNet and WT27-R Graphic.

    04

    Internal LCD

    Internal alphanumeric LCD.

    05

    Lightning and surge protection

    Built-in protection device against lightning and electrical surges.

    06

    Compatible equipment

    The datasheet lists as compatible: Lora radio USR-LG206, USR-W610 serial-to-WiFi / WiFi-to-Ethernet converter, SPBR protection panel and a Laumas inclinometer.

    05 / 06Technical data

    WTX-CLM8 specifications.

    Brand / modelWeightechUSA WTX-CLM8 smart junction box
    SKU23118
    BoardLaumas CLM8, 8 independent channels
    ProtectionIP67
    EnclosureStainless steel box, PG9 stainless steel cable glands
    Overall dimensions317 x 184 x 88 mm (with mounting flanges)
    Power supply9-36 VDC, 4.4 A (39.6 W) - DC version, Weightech code 506157
    CLM8 board supply (after power supply)12/24 VDC +/-10%, 5 W
    Load cellsUp to 16 x 350 ohm in parallel, 5 VDC / 240 mA supply to cells
    A/D converter8 channels, 24-bit (16,000,000 points), 4.8 kHz
    Conversions per second600/s
    Measurement range+/-39 mV
    Maximum cell sensitivity+/-7 mV/V
    Linearity<0.01% full scale
    Thermal drift<0.0005% full scale/°C
    Display range+/-999999, 0-4 decimals, increments x1, x2, x5, x10, x20, x50, x100
    Digital filter21 levels, 5-600 Hz
    Serial ports2: 1 RS485 and 1 RS232
    Baud rate2400, 4800, 9600, 19200, 38400, 115200
    Humidity85%
    Storage temperature-30 to +80 °C
    Working temperature-20 to +60 °C
    Working temperature, legal-for-trade use-10 to +40 °C (type-approved instruments)
    ApprovalsApproved in Europe for on-board weighing systems per OIML R76:2006, EN 45501:2015 and WELMEC Guide 2.1:2001
    DatasheetWTX-CLM8 v01 r6, 05/05/2025 (Portuguese)
    06 / 06Part number and FAQ

    Order code.

    ProductOrder codeManufacturer part no.
    WeightechUSA WTX-CLM8 smart junction box23118WTX-CLM8Inox

    Is this a Laumas product?

    The WTX-CLM8 is a WeightechUSA smart junction box built around the Laumas CLM8 board. The Laumas CLM8 family (boards and boxes sold by Laumas) is listed on its own page.

    Is this the AC or the DC version?

    SKU 23118 is the DC version (9-36 VDC, code 506157). The WTX-CLM8 is also built in an AC version (100-240 VAC, code 505016); contact us if you need AC power.

    Is the enclosure IP67 stainless steel, ABS or DIN rail?

    The WTX-CLM8 is a single enclosure: an IP67 stainless steel box. The ABS and DIN rail options belong to the Laumas CLM8 family, not to the WTX-CLM8.

    Does it have Ethernet?

    The WTX-CLM8 datasheet lists RS485 and RS232 serial ports only. The Laumas CLM8 board offers Ethernet TCP/IP as an option on request; contact us to ask whether it can be supplied for the WTX-CLM8.

    What is the working temperature for legal-for-trade use?

    -10 to +40 °C for type-approved instruments. The general working range is -20 to +60 °C.

    Is the datasheet available in English?

    The current WTX-CLM8 datasheet (v01 r6) is in Portuguese. Contact us for an English summary.

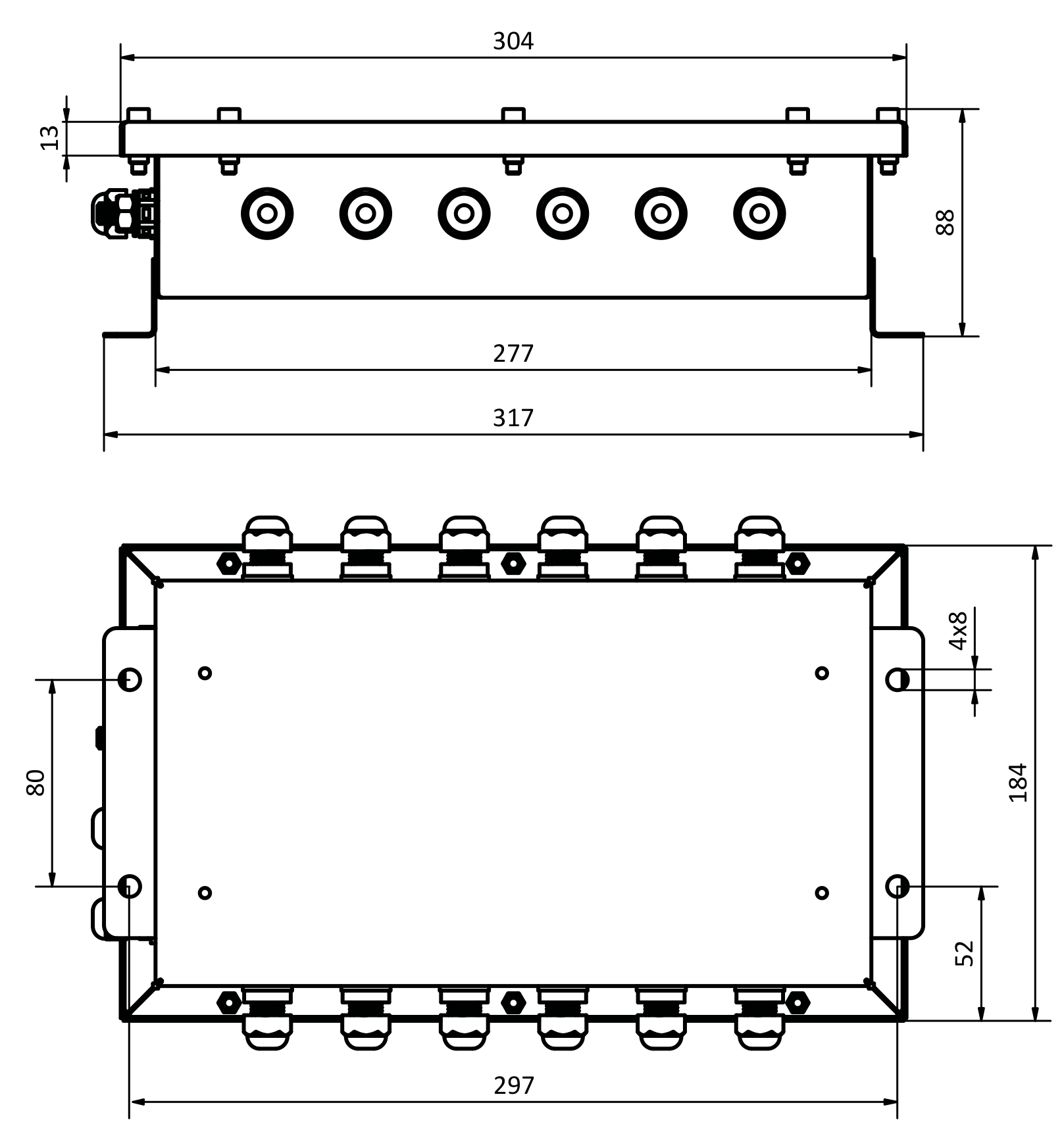

    DIMENSIONS

    Outline dimensions.

    WeightechUSA WTX-CLM8 Smart Junction Box, 8 Independent Channels, IP67 Stainless Steel, 9-36 VDC dimensions drawing
    Source: manufacturer datasheet
