Dinamica Generale 969-0121 Load Cell Bar 3.125" to 2.625"

SKU
22121
$662.50
  • Rated Mobile Load: 22500 Lbs. / 10206 Kg
  • Rated Static Load: 33750 Lbs. / 15309 Kg
  • Capacity: 20879 KG @ 2mV/V
  • Cable length: 30.8 ft / 10 m
  • Cable Connector: SPM
  • Replacement load cell for Avery Weigh-Tronix 55436-0016 load cell

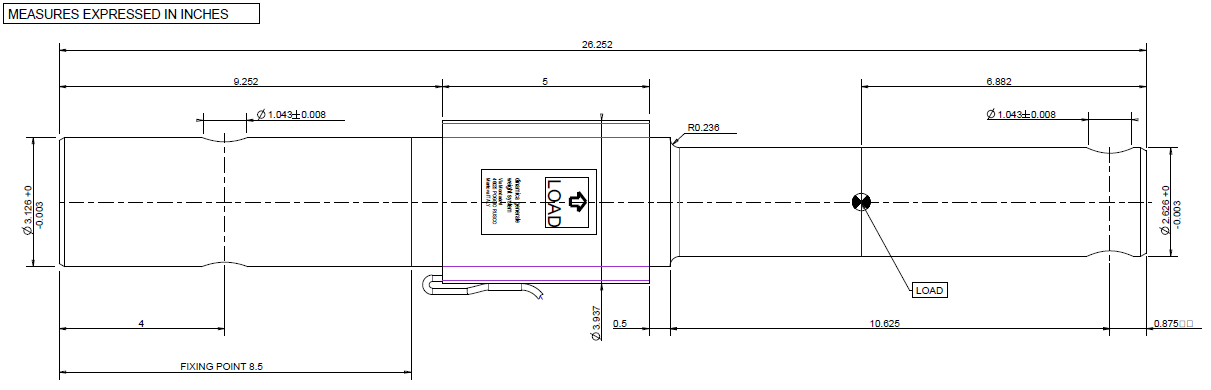

  • Overall Diameter: 3.125" necked down to 2.626"
  • Overall Length: 26.252"
  • Application: Mobile and Hitch
OR
  • Description
  • Additional Information
  • Mixer and Feeder Mobile Load Cell DG 969-0121

    • High-quality alloy steel: Dinamica Generale's special thermal treatment makes it stable for years
    • PTE cables: maximum protection against moisture, flame, and temperature (operating temperature -40° C ~ 70° C)
    • High resistant coating (480h salt spray testing)
    • Aluminum protection: strain gauge protected against impact (mobile models)
    • Sealed strain gauges: sealing agent and industrial grade potting compound protect against harsh use in the agricultural field
    • Temperature compensation as an option
    • Custom mechanical design available on request
    • IP68 Protection rate
    • Replacement load cell for Avery Weigh-Tronix 55436-0016 load cell

    Applications

    Feed Mixers, Forage Wagon, Grain Cart, Trailer, Baler, Bale Wrapper, Seed Tender, Manure, and Mineral Spreaders, Compactor.

    DG 969-0121 PDF Data Sheet
