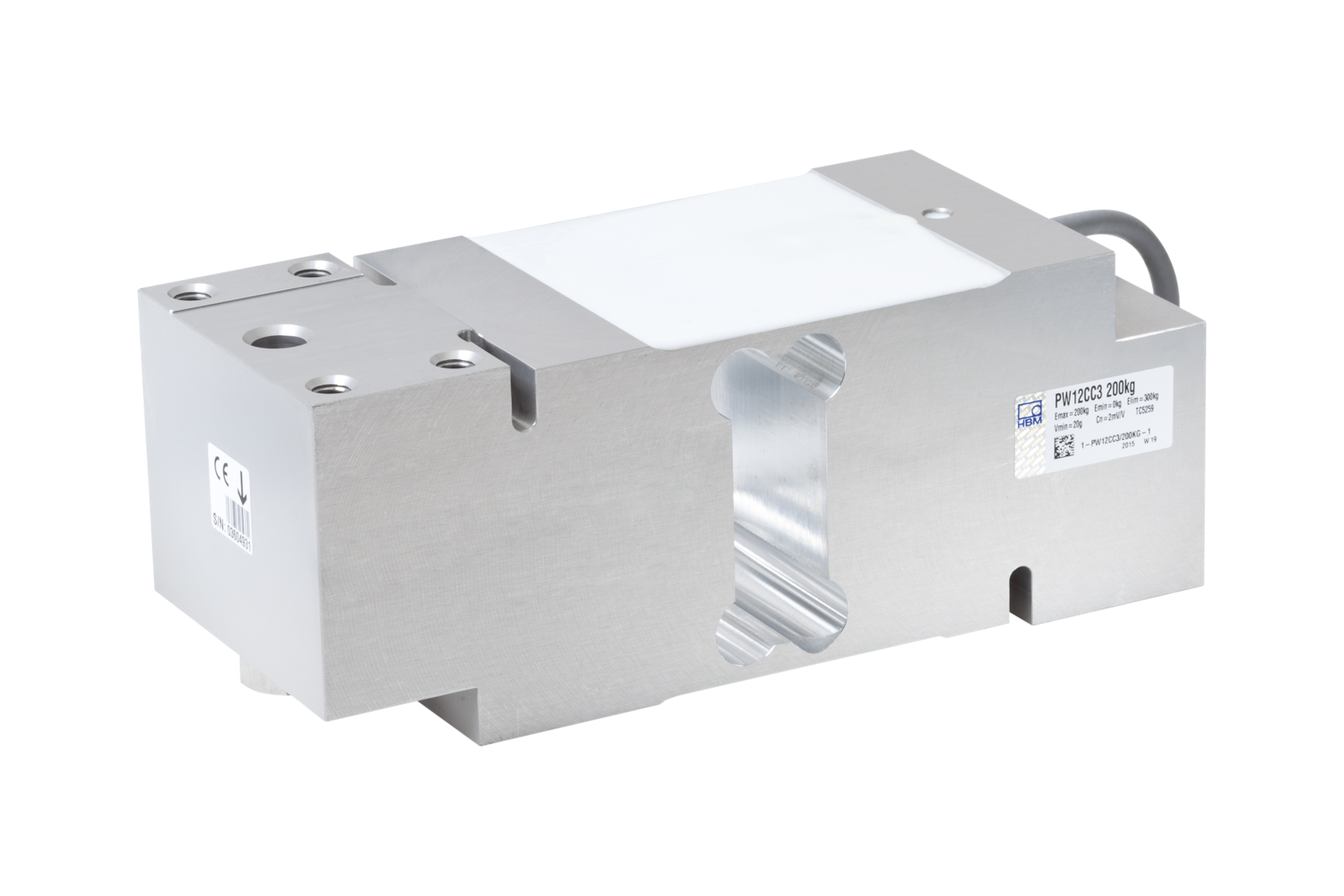

HBM PW12C Aluminum Single Point Load Cell
HBM · Load cell

PW12C Single Point Load Cell

SKU hbm-pw12
IP67; Aluminum; Analog signal; OIML
830.00
☎ x305
Select an option to see price $830.00
  • hbm-pw12 - HBM PW12C Single Point Load Cell
  • Type: Single point load cell
  • Material: Aluminum
  • Protection: IP67
  • Signal: Analog
  • Manufacturer: HBM
  • Capacity range: 75 kg – 750 kg
  • Available in 9 capacities, from 75 kg to 750 kg. See the table below for each SKU and part number.

Datasheet

* Required

OR
  • Description
  • Additional Information
  • 01 / 02Single Point Load Cell

    HBM 1-PW12CC3 single point load cell family.

    The HBM 1-PW12CC3 is a single point load cell family. This page describes the family; use the table below to select the SKU your application requires.

    75 kg – 750 kg
    Kg-line capacity range
    Aluminum
    Material
    02 / 02Technical data

    Series-wide catalog attributes.

    Values that differ per SKU are listed in the table below and on each SKU's own page.

    MaterialAluminum
    ProtectionIP67
    SignalAnalog
    Covering agentSilicone rubber
    Cable sheathPVC
    Input impedance300 – 500 Ω
    Output impedance300 – 500 Ω
    Insulation resistance> 2 GΩ (100 VDC)
    Compensated temperature−10 to +40 °C
    Operating temperature−10 to +50 °C
    Storage temperature−25 to +70 °C
    Reference voltage5 V
    Supply voltage range1 to 12 V
    Limit load150% FS
    Lateral load limit / breaking load300% FS
    Non-linearity / reversibility (typical)± 0.0166% Cn
    Minimum dead load output return± 0.0166% Cn
    Off-center load error (OIML R76)± 0.0233% Cn
    Temperature effect on zero (TC0) / ratio Y± 0.0140% Cn/10K, Y=10,000 (100, 200, 500 kg) / ± 0.0093% Cn/10K, Y=15,000 (75, 150, 300, 750 kg) / ± 0.0112% Cn/10K, Y=12,500 (250 kg) / ± 0.0110% Cn/10K, Y=12,700 (635 kg)
    Mounting threadM8 (property class 10.9, 35 N·m for 75–500 kg; property class 12.9, 42 N·m for 635/750 kg)
    Weight, approx.2.4 kg
    Cable6-wire shielded cable, 1.5/3/6/12 m options; 3 m standard
    Rated output2.0 ± 0.2 mV/V
    CAPACITY TABLE

    Available capacities.

    CapacityManufacturer part numberSKUApprovalPrice
    75 kg1-PW12CC3/75KG-1—$830.00
    100 kg1-PW12CC3/100KG-1—$830.00
    150 kg1-PW12CC3/150KG-1—$830.00
    200 kg1-PW12CC3/200KG-1—$1,157.00
    250 kg1-PW12CC3/250KG-1—$1,157.00
    300 kg1-PW12CC3/300KG-1—$950.00
    500 kg1-PW12CC3/500KG-1—$950.00
    635 kg1-PW12CC3-635kg-1—$950.00
    750 kg1-PW12CC3-750kg-1—$1,157.00
    DIMENSIONS

    Outline dimensions.

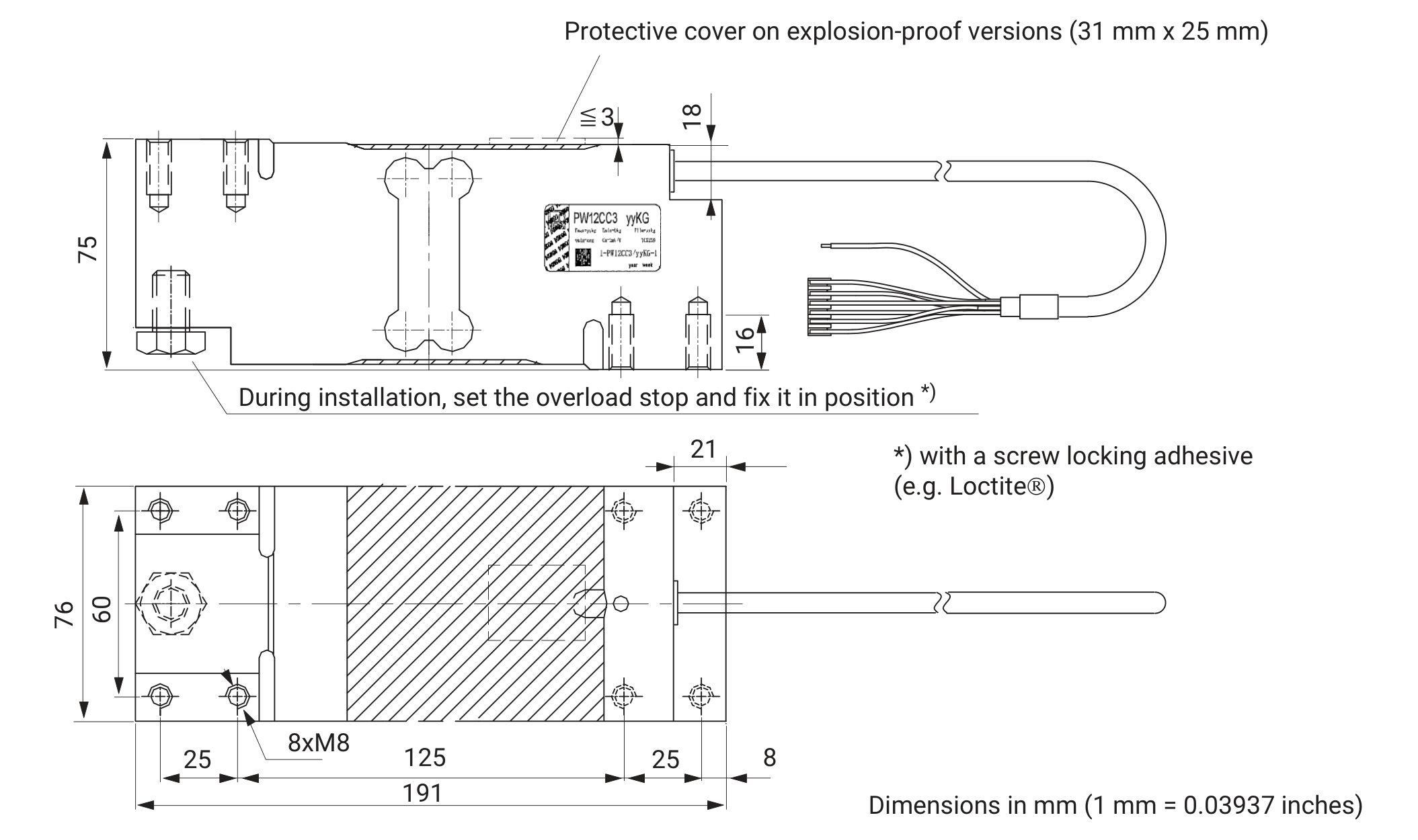

    HBM PW12C Aluminum Single Point Load Cell dimensions drawing
    Source: manufacturer datasheet
