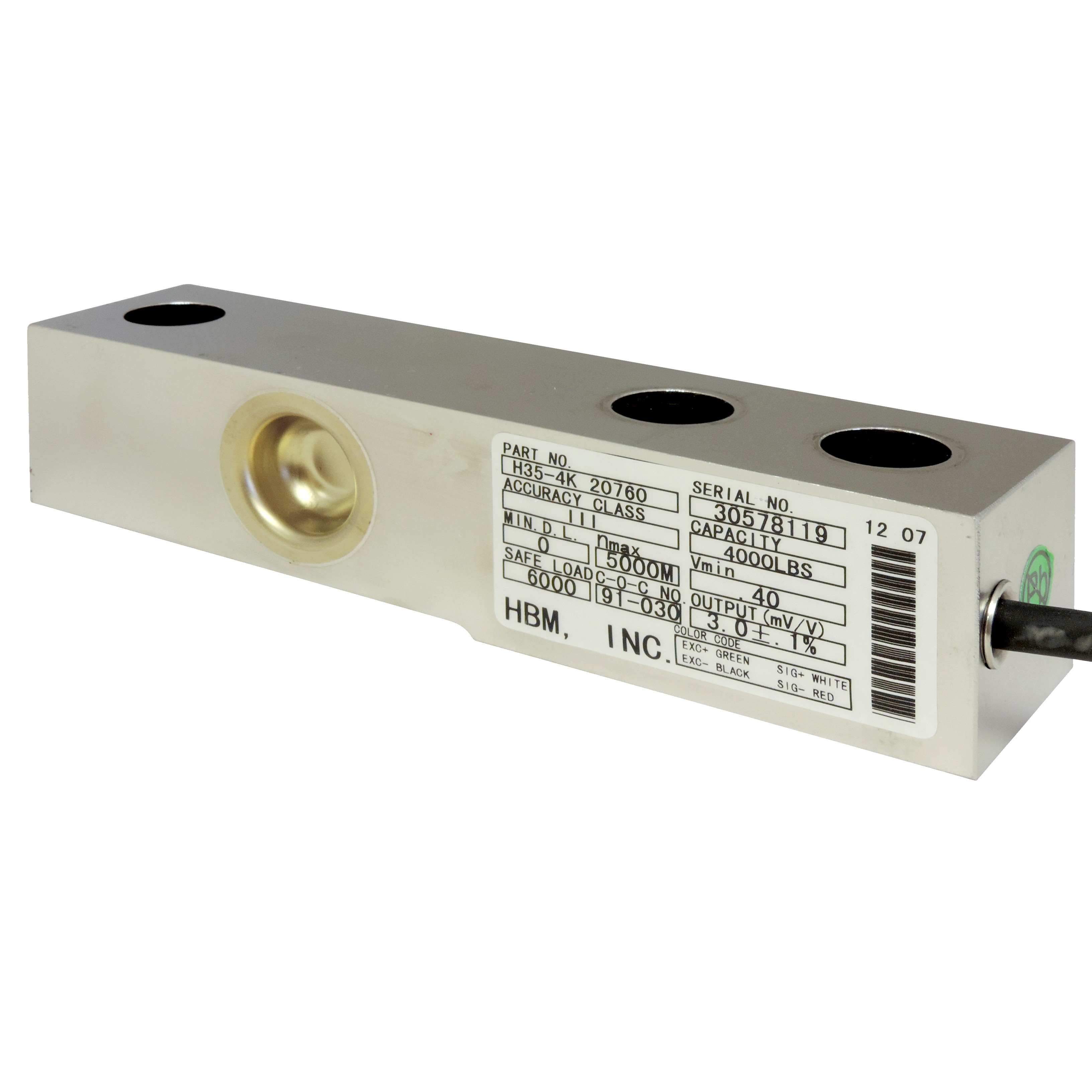

H35 Shear Beam Load CellHBM H35 Hermetically Sealed Shear Beam Load Cell
SKU 1-H35AN5
295.00
- Description
- Additional Information
- 01 / 02Shear Beam Load Cell
HBM 1-H35AN5 shear beam load cell family.
The HBM 1-H35AN5 is a hermetically sealed shear beam load cell family. This page describes the family; use the table below to select the SKU your application requires.
500 lb – 5,000 lbLb-line capacity rangeStainless steelMaterial02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Material Stainless steel Protection IP68 Signal Analog Input impedance > 350 Ω Output impedance 350 ± 2 Ω Insulation resistance > 5000 MΩ (100 V) Zero balance 0 ± 0.03 mV/V Compensated temperature −10 to +40 °C Operating temperature −30 to +70 °C Storage temperature −50 to +85 °C Recommended excitation 5 V Maximum excitation 15 V Safe overload 150% FS Ultimate overload 300% FS Creep (30 min) ± 0.03% Deflection at max. capacity 0.5 mm Cable Shielded 4-core round cable (19/0.127 mm), PVC jacket Rated output 3.0 ± 0.1% mV/V CAPACITY TABLEAvailable capacities.

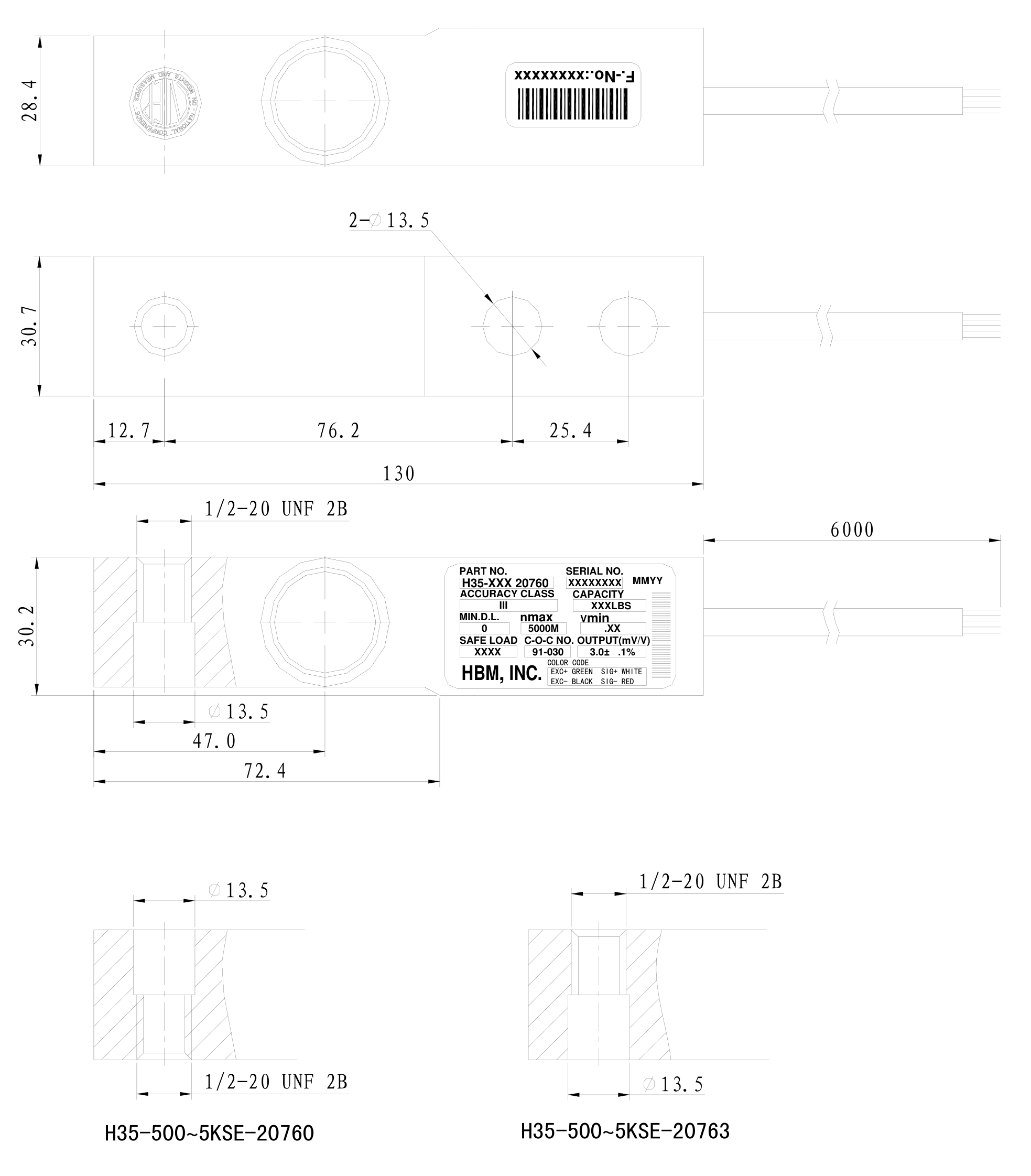

Capacity Manufacturer part number SKU Approval Price 500 lb 1-H35AN5/500-1 10321 — $473.00 1,000 lb 1-H35AN5/1K-1 10322 — $473.00 2,500 lb 1-H35AN5/2.5K-1 10323 — $789.00 4,000 lb 1-H35AN5/4K-1 10324 — $789.00 5,000 lb 1-H35AN5/5K-1 10325 — $789.00 DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which 1-H35AN5 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Signal Analog Protection class IP67 Material Stainless Steel Combined error ≤ ±0.02 %FS Compensated temp range −10 to +40 °C Input impedance 385 Ω nominal Insulation resistance 5000 MΩ Internal Battery -- Maximum safe overload 150 %FS Operating temp range −18 to +65 °C Output impedance 350 ± 3 Ω Rated output 3.0 mV/V Recommended excitation 5 to 15 VDC Safe sideload 100 %FS Manufacturer HBM Interchangeable Celtron SQB HSS, Rice Lake RL35083, Sensortronics 65083 Approval NTEP Short name H35 Shear Beam Load Cell
