WT4 Junction BoxWeightechUSA WT4 Aluminum Junction Box for 4 Load Cells, IP68
- Description
- Additional Information
- 01 / 06WeightechUSA WT4 junction box
Compact IP68 cast-aluminum junction box for 2 to 4 load cells.
The WeightechUSA WT4 (SKU 40001) sums up to four analog load cells into one signal for the weight indicator, with an individual trimpot per cell for corner adjustment. Cast-aluminum housing, PA66 cable glands and IP68 sealing make it suitable for indoor and outdoor scales.
2–4Load cells per boxIP68Sealing — high-pressure jets and dust≈4.2%Corner adjustment range (350 Ω cells)135×65×38mmOverall size02 / 06ApplicationsWhere the WT4 is used.
The datasheet lists automation systems, platform scales, and silos or reactors in industrial yards, including outdoors. As a general-purpose 4-cell junction box it is also used on:
01Truck and vehicle scales
Groups the load cells of a scale section and trims corners to match.
02Livestock and cattle chute scales
Compact sealed box for platforms and chutes exposed to washdown and dust.
03Floor and platform scales
Four-corner platforms where each corner must read the same weight.
04Silos, tanks and reactors
Multi-cell vessel weighing in industrial yards, indoors or outdoors.
03 / 06ConstructionWhat the box is built from.
01Cast-aluminum housing
Cast aluminum with a high degree of thermal and electrical insulation, in a compact 135 × 65 × 38 mm footprint.
02PA66 cable glands
Polyamide PA66 glands accept cables from 3.5 to 7 mm outer diameter, with excellent sealing and high mechanical resistance.
03IP68 sealed enclosure
Sealing finish rated IP68: the box can be exposed to high-pressure jets and dust.
04 / 06Corner adjustmentOne trimpot per load cell.
Inside, the adjustment board carries four groups of five terminals (CN1–CN4), one per load cell, each paired with its own trimpot (T1–T4). The adjustment range is approximately 4.2% of output for 350 Ω load cells.
STEP 1Open the jumpers
Remove jumpers J1, J2, J3 and J4 — always all four together.
STEP 2Center the trimpots
New boxes ship centered. Otherwise turn each trimpot to the end of its range (sequential click), then 10 turns back.
STEP 3Know the direction
To lower a corner reading, turn VR1 (T1) and VR2 (T2) clockwise, VR3 (T3) and VR4 (T4) counterclockwise.
STEP 4Compare and trim
Zero the indicator, load each corner and compare diagonally (cell 1 vs 3, 2 vs 4). Trim the higher corner down to match; repeat until equal.
05 / 06Technical dataWT4 specifications.
Brand / model WeightechUSA WT4 SKU 40001 Load cells 2 to 4 per box Corner adjustment Individual trimpot per cell, approx. 4.2% of output for 350 ohm cells Terminals 4 groups of 5 terminals (CN1-CN4) Protection IP68 (high-pressure jets and dust) Housing Cast aluminum Cable glands PA66 polyamide, 5 glands (4 load cell + 1 output), cable OD 3.5-7 mm Overall dimensions 135 x 65 x 38.3 mm (5.3 x 2.5 x 1.5 in) Mounting 4 holes, dia. 4.3 mm, on 107.2 x 52.9 mm centers 06 / 06Part number and FAQOrder code.
Product Order code WeightechUSA WT4 junction box 40001 How many load cells can I connect?
Two to four load cells per WT4 box.
Can it be installed outdoors?
Yes. The datasheet lists outdoor industrial yards as an application, and the enclosure is rated IP68 against high-pressure jets and dust.
Which cable sizes fit the glands?
Cables from 3.5 mm to 7 mm outer diameter.

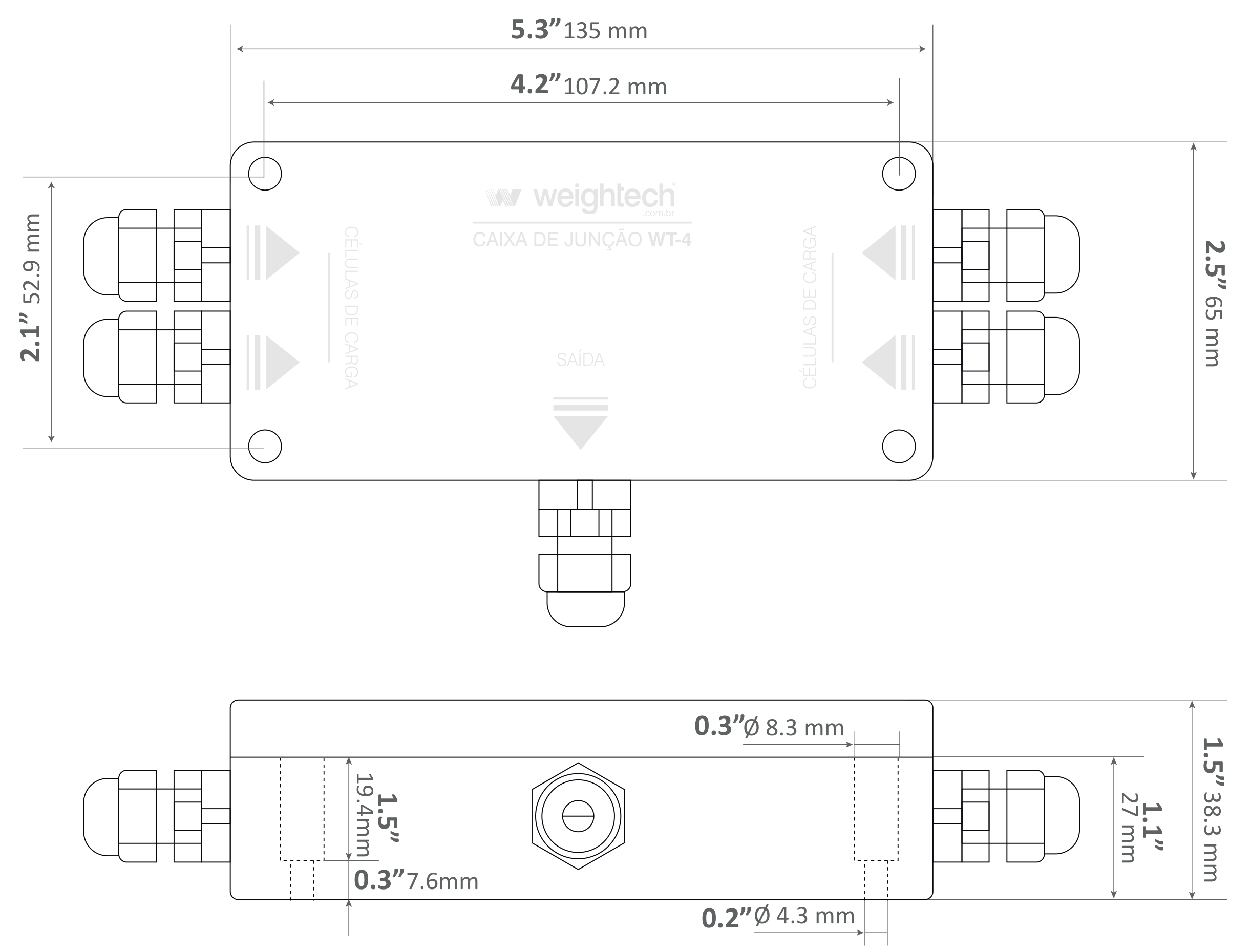

DIMENSIONSOutline dimensions.
Source: manufacturer datasheet Talk to a WeightechUSA specialist.
Questions about fit, calibration, certification, or volume pricing? Our team works on quotes the same day.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Protection class IP68 Material Aluminum Internal Battery no Manufacturer WeightechUSA Max. Number of Connected Load Cells 4 Manufacturer's Part Number WT4 Short name WT4 Junction Box Hero chips IP68; Aluminum; Up to 4 load cells
