Laumas CDG4EQ3A Hygienic Junction Box with Equalization Board, AISI 304 Stainless Steel, IP68, 4 Load Cells
Laumas · Accessory

CDG4EQ3A Junction Box

SKU 23197
IP68; Stainless Steel; Laumas
327.00
$327.00
  • Laumas CDG4EQ3A (CDG 3A series) hygienic junction box, equalization board
  • AISI 304 stainless steel, cylindrical design to facilitate sanitization
  • IP68; blue hygienic cable gland for up to 7 cables
  • Hygienic device RPSCQC authorized by 3-A SSI
  • Up to 4 load cells (4/6 wires); 20 Ω potentiometer per cell
  • 143.4 mm long, 68 mm diameter, working temperature -20 to +60 °C
  • Two hygienic M5 screws with seal included

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 06Laumas CDG4EQ3A hygienic junction box

    Cylindrical AISI 304 stainless steel junction box, IP68, with load cell equalization.

    The Laumas CDG4EQ3A (SKU 23197, CDG 3A series) is a hygienic junction box for up to 4 load cells (4 or 6 wires) with an equalization board: one 20 Ω potentiometer per load cell. The cylindrical AISI 304 stainless steel body is designed to be easy to sanitize, and it carries the RPSCQC hygienic device authorized by 3-A SSI.

    4
    Load cells max. (4/6-wire)
    IP68
    Protection rating
    304
    AISI stainless steel body
    143.4mm
    Length, body dia. 68 mm
    02 / 06Applications

    Where the CDG4EQ3A is used.

    The datasheet presents it as a hygienic junction box, built to ease sanitization. As a stainless steel, IP68 box with an equalization board it suits scales that are washed down or must be kept hygienic, such as:

    01

    Food and beverage scales

    Platform and hopper scales where the junction box must be cleaned with the rest of the line.

    02

    Washdown platforms and floor scales

    Four-corner scales that are hosed down and need the corners equalized.

    03

    Tank and vessel weighing

    Up to four load cells combined into a single signal for the indicator.

    04

    Hygienic process equipment

    Applications that call for a sanitary-design junction box with a 3-A SSI authorized device.

    03 / 06Construction

    Designed to be easy to sanitize.

    01

    AISI 304 stainless steel, cylindrical

    Hygienic junction box in AISI 304 stainless steel; the cylindrical design facilitates sanitization.

    02

    IP68 protection

    IP68 protection rating.

    03

    Blue hygienic cable gland

    Blue hygienic cable gland for the passage of up to 7 cables.

    04

    3-A SSI authorized device

    Hygienic device RPSCQC authorized by 3-A SSI.

    05

    Hygienic M5 screws included

    Two hygienic M5 screws with seal are included in the supply.

    06

    Flange mounting

    Mounting flange 92 mm wide with 2 holes of 5.5 mm diameter; body diameter 68 mm, length 143.4 mm.

    04 / 06Equalization

    One 20 Ω potentiometer per load cell.

    The CDG4EQ3A board has a 20 Ω potentiometer (W1–W4) for each load cell (CL1–CL4). For load cells with 2 mV/V sensitivity the difference between sensitivities must not be greater than 0.1 mV; for 3 mV/V load cells, not greater than 0.15 mV.

    STEP 1

    Zero the potentiometers

    Turn each potentiometer screw counterclockwise to 0.

    STEP 2

    Read each corner

    Place a sample weight on each load cell in turn and note the value shown on the display.

    STEP 3

    Trim the higher cells

    Adjust the potentiometers of the cells that read higher down to the lowest reading, which stays unchanged.

    STEP 4

    Repeat and calibrate

    Repeat until the display shows the same value for all four cells, then calibrate the instrument (see its user manual).

    05 / 06Technical data

    CDG4EQ3A specifications.

    Brand / modelLaumas CDG4EQ3A (CDG 3A series)
    SKU23197
    BoardEqualization board, 20 ohm potentiometer per load cell (W1-W4)
    Load cellsUp to 4, 4 or 6 wires
    MaterialAISI 304 stainless steel
    ProtectionIP68
    Cable glandBlue hygienic gland for up to 7 cables
    Hygienic deviceRPSCQC, authorized by 3-A SSI
    Working temperature-20 to +60 °C
    Supplied withTwo hygienic M5 screws with seal
    Length143.4 mm
    Body diameter68 mm
    Flange width92 mm
    Mounting holes2 x dia. 5.5 mm
    Load cell matchingSensitivity difference max. 0.1 mV (2 mV/V cells) or 0.15 mV (3 mV/V cells)
    Marks shown on datasheetCE, UKCA, 3-A
    06 / 06Part number and FAQ

    Order code.

    ProductOrder code
    Laumas CDG4EQ3A hygienic junction box, equalization board23197

    What is the difference between CDG4EQ3A and CDG43A?

    The CDG 3A series has two boards. The CDG4EQ3A (this product) is the equalization board, with a 20 Ω potentiometer per load cell. The CDG43A is the parallel connection board. The body and features are the same.

    How many load cells can it connect?

    Up to 4 load cells, 4-wire or 6-wire.

    What is the working temperature?

    -20 to +60 °C.

    Are mounting screws included?

    Yes. Two hygienic M5 screws with seal are included in the supply.

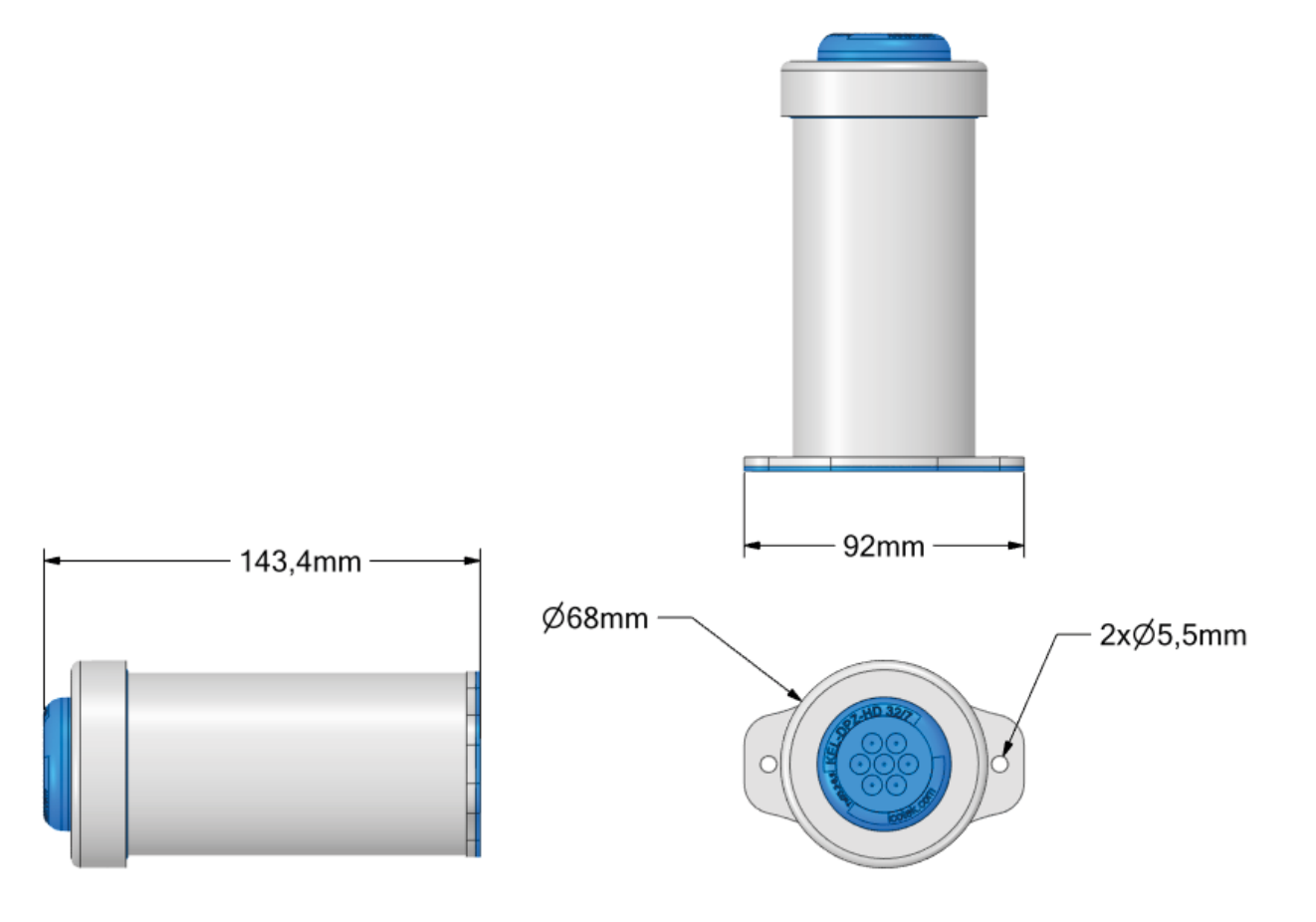

    DIMENSIONS

    Outline dimensions.

    Laumas CDG4EQ3A Hygienic Junction Box with Equalization Board, AISI 304 Stainless Steel, IP68, 4 Load Cells dimensions drawing
    Source: manufacturer datasheet
