Laumas CLM8inox Intelligent Junction Box, 8 Independent Channels, IP67 AISI 304 Stainless Steel Box
No · Accessory

CLM8 Junction Box · SS Box · CLM8inox

SKU 23117
IP67; Stainless Steel; RS485, RS232; Up to 8 load cells; 12-24 VDC
637.00
$637.00
  • Laumas CLM8inox intelligent junction box, 8 independent load-cell channels
  • IP67 AISI 304 stainless steel box, 200 × 148 × 45 mm, 8+2 M16x1.5 glands
  • Digital equalization, load distribution analysis, automatic diagnostics
  • RS485 / RS232 (ModBus RTU, ASCII Laumas); Ethernet TCP/IP option on request
  • Up to 16 load cells (350 Ω), 12–24 VDC
  • Working temperature -20 to +60 °C; -10 to +40 °C for legal-for-trade use
  • OIML R76:2006 class III, 3 x 10000 divisions

Datasheet

OR
  • Description
  • Additional Information
  • 01 / 06Laumas CLM8inox stainless steel box

    CLM8inox: the CLM8 in an IP67 AISI 304 stainless steel box.

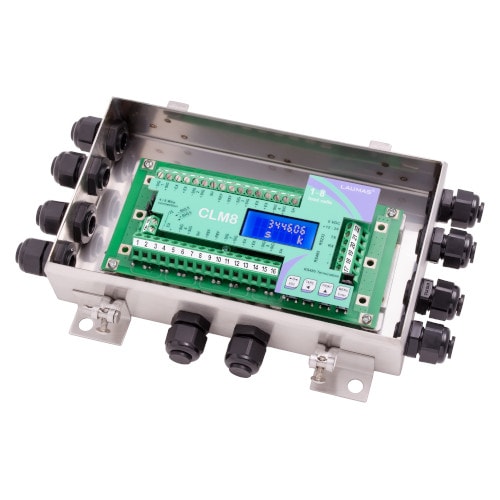

    The Laumas CLM8inox (SKU 23117) is the IP67 AISI 304 stainless steel version of the CLM8 intelligent junction box: eight independent load-cell channels with digital equalization, load distribution analysis and automatic diagnostics, a backlit LCD with a 4-key keyboard, and RS485/RS232 communication.

    8
    Independent load-cell channels
    16
    Load cells max. (350 Ω, in parallel)
    IP67
    AISI 304 stainless steel box
    200×148×45mm
    Overall size
    02 / 06Applications

    Where the CLM8inox is used.

    The datasheet shows the CLM8 in a weighbridge system: load cells feeding the CLM8, which connects to a W series indicator, database, printer and remote display (p.2). As a multi-channel junction box it is also used on:

    01

    Truck scales and weighbridges

    Reads every load cell separately and shows the load distribution across them.

    02

    Tank, hopper and silo weighing

    Multi-cell vessel weighing with per-cell diagnostics.

    03

    Platform and floor scales

    Digital equalization replaces trimpot adjustment of the corners.

    04

    Service and troubleshooting

    Per-channel readings (in mV) and fault reporting help locate a bad cell or cable.

    03 / 06Enclosure

    What the box is built from.

    01

    AISI 304 stainless steel

    IP67 stainless steel version, 200 × 148 × 45 mm.

    02

    8+2 M16x1.5 cable glands and plugs

    Fitted with 8+2 M16x1.5 cable glands and plugs.

    03

    Four fixing holes

    Four fixing holes of 4 mm diameter on 148 × 132 mm centers.

    04 / 06What the CLM8 does

    Intelligent functions on every version.

    01

    Digital equalization

    Place a sample weight at each load cell and the 8 channels are equalized digitally in one step, free of drift over time.

    02

    Load distribution analysis

    Shows the load percentage on each active channel, with an archive to store, consult and print.

    03

    Automatic diagnostics

    Detailed diagnostics of each load cell (max. 8) and immediate reporting of anomalies, including on a connected weight indicator.

    04

    Communication

    RS485 and RS232 with ModBus RTU, ASCII Laumas or continuous one-way transmission. Up to 32 instruments on one RS485 line (99 with repeaters).

    05

    Tilt compensation (optional)

    With an optional inclinometer (not included) the weight is corrected for tilt up to ±10°.

    06

    Event archive

    Stores the last 50 significant events: zeroing, calibration, equalization and alarms.

    05 / 06Technical data

    CLM8inox specifications.

    Brand / modelLaumas CLM8inox
    SKU23117
    VersionIP67 AISI 304 stainless steel box (code CLM8INOX)
    EnclosureAISI 304 stainless steel
    ProtectionIP67
    Overall dimensions200 x 148 x 45 mm; 4 fixing holes dia. 4 mm on 148 x 132 mm centers; 8+2 M16x1.5 cable glands and plugs
    Channels8 independent load-cell channels
    Load cellsUp to 16 x 350 Ω, 4/6-wire, 5 VDC / 240 mA supply
    Power supply12–24 VDC ±10%, 5 W (LPS or Class 2 source)
    A/D converter8 channels, 24-bit (16,000,000 points), 4.8 kHz
    Conversions per second600/s
    Measurement range±39 mV
    Usable load cell sensitivity±7 mV/V
    Linearity<0.01% full scale
    Thermal drift<0.0005% full scale/°C
    DisplayBacklit alphanumeric LCD, 2 lines x 8 digits (5 mm), visible area 38 x 16 mm, 4-key keyboard
    Display range±999999; 0–4 decimals; increments x1, x2, x5, x10, x20, x50, x100
    Digital filter21 levels, 5–600 Hz
    Serial portsRS485, RS232 (ModBus RTU, ASCII Laumas, continuous one-way)
    Baud rate2400, 4800, 9600, 19200, 38400, 115200 bit/s
    Ethernet TCP/IPOption on request (OPZETTCPCLM)
    Humidity85%, non-condensing
    Storage temperature-30 to +80 °C
    Working temperature-20 to +60 °C
    Working temperature, legal-for-trade use-10 to +40 °C (type-approved instruments)
    ApprovalsOIML R76:2006 class III, 3 x 10000 divisions, 0.4 µV/VSI; UL Recognized component (US and Canada); Eurasian Customs Union; UKCA
    PC softwareFree Laumas Instrument Manager
    06 / 06Part number, options and FAQ

    Order code.

    Options on request (datasheet p.4): Ethernet TCP/IP (OPZETTCPCLM), alibi memory (OPZWALIBI) and a Posital inclinometer (POSTILTIX-ACS020). Ask us for availability.

    ProductOrder code
    Laumas CLM8inox — IP67 AISI 304 stainless steel box23117

    What is the protection rating?

    IP67, in an AISI 304 stainless steel box.

    How many cable glands are fitted?

    8+2 M16x1.5 cable glands and plugs.

    What is the working temperature for legal-for-trade use?

    -10 to +40 °C for type-approved instruments (OIML R76:2006 class III, 3 x 10000 divisions). The general working range is -20 to +60 °C.

    Is Ethernet included?

    No. Ethernet TCP/IP is an option on request (OPZETTCPCLM); the standard ports are RS485 and RS232.
