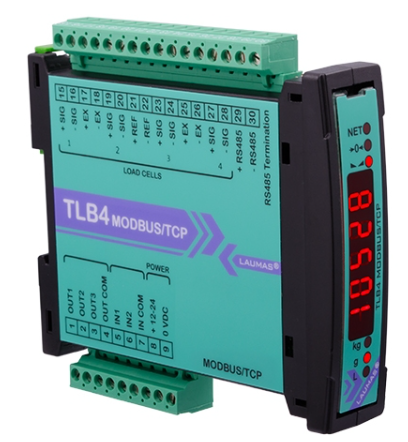

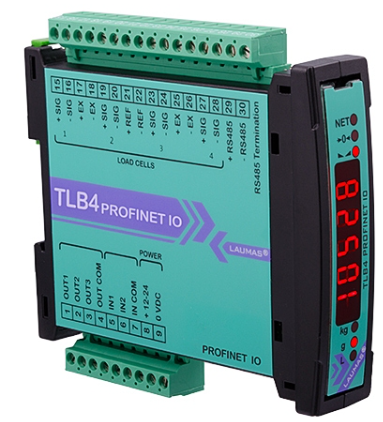

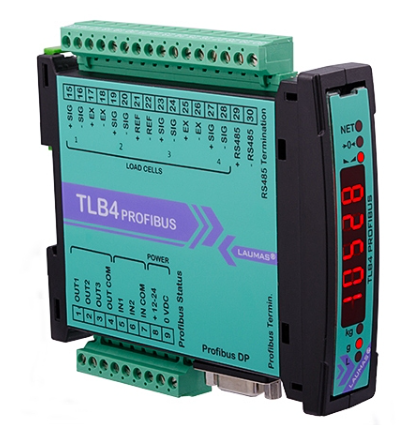

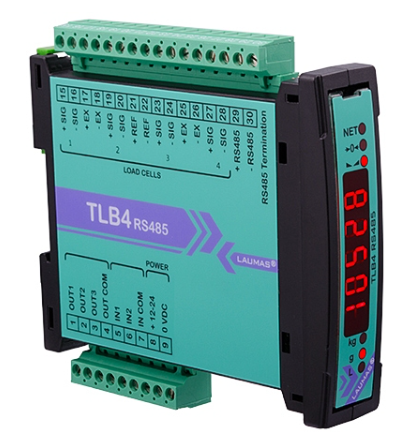

TLB4 Weight TransmitterLaumas TLB4 Multi-Channel Digital Weight Transmitter
SKU TLB4
13 interface versions; RS485; 12÷24 VDC
409.00
- Description
- Additional Information
- 01 / 02Digital Weight Transmitter
Laumas TLB4 digital weight transmitter family.
The Laumas TLB4 is a digital weight transmitter family. This page describes the family; use the table below to select the SKU your application requires.
02 / 02Technical dataSeries-wide catalog attributes.
Values that differ per SKU are listed in the table below and on each SKU's own page.
Channels 4 independent load-cell inputs Power supply 12-24 VDC +/-10%, 5 W Load cells Up to 16 x 350 ohm, 4/6-wire, 5 VDC/240 mA excitation A/D converter 4 channels, 24-bit (16,000,000 points), 4.8 kHz Measurement range +/-39 mV Usable load cell sensitivity +/-7 mV/V Linearity <0.01% full scale Thermal drift <0.0005% full scale/degC Display 6-digit semi-alphanumeric red LED, 8 mm height, +/-999999 range Relay outputs 3, max 115 VAC/150 mA Optoisolated digital inputs 2, 5-24 VDC PNP Enclosure Back-panel mounting on Omega/DIN rail, 115 x 26 x 120 mm Humidity 85% (condensate-free) Storage temperature -30 C to +80 C Working temperature -20 C to +60 C Legal-for-trade approval OIML R76:2006 Class III, 3x10,000 divisions, 0.25 uV/V*SI; OIML R61, R51 - WELMEC Guide 8.8:2017 (MID); UL Recognized component; NMI Trade Approved (Australia); New Zealand legal-for-trade use CAPACITY TABLEAvailable output/fieldbus options.
Output/Fieldbus Manufacturer part number SKU Price Modbus/TCP TLB4MODBUSTCP 23100 $650.00 RS485 TLB4RS485 23102 $350.00 CANopen TLB4CANOPEN 23103 $566.00 DeviceNet TLB4DEVICENET 23104 $566.00 CC-Link TLB4CCLINK 23105 $733.00 ProfiBus TLB4PROFIBUS 23106 $566.00 Profinet I/O TLB4PROFINETIO 23107 $733.00 Ethernet/IP TLB4ETHEIP 23108 $733.00 Ethernet TCP/IP TLB4ETHETCP 23112 $566.00 EtherCAT TLB4ETHERCAT 23109 $733.00 PowerLink TLB4POWERLINK 23110 $733.00 SERCOS III TLB4SERCOS 23111 $733.00 Analog 4-20mA/0-5-10 V TLB4 23101 $383.00 Talk to a WeightechUSA specialist.
Send the model and application. We will confirm which TLB4 SKU fits.
Email SalesView DatasheetCall +1 (954) 666-0877 × 305 Number of divisions ±999999 • 0.01 μV/d (with measurement range ±10 mV and sensitivity 2 mV/V) Digital filter 21 levels • 5÷600 Hz Input power supply 12÷24 VDC ±10%; 5 W Internal Battery -- Storage temp range -30 °C +80 °C Manufacturer Laumas Number of load cells up to 16 (350 Ω) - 4/6 wires • 5 VDC/240 mA Linearity - Analog output linearity (only for TLB4) <0.01% full scale • <0.01% full scale Thermal Drift Analog output thermal drift (only for TLB4) <0.0005% full scale/°C • <0.003% full scale/°C A/D Converter 4 channels - 24 bit (16000000 points) - 4.8 kHz Measurement range ±39 mV Usable load cells sensitivity ±7 mV/V Conversions per second 600/s Display range ±999999 Decimals 0÷4 • x1 x2 x5 x10 x20 x50 x100 Relay outputs 3 - max 115 VAC/150 mA Optoisolated digital inputs 2 - 5÷24 VDC PNP Serial ports RS485 Baud rate 2400, 4800, 9600, 19200, 38400, 115200 (bit/s) Optoisolated analog output (only for TLB4) 16 bit = 65535 divisions. 0÷20 mA; 4÷20 mA (up to 300 Ω) 0÷10 V; 0÷5 V; ±10 V; ±5 V (min 10 kΩ) Humidity 85% Working temp range -20 °C +60 °C Short name TLB4 Weight Transmitter Hero chips 13 interface versions; RS485; 12÷24 VDC
